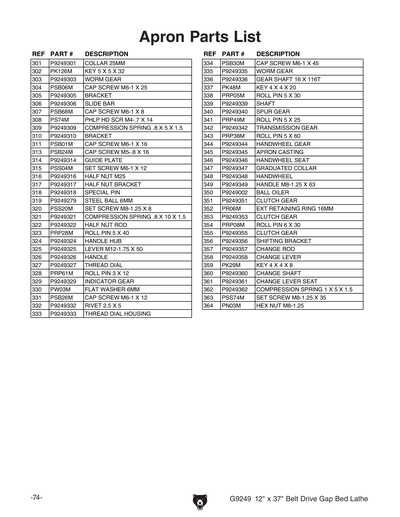

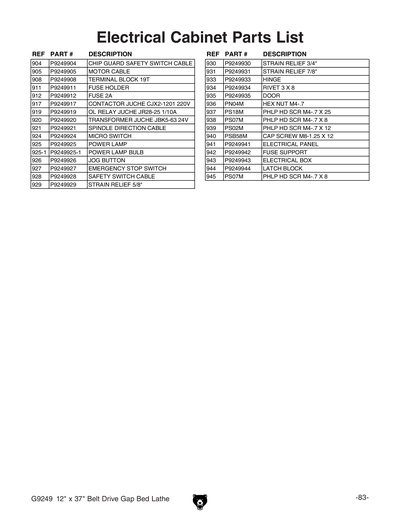

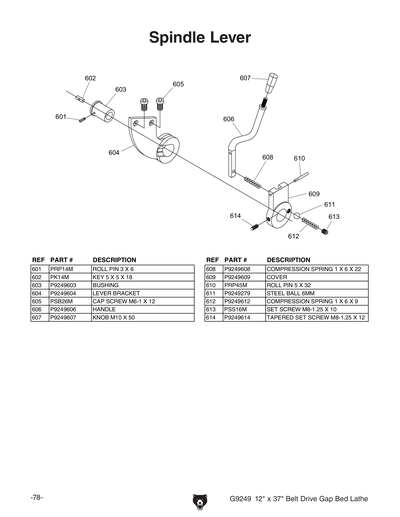

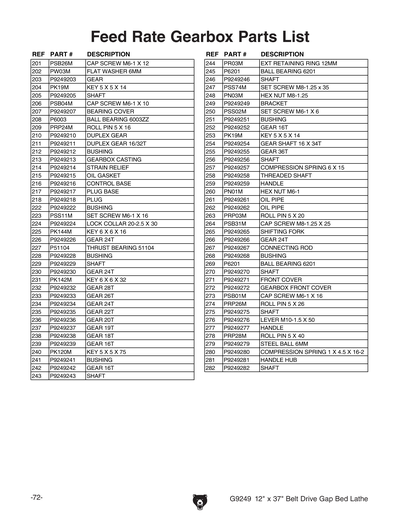

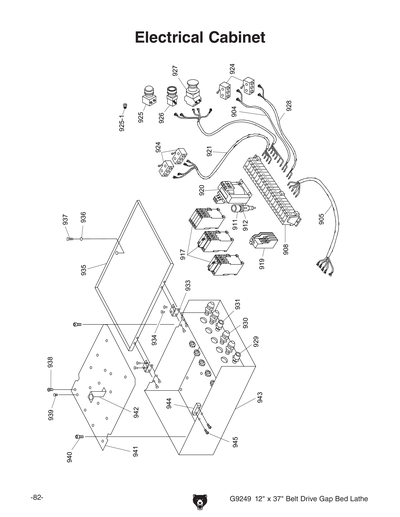

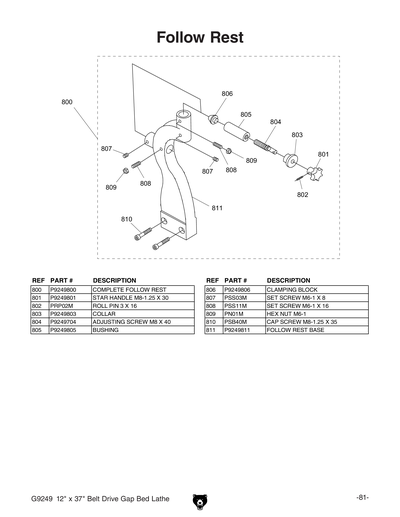

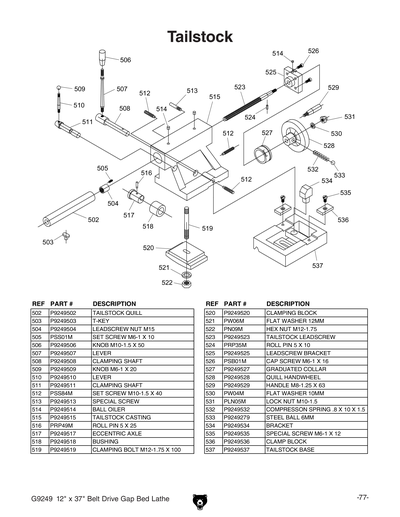

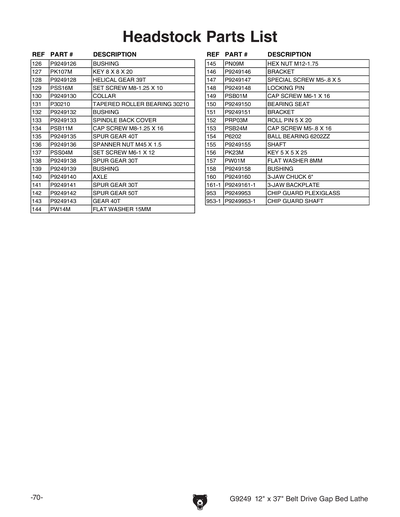

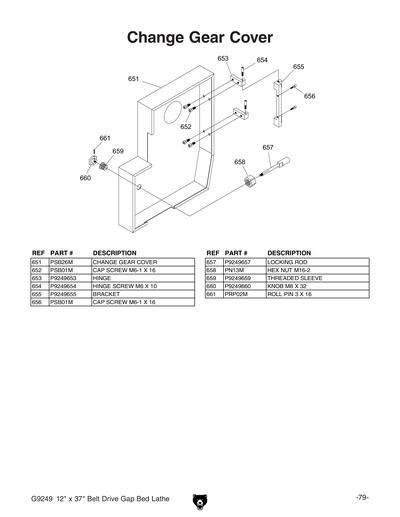

G9249 APRON DIAGRAM

Ref # Part # Description Price Qty
301 P9249301 COLLAR 25MM $5.00
302 P9249302 ***USE PK126M*** $1.25
303 P9249303 WORM GEAR $13.00
304 P9249304 SCREW M6 X 25 $1.25
305 P9249305 SEAT FRAME $17.25
306 P9249306 SAFETY PIECE $1.50
307 P9249307 ***USE PSB68M*** $1.25
308 P9249308 ***USE PS74M*** $1.25
309 P9249309 COMPRESSION SPRING .8 X 5 X 1.5 $1.00
310 P9249310 BRACKET $1.00
311 P9249311 ***USE PSB01M*** $1.25
312 P9249312 SCREW M6 X 8 $1.00
313 P9249313 ***USE PSB24M*** $1.00
314 P9249314 GUIDE PLATE $13.00
315 P9249315 ***USE PSS04M*** $1.25
316 P9249316 HALF NUT M25 $48.75
317 P9249317 HALF NUT SEAT $24.50
318 P9249318 SPECIAL PIN $2.00
319 P9249319 ***USE P9249279*** $1.25
320 P9249320 ***USE PSS20M*** $1.25
321 P9249321 COMPRESSION SPRING .8 X 10 X 1.5 $1.00
322 P9249322 HALF NUT ROD $16.25
323 PRP28M ROLL PIN 5 X 40 $2.50
324 P9249324 KNOB $9.75
325 P9249325 LEVER M12-1.75 X 50 $1.00
326 P9249326 HANDLE $5.00
327 P9249327 THREAD DIAL $28.50
328 PRP61M ROLL PIN 3 X 12 $2.00
329 P9249329 INDICATOR GEAR $14.00
330 P9249330 ***USE PW03M*** $3.25
331 P9249331 ***USE PSB26M*** $1.25
332 P9249332 RIVET 2.5 X 5 $1.00
333 P9249333 THREAD DIAL $26.00
334 P9249334 ***USE PSB30M*** $1.25
335 P9249335 WORM $29.25
336 P9249336 GEAR SHAFT 16 X 116T $26.00
337 PK48M KEY 4 X 4 X 20 $1.00
338 PRP05M ROLL PIN 5 X 30 $1.00
339 P9249339 SHAFT $14.00
340 P9249340 SPUR GEAR $52.00
341 PRP49M ROLL PIN 5 X 25 $1.00
342 P9249342 TRANSMISSION GEAR $29.25
343 P9249343 ***USE PRP38M*** $1.25
344 P9249344 HANDWHEEL GEAR $24.50
345 P9249345 APRON CASTING $337.50
346 P9249346 HANDWHEEL SEAT $27.75
347 P9249347 GRADUATED COLLAR $29.25
348 P9249348 HANDWHEEL $32.50
349 P9249349 HANDLE M8-1.25 X 63 $4.00
350 P9249002 BALL OILER $1.00
351 P9249351 CLUTCH GEAR $24.50
352 P9249352 WASHER 16 $1.25
353 P9249353 CLUTCH GEAR $36.75
354 PRP08M ROLL PIN 6 X 30 $1.00
355 P9249355 CLUTCH GEAR $39.00
356 P9249356 SHIFTING BRACKET $5.00
357 P9249357 CHANGE ROD $22.00
358 P9249358 CHANGE LEVER $9.00
359 PK29M KEY 4 X 4 X 8 $1.00
360 P9249360 CHANGE SHAFT $8.50
361 P9249361 CHANGE LEVER SEAT $26.00
362 P9249362 COMPRESSION SPRING 1 X 5 X 1.5 $1.00
363 P9249363 ***USE PSS74M*** $2.00
364 P9249364 ***USE PN03M*** $2.00
