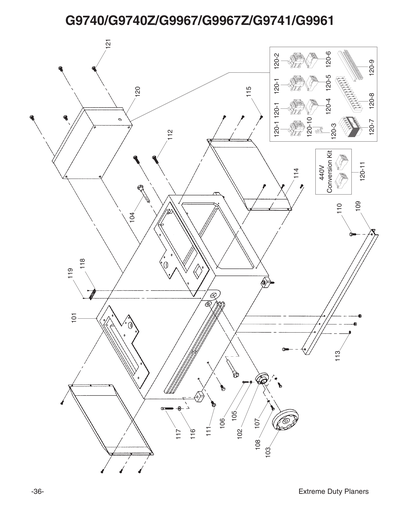

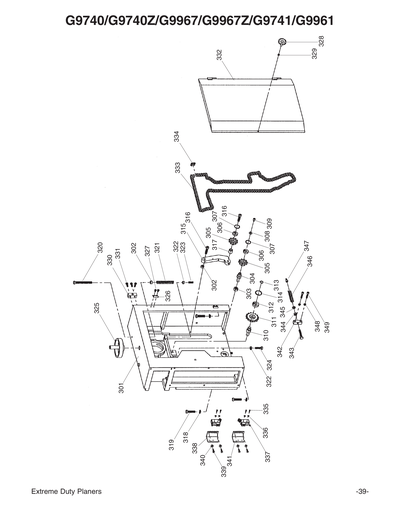

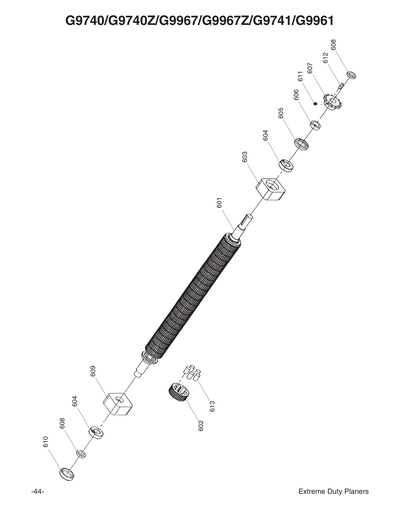

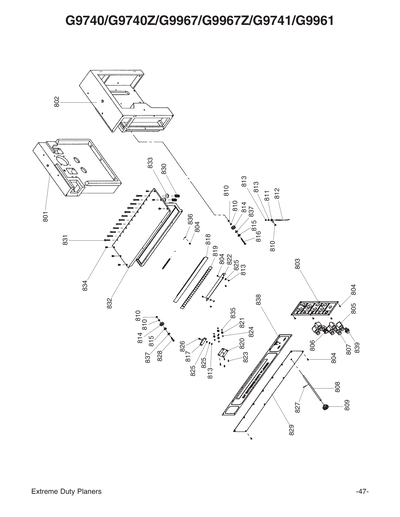

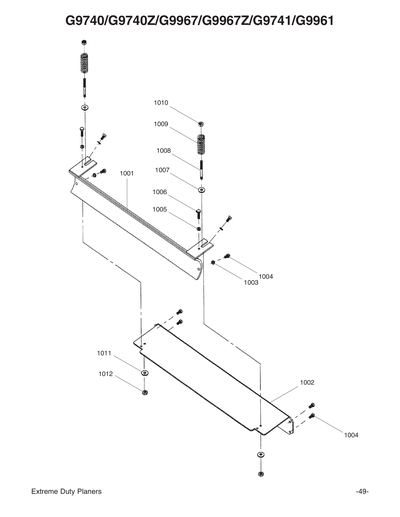

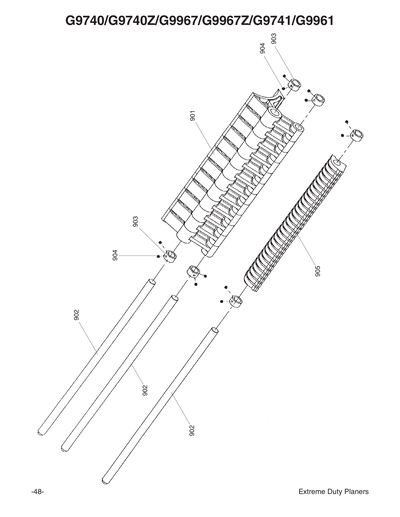

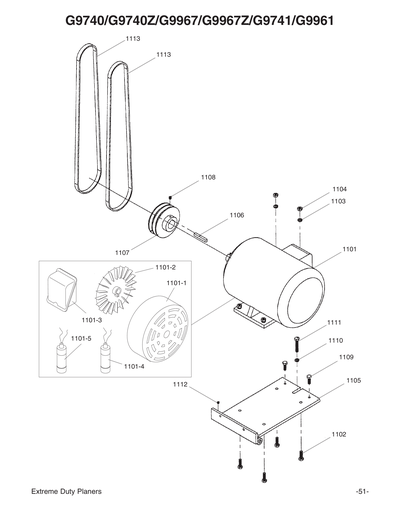

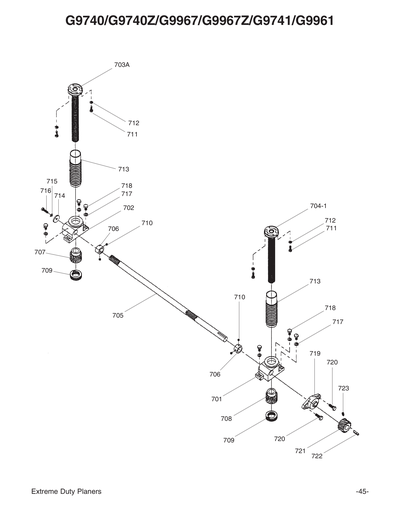

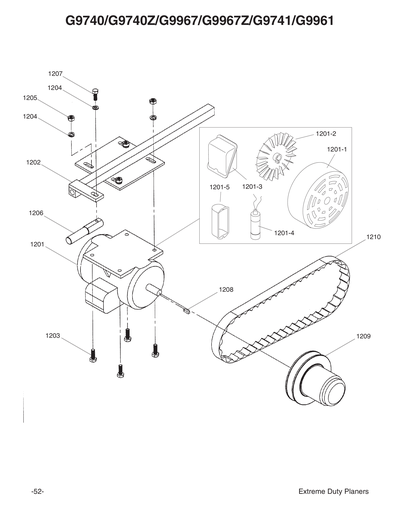

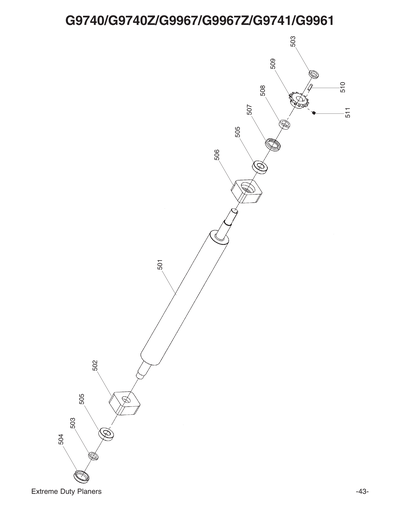

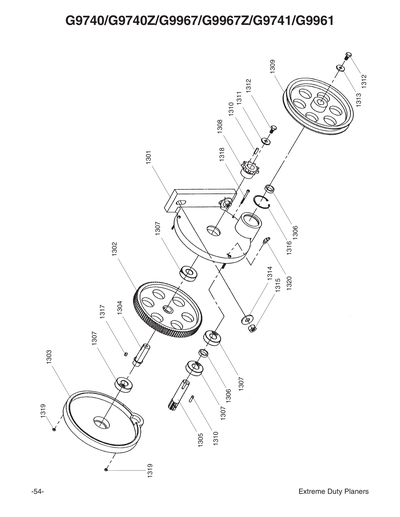

G9740 BASE DIAGRAM

While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

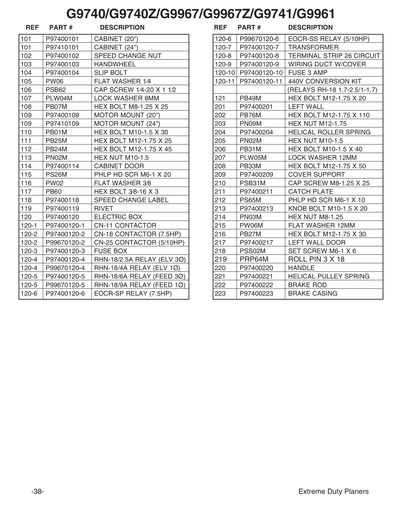

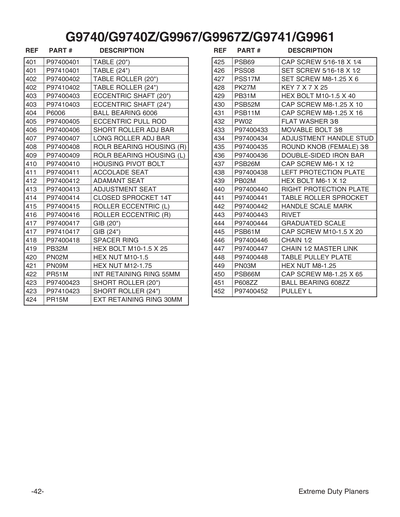

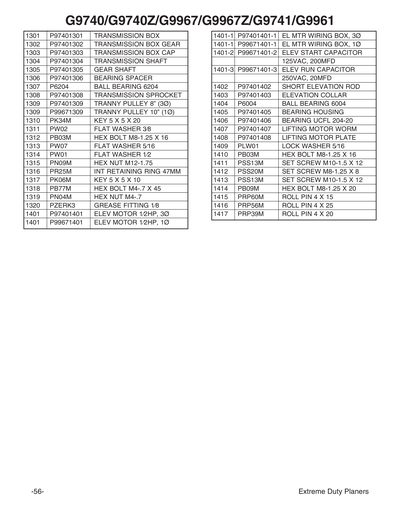

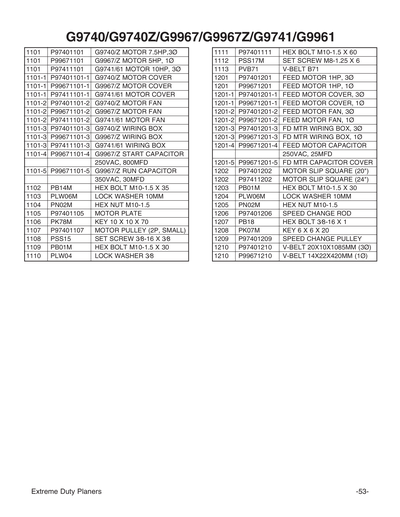

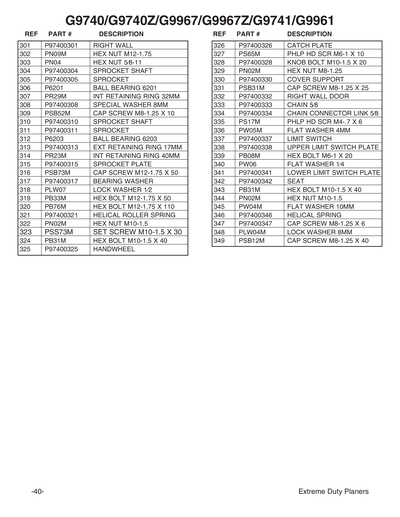

Ref #	Part #	Description	Price	Qty

101	P97400101	Cabinet 20" Model	$669.75
102	P97400102	SPEED CHANGE NUT 1 3/8"-16	$14.00
103	P97400103	HANDWHEEL	$28.50
104	P97400104	SLIP BOLT M20 - 2.5 X 20	$8.25
105	PW06	Flat Washer 1/4 In	$1.25
106	PSB62	*use Pcap62*	$1.00
107	PLW04M	LOCK WASHER 8MM	$1.00
108	PB07M	HEX BOLT M8-1.25 X 25	$1.00
109	P97400109	Motor Mount	$17.50
110	PB01M	HEX BOLT M10-1.5 X 30	$1.00
111	PB25M	HEX BOLT M12-1.75 X 25	$1.00
112	PB24M	HEX BOLT M12-1.75 X 45	$1.00
113	PN02M	HEX NUT M10-1.5	$1.00
114	P97400114	CABINET DOOR	$39.00
115	PS26M	PHLP HD SCR M6-1 X 20	$1.00
116	PW02	FLAT WASHER 3/8	$1.00
117	PB60	HEX BOLT 3/8-16 X 3	$1.00
118	P97400118	SPEED CHANGE LEVER	$1.00
119	P97400119	RIVET 3 X 40	$1.00
120	P97400120	ELECTRIC BOX	$121.25
120-1	P97400120-1	Contactor Elv 110v Cn-11 Teco	$33.50
120-1	P97400120-10	Fuse 3a	$7.50
120-1	P97400120-11	*USE P97400120-11A*	$120.00
120-2	P97400120-2	Contactor 110v Cn-18 Teco	$107.25
120-3	P97400120-3	FUSE BOX	$14.75
120-4	P97400120-4	*USE P97400120-4A*	$52.50
120-5	P97400120-5	RELAY RHN-18A 4/6A TECO	$52.50
120-6	P97400120-6	Relay 7.5hp 5/25a Eocr-sp-20-220 Teco	$169.75
120-7	P97400120-7	TRANSFORMER	$152.50
120-8	P97400120-8	TERMINAL STRIP 26 CIRCUIT	$31.75
120-9	P97400120-9	WIRING DUCT WITH COVER	$27.00
121	PB49M	HEX BOLT M12-1.75 X 20	$1.50

Ref #	Part #	Description	Price	Qty
