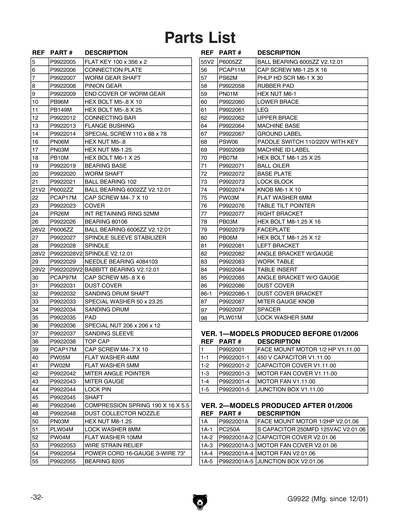

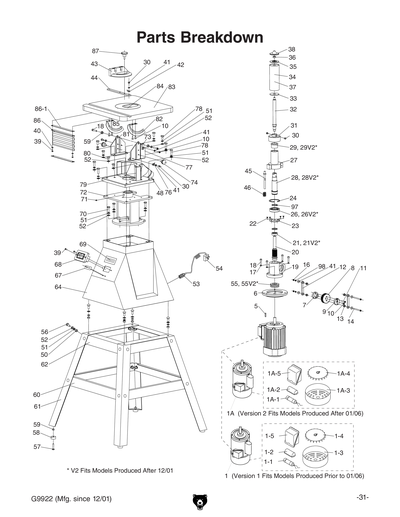

G9922 MAIN DIAGRAM

Ref # Part # Description Price Qty
1 P9922001 FACE MOUNT MOTOR 1/2 HP V1.11.00 $81.25
1 P9922001 FACE MOUNT MOTOR 1/2 HP V1.11.00 $81.25
1-1 P9922001-1 Capacitor 450V V1.11.00 $80.00
1-2 P9922001-2 IOUF 450V CAPACITOR $3.50
1-3 P9922001-3 Motor Fan Cover V1.11.00 $3.50
1-4 P9922001-4 Motor Fan V1.11.00 $11.00
1-5 P9922001-5 JUNCTION BOX V1.11.00 $6.50
1A P9922001A FACE MOUNT MOTOR 1/2HP V2.01.06 $99.00
1A-2 P9922001A-2 CAPACITOR COVER V2.01.06 $3.50
1A-3 P9922001A-3 MOTOR FAN COVER V2.01.06 $3.50
1A-4 P9922001A-4 MOTOR FAN V2.01.06 $11.00
1A-5 P9922001A-5 JUNCTION BOX V2.01.06 $6.50
2 P9922002 GROUND RING CONNECTOR $1.00
3 P9922003 POWER FORK CONNECTOR $1.00
4 P9922004 PLASTIC CONNECTOR SLEEVE $1.00
5 P9922005 FLAT KEY 100 X 356 X 2 $1.00
5 P9922005 FLAT KEY 100 X 356 X 2 $1.00
6 P9922006 CONNECTION PLATE $7.50
6 P9922006 CONNECTION PLATE $7.50
7 P9922007 WORM GEAR SHAFT $3.50
7 P9922007 WORM GEAR SHAFT $3.50
8 P9922008 WORM GEAR $15.50
8 P9922008 WORM GEAR $15.50
9 P9922009 END COVER OF WORM GEAR $3.00
9 P9922009 END COVER OF WORM GEAR $3.00
10 P9922010 ***use Pb96m*** $1.25
10 P9922010 ***use Pb96m*** $1.25
11 P9922011 ***use Pb94m*** $1.25
11 P9922011 ***use Pb94m*** $1.25
12 P9922012 CONNECTING BAR $2.00
12 P9922012 CONNECTING BAR $2.00
13 P9922013 ADOPTING SLEEVE $1.50
13 P9922013 ADOPTING SLEEVE $1.50
14 P9922014 Special Screw 110 X 88 X 78 $3.00
14 P9922014 Special Screw 110 X 88 X 78 $3.00
15 PW02M FLAT WASHER 5MM $1.00
16 PN06M HEX NUT M5-.8 $1.00
17 PN03M HEX NUT M8-1.25 $1.00
18 PB10M HEX BOLT M6-1 X 25 $1.00
19 P9922019 BEARING BASE $14.50
19 P9922019 BEARING BASE $14.50
20 P9922020 WORM SHAFT $15.00
20 P9922020 WORM SHAFT $15.00
21 P9922021 BALL BEARING 102 $2.50
21 P9922021 BALL BEARING 102 $2.50
22 PSB17M CAP SCREW M4-.7 X 10 $1.00
23 P9922023 COVER $1.50
23 P9922023 COVER $1.50
24 P9922024 ***USE PR26M*** $0.75
24 PR26M INT RETAINING RING 52MM $2.00
25 PR15M EXT RETAINING RING 30MM $1.00
26 P9922026 BEARING 80106 $21.00
26 P9922026 BEARING 80106 $21.00
27 P9922027 Spindle Sleeve Stabilizer $10.50
27 P9922027 Spindle Sleeve Stabilizer $10.50
28 P9922028 Spindle $15.50
28 P9922028 Spindle $15.50
29 P9922029 NEEDLE BEARING 4084103 $2.50
29 P9922029 NEEDLE BEARING 4084103 $2.50
30 P9922030 ***use Psb97m*** $1.25
30 P9922030 ***use Psb97m*** $1.25
31 P9922031 DUST COVER $1.00
31 P9922031 DUST COVER $1.00
32 P9922032 Sanding Drum Shaft $5.50
32 P9922032 Sanding Drum Shaft $5.50
33 P9922033 Special Washer 50 X 23.25 $1.00
33 P9922033 Special Washer 50 X 23.25 $1.00
34 P9922034 SANDING DRUM $10.50
34 P9922034 SANDING DRUM $10.50
35 P9922035 PAD $1.00
35 P9922035 PAD $1.00
36 P9922036 Special Nut 206 X 206 X 12 $1.00
36 P9922036 Special Nut 206 X 206 X 12 $1.00
37 P9922037 SANDING SLEEVE $4.00
37 P9922037 SANDING SLEEVE $4.00
38 P9922038 TOP CAP $7.00
38 P9922038 TOP CAP $7.00
39 P9922039 ***USE PSB17M*** $2.00
39 PSB17M CAP SCREW M4-.7 X 10 $1.00
40 PW05M FLAT WASHER 4MM $1.00
40 P9922040 ***USE PW05M*** $40.00
41 PW02M FLAT WASHER 5MM $1.00
42 P9922042 Miter Angle Pointer $1.00
42 P9922042 Miter Angle Pointer $1.00
43 P9922043 MITER GAUGE $3.00
43 P9922043 MITER GAUGE $3.00
44 P9922044 LOCK PIN $1.50
44 P9922044 LOCK PIN $1.50
45 P9922045 SHAFT $3.00
45 P9922045 SHAFT $3.00
46 P9922046 SPRING 190 x 16 x 5.5 $1.00
46 P9922046 SPRING 190 x 16 x 5.5 $1.00
47 PN03M HEX NUT M8-1.25 $1.00
48 P9922048 DUST COLLECTOR NOZZLE $3.50
48 P9922048 DUST COLLECTOR NOZZLE $3.50
49 P9922049 RUBBER PAD $23.50
50 PN03M HEX NUT M8-1.25 $1.00
51 PW01M FLAT WASHER 8MM $1.00
52 PW01M FLAT WASHER 8MM $1.00
53 PSW04-1 WIRE STRAIN RELIEF $1.00
53 P9922053 *discd*wire Strain Relief $1.00
54 P9922054 *discd*power Cord 16-gauge 3-wire 73" $3.00
54 PWRCRD110L POWER CORD 16-GAUGE 3-WIRE 73"-LENGTH $18.50
55 P9922055 BEARING 8205 $4.00
55 P9922055 BEARING 8205 $4.00
56 PSB11M CAP SCREW M8-1.25 X 16 $1.00
57 PB29M HEX BOLT M6-1 X 30 $1.00
58 P9922058 RUBBER PAD $3.00
58 P9922058 RUBBER PAD $3.00
59 PN01M HEX NUT M6-1 $1.00
60 P9922060 Lower Brace $39.00
60 P9922060 Lower Brace $39.00
61 P9922061 SUPPORTING BEAM $4.50
61 P9922061 SUPPORTING BEAM $4.50
62 P9922062 Upper Brace $3.00
62 P9922062 Upper Brace $3.00
63 P9922063 ***USE P9922062*** $4.00
64 P9922064 MACHINE BASE $39.00
64 P9922064 MACHINE BASE $39.00
65 PW04M FLAT WASHER 10MM $1.00
66 PW05M FLAT WASHER 4MM $1.00
67 P9922067 Ground Label $2.50
67 P9922067 Ground Label $2.50
68 P9922068 *discd*paddle Switch 110/220v With Key $3.50
68 PSW06 PADDLE SWITCH 110/220V WITH KEY $4.00
69 P9922069 Machine Id Label $2.50
69 P9922069 Machine Id Label $2.50
70 P9922070 ***USE PB07M*** $35.00
70 PB07M HEX BOLT M8-1.25 X 25 $1.00
71 P9922071 Ball Oiler $1.00
71 P9922071 Ball Oiler $1.00
72 P9922072 BRACKET $23.00
72 P9922072 BRACKET $23.00
73 P9922073 LOCK BLOCK $1.00
73 P9922073 LOCK BLOCK $1.00
74 P9922074 Knob M6-1 X 10 $1.50
74 P9922074 Knob M6-1 X 10 $1.50
75 P9922075 ***USE PW03M*** $35.00
75 PW03M FLAT WASHER 6MM $1.00
76 P9922076 Table Tilt Pointer $1.00
76 P9922076 Table Tilt Pointer $1.00
77 P9922077 BRACKET $2.50
77 P9922077 BRACKET $2.50
78 PB03M HEX BOLT M8-1.25 X 16 $1.00
79 P9922079 FACEPLATE $2.50
79 P9922079 FACEPLATE $2.50
80 PB06M HEX BOLT M8-1.25 X 12 $2.00
81 P9922081 Bracket $2.50
81 P9922081 Bracket $2.50
82 P9922082 ANGLE BRACKET W/GAUGE $2.00
82 P9922082 ANGLE BRACKET W/GAUGE $2.00
83 P9922083 WORK TABLE $36.50
83 P9922083 WORK TABLE $36.50
84 P9922084 TABLE INSERT $1.50
84 P9922084 TABLE INSERT $1.50
85 P9922085 ANGLE BRACKET W/O GAUGE $2.50
85 P9922085 ANGLE BRACKET W/O GAUGE $2.50
86 P9922086 DUST COVER $5.00
86 P9922086 DUST COVER $5.00
86-1 P9922086-1 DUST COVER BRACKET $1.00
87 P9922087 *discd*miter Gauge Knob $1.00
87 P9922087 *discd*miter Gauge Knob $1.00
97 P9922097 SPACER $1.00
Ref # Part # Description Price Qty
