Enter the quantity next to the part you are ordering and press the "Add To Cart" button. If you cannot locate your part below, click on the appropriate diagram at the top of the page or contact our tech support department at techsupport@grizzly.com or 570-546-9663.

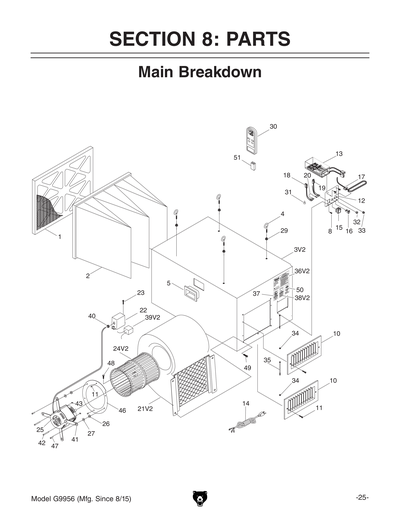

G9956 MAIN DIAGRAM

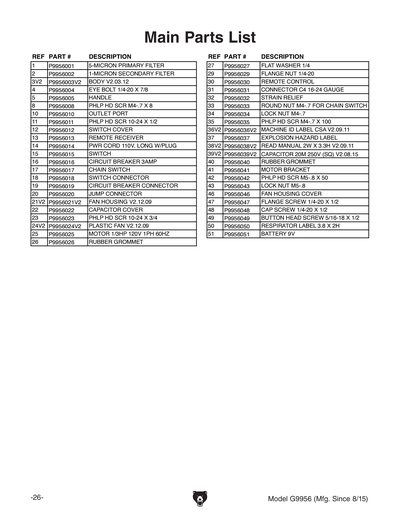

Ref #	Part #	Description	Price	Qty

1	H2452	5-Micron Disposable Primary Filter (G9956)	$10.95
2	H2451	1-Micron Washable Secondary Filter (G9956)	$51.95
3	P9956003	BODY	$146.75
4	P9956004	EYE BOLT 1/4-20 X 7/8	$1.00
5	P9956005	HANDLE	$3.00
6	P9956006	OUTLET COVER	$71.50
8	PS07M	PHLP HD SCR M4-.7 X 8	$1.00
10	P9956010	OUTLET PORT	$6.25
11	PS01	PHLP HD SCR 10-24 X 1/2	$1.00
12	P9956012	SWITCH COVER	$3.25
13	P9956013	REMOTE RECEIVER	$103.50
14	PWRCRD110L	POWER CORD 16G X 3W 73"L	$21.25
15	P9956015	SWITCH	$4.25
16	P9956016	CIRCUIT BREAKER 3AMP	$4.25
17	P9956017	CHAIN SWITCH	$8.00
18	P9956018	SWITCH CONNECTOR	$2.00
19	P9956019	CIRCUIT BREAKER CONNECTOR	$3.25
20	P9956020	JUMP CONNECTOR	$1.00
21	P9956021V2	FAN HOUSING V2.12.09	$133.75
22	P9956022	CONDENSER COVER	$1.75
23	PS08	PHLP HD SCR 10-24 X 3/4	$1.00
25	P9956025	MOTOR 1/3HP	$101.00
26	P9956026	RUBBER GROMMET	$1.00
27	PW06	FLAT WASHER 1/4	$1.25
29	PFN01	FLANGE NUT 1/4-20	$1.00
30	P9956030	REMOTE CONTROL	$53.50
31	P9956031	CONNECTOR C4 16-24 GAUGE	$1.00
32	P9956032	STRAIN RELIEF	$1.25
33	P9956033	ROUND NUT M4-.7 FOR CHAIN SWITCH	$1.00
34	PLN01M	LOCK NUT M4-.7	$1.00
35	P9956035	PHLP HD SCR M4-.7 X 100	$1.00
36	P9956036	MACHINE ID/WARNING LABEL	$22.00
37	P9956037	SPARKS/FLAMES LABEL	$1.25
38	P9956038	FUMES WARNING LABEL	$1.25
39	PC020A	R CAPACITOR 20M 250V 1-3/8 X 2	$11.00
40	P9956040	RUBBER GROMMET	$1.00
41	P9956041	MOTOR BRACKET	$1.00
42	PS102M	PHLP HD SCR M5-.8 X 50	$1.00
43	PLN02M	LOCK NUT M5-.8	$1.00
46	P9956046	FAN HOUSING COVER	$13.25
48	PCAP04	CAP SCREW 1/4-20 X 1/2	$1.00

Ref #	Part #	Description	Price	Qty
