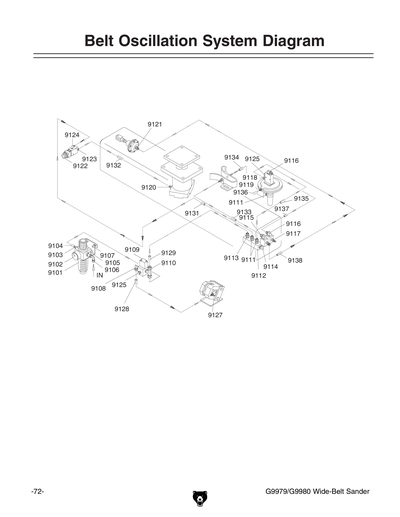

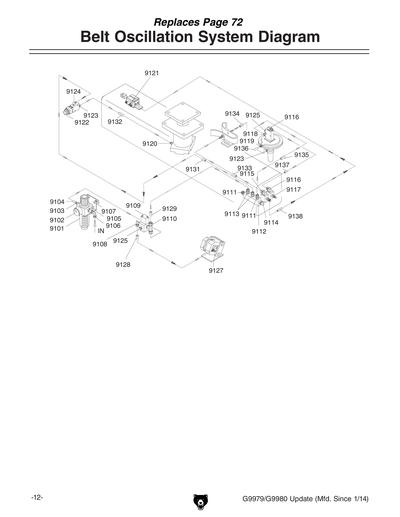

G9979 AIR SYSTEM DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.

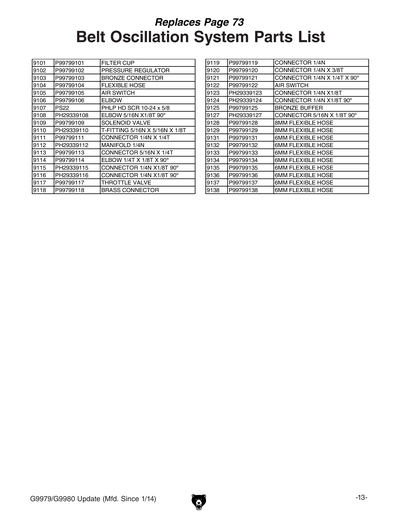

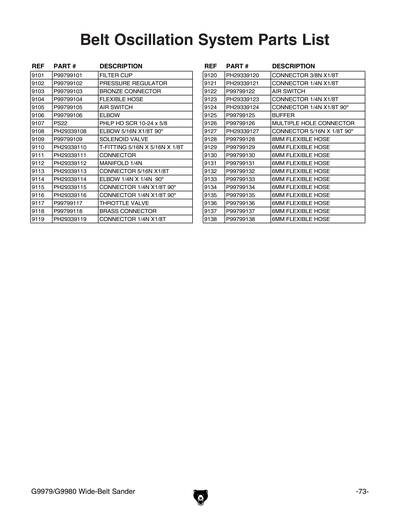

Ref # Part # Description Price Qty
9101 P99799101 FILTER CUP $114.75
9102 P99799102 PRESSURE REGULATOR $16.75
9103 P99799103 BRONZE CONNECTOR $3.75
9104 P99799104 FLEXIBLE HOSE $3.75
9105 P99799105 AIR SWITCH $14.25
9106 P99799106 ELBOW $3.75
9107 PS22 Phlp Hd Scr 10-24 X 5/8 $1.00
9108 PH29339108 Elbow 5/16n X 1/8t 90deg $3.75
9109 P99799109 SOLENOID VALVE $70.25
9110 PH29339110 T-FITTING 5/16N X 5/16N X 1/8T $3.75
9111 PH29339111 CONNECTOR $3.75
9112 PH29339112 MANIFOLD 1/4N $7.25
9113 PH29339113 CONNECTOR 5/16N X1/8T $3.75
9114 PH29339114 Elbow 1/4n X 1/4n 90deg $3.75
9115 PH29339115 Connector 1/4n X 1/8t 90deg $3.75
9116 PH29339116 Connector 1/4n X 1/8t 90deg $3.75
9117 P99799117 THROTTLE VALVE $31.75
9118 P99799118 BRASS CONNECTOR $3.75
9119 PH29339119 CONNECTOR 1/4N X1/8T $3.75
9120 PH29339120 CONNECTOR 3/8N X1/8T $3.75
9121 PH29339121 CONNECTOR 1/4N X1/8T $3.75
9122 P99799122 AIR SWITCH $56.25
9123 PH29339123 CONNECTOR 1/4N X1/8T $3.75
9124 PH29339124 Connector 1/4n X 1/8t 90deg $3.75
9125 P99799125 BUFFER $7.25
9126 P99799126 MULTIPLE HOLE CONNECTOR $7.25
9127 PH29339127 Connector 5/16n X 1/8t 90deg $3.75
9128 P99799128 Flexible Hose 8mm $3.75
9129 P99799129 Flexible Hose 6mm $3.75
9130 P99799130 Flexible Hose 6mm $3.75
9131 P99799131 Flexible Hose 6mm $3.75
9132 P99799132 Flexible Hose 6mm $3.75
9133 P99799133 Flexible Hose 6mm $3.75
9134 P99799134 Flexible Hose 6mm $3.75
9135 P99799135 Flexible Hose 6mm $3.75
9136 P99799136 Flexible Hose 6mm $3.75
9137 P99799137 Flexible Hose 6mm $3.75
9138 P99799138 Flexible Hose 6mm $3.75
Ref # Part # Description Price Qty
