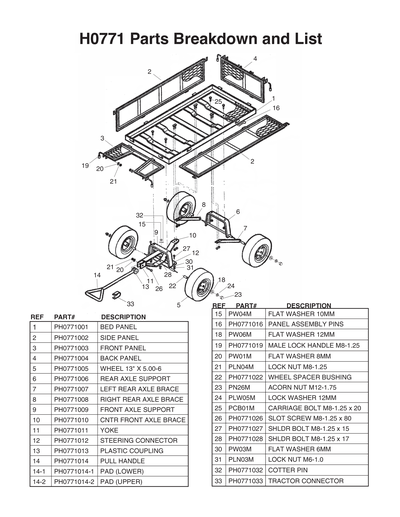

H0771 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.
Ref # Part # Description Price Qty
1 PH0771001 BED PANEL $40.75
2 PH0771002 SIDE PANEL $16.25
3 PH0771003 FRONT PANEL $3.00
4 PH0771004 BACK PANEL $3.00
5 PH0771005 WHEEL 13" X 5.00-6 HUB 1-3/4"L V1.07.02 $14.75
6 PH0771006 REAR AXLE SUPPORT $1.25
7 PH0771007 Axle Brace Left Rear $1.00
8 PH0771008 Axle Brace Right Rear $1.00
9 PH0771009 FRONT AXLE SUPPORT $1.25
10 PH0771010 CENTER FRONT AXLE BRACE $1.00
11 PH0771011 YOKE $1.00
12 PH0771012 STEERING CONNECTOR $1.50
13 PH0771013 PLASTIC COUPLING $1.00
14 PH0771014 PULL HANDLE $2.50
14-1 PH0771014-1 Pad For Handle Lower $2.50
14-2 PH0771014-2 Pad For Handle Upper $1.00
15 PW04M FLAT WASHER 10MM $1.00
16 PH0771016 PANEL ASSEMBLY PINS $1.00
18 PW06M FLAT WASHER 12MM $1.00
19 PH0771019 MALE LOCK HANDLE M8-1.25 $2.00
20 PW01M FLAT WASHER 8MM $1.00
21 PLN04M LOCK NUT M8-1.25 $1.25
22 PH0771022 WHEEL SPACER BUSHING $1.00
23 PN26M ACORN NUT M12-1.75 $1.25
24 PLW05M LOCK WASHER 12MM $1.00
25 PCB01M CARRIAGE BOLT M8-1.25 X 20 $1.00
26 PH0771026 SLOT SCREW M8-1.25 X 80 $1.00
27 PH0771027 ***USE PB85M*** $1.00
28 PH0771028 ***USE PB85M*** $1.00
30 PW03M FLAT WASHER 6MM $1.00
31 PLN03M LOCK NUT M6-1 $1.00
32 PH0771032 COTTER PIN $1.00
33 PH0771033 TRACTOR CONNECTOR $1.00
Ref # Part # Description Price Qty
