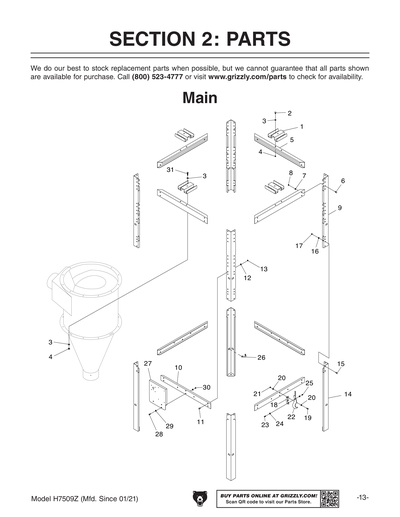

H7509 MAIN DIAGRAM

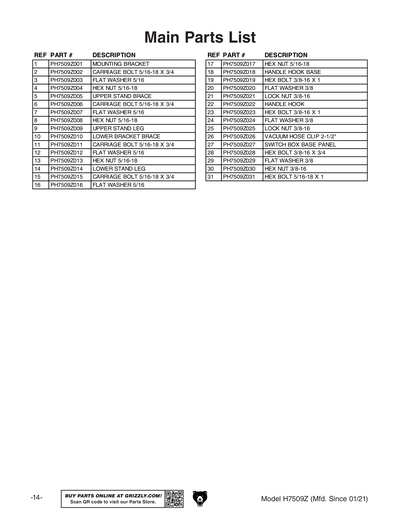

Ref #	Part #	Description	Price	Qty

1	PH7509001	MOUNTING BRACKET	$15.50
2	PB03	HEX BOLT 5/16-18 X 1	$1.00
3	PW07	FLAT WASHER 5/16	$1.25
4	PLN03	LOCK NUT 5/16-18	$1.00
5	PB21	HEX BOLT 3/8-16 X 3/4	$1.25
6	PW02	FLAT WASHER 3/8	$1.00
7	PLN01	LOCK NUT 3/8-16	$1.00
8	PH7499008	UPPER STAND BRACE	$36.00
9V2	PH7499009V2	UPPER STAND LEG V2.07.10	$35.25
13	PH7499013	STAND BRACE LOWER V1	$31.25
17V2	PH7499017V2	LOWER STAND LEG V2.07.10	$49.25
21	PH7509021	STAND SWITCH BRACKET V1	$16.50
22	PN08	HEX NUT 3/8-16	$1.25
23	PH7499023	VACUUM HOSE CLIP 2-1/2"	$1.00
