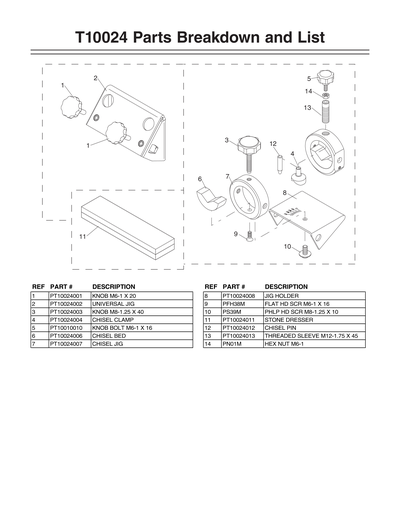

T10024 MAIN DIAGRAM


While we are flattered that many other manufacturers refer their customers to Grizzly for parts, our goal is to try and have a ready supply for Grizzly brand machines. To that extent, we are unable to measure parts to see if they will fit other brands. A 15% restocking fee may apply for returned parts.
Ref # Part # Description Price Qty
1 PT10024001 KNOB M6-1 X 20 $1.50
2 PT10024002 UNIVERSAL JIG $21.00
3 PT10024003 KNOB M8-1.25 X 40 $1.50
4 PT10024004 CHISEL CLAMP $1.50
5 PT10024005 ***USE PT10010010*** $2.00
6 PT10024006 CHISEL BED $2.25
7 PT10024007 CHISEL JIG $24.00
8 PT10024008 JIG HOLDER $19.00
9 PFH38M FLAT HD SCR M6-1 X 16 $1.00
10 PS39M PHLP HD SCR M8-1.25 X 10 $1.00
11 PT10024011 STONE DRESSER $15.00
