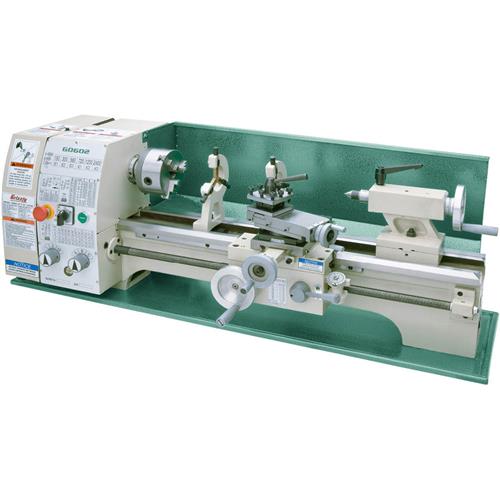

Grizzly G0602 - 10" x 22" Bench Top Metal Lathe

Our 10" x 22" Bench Lathe sports generous capacity, a lot of thread ranges, a wider bed and a larger chucks. Yet, it costs only a little more than our G4000. With features like a 1" spindle bore, 3/4"-12 TPI lead screw & an MT#3 tailstock you'll be able to turn some surprisingly hefty projects?and a few heads! If you are thinking of making parts for models, engines or even for repairs around the home or shop, take a good look at this lathe & the specs below.

Specifications:

• Swing over bed: 9-1/2"
• Swing over cross slide: 6-1/8"
• Distance between centers: 22"
• Spindle bore: 1" (25mm)
• Spindle thread: 1-3/4" x 8 TPI
• Spindle taper: MT #4
• Motor: 1 HP, 110V, single-phase, 13.6A
• Number of speeds: 6
• Speed range: 150, 300, 560, 720, 1200, 2400 RPM
• Leadscrew: 3/4"?12 TPI
• Compound travel: 3-1/2"
• Cross slide travel: 6-1/2"
• Carriage travel: 18-1/2"
• Maximum tool size: 1/2"
• Tailstock quill travel: 2-1/2"
• Tailstock taper: MT#3
• Number of longitudinal feeds: 9
• Range of longitudinal feeds: 0.0023?0.013 IPR
• Number of inch threads: 33
• Range of inch threads: 8?72 TPI
• Number of metric threads: 26
• Range of metric threads: 0.25?3.5mm
• Overall dimensions: 46" L x 22" W x 16-5/8" H
• Approximate shipping weight: 432 lbs.

Standard Equipment:

• 5" 3-Jaw chuck with two sets of jaws
• 6-1/2" 4-Jaw chuck with reversible jaws
• 8" Faceplate
• Steady rest with 1/4"?2" capacity
• Follow rest with 1/4"?2" capacity
• MT #3 dead center
• 4-Way tool post
• Chip tray and backsplash
• Hardened & ground V-way bed
• Oil-bath gearbox
• Toolbox with service tools

Note: The G9973 Stand is an optional accessory for this machine. Some modification is required, such as drilling holes in the stand, and mounting hardware is not included.
