Item #: G1023SLWX
Model # G1023SLWX
Overview

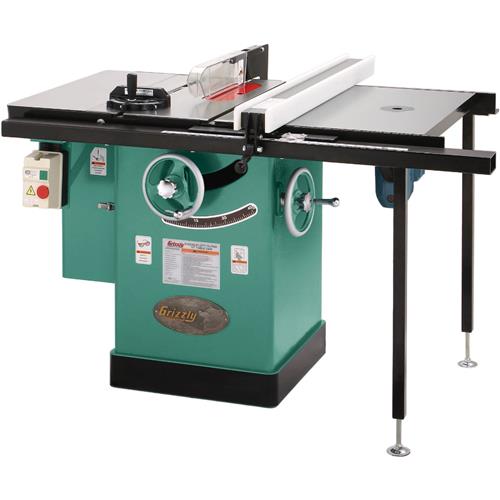

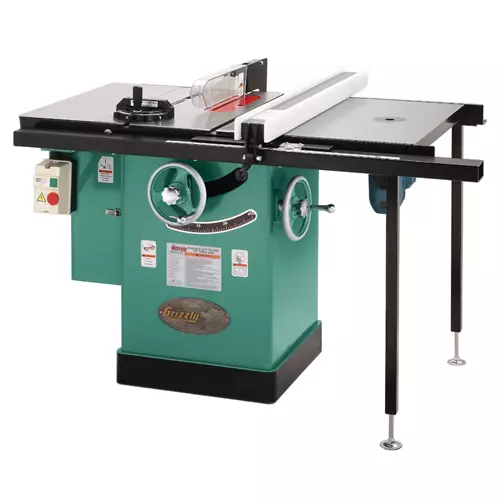

We've put together one sweet package with this 10" Left-tilting Table Saw with Cast Iron Router Table. The router table doubles as an extra wide wing extension for the table saw and the Shop Fox Classic Fence doubles as a guide fence for the router. The router table includes support legs and universal T-track router clamping system.

Specifications and Features:

  • Motor: 5 HP, 220V, single-phase
  • Solid cast iron table is first heat treated to remove warpage, then milled perfectly flat and ground to a mirror like finish
  • Table size (with 2 solid extension wings attached) is 48" x 27"
  • 5/8" diameter arbor is long enough to accept dado blades up to 13/16"
  • Extra large handwheels are the heaviest in the industry and really ease arbor movement.
  • Cutting capacity: 8" left and 26" right of blade
  • Maximum depth of cut @ 90 deg.: 3"
  • Maximum depth of cut @ 45 deg.: 2 1/8"
  • 4" dust port included
  • Magnetic safety switch is standard and protects the motor and operator.
  • One piece steel cabinet type stand.
  • All sealed ball bearing construction.
  • Triple V-belt drive
  • Powder coated paint
  • Base dimension: 20 1/2" x 20 1/2"
  • Approximate shipping weight: 508 lbs.
  • Heavy-duty cast iron miter gauge
  • Motor cover and dust hood included
  • Beveled edge
  • See-thru guard
  • SHOP FOX Classic Fence
  • Comfortable polished chrome handles
  • Top quality cast iron handwheels and lock
  • Router not included

    440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information

    PUSH STICK H3308 INCLUDED
