Overview

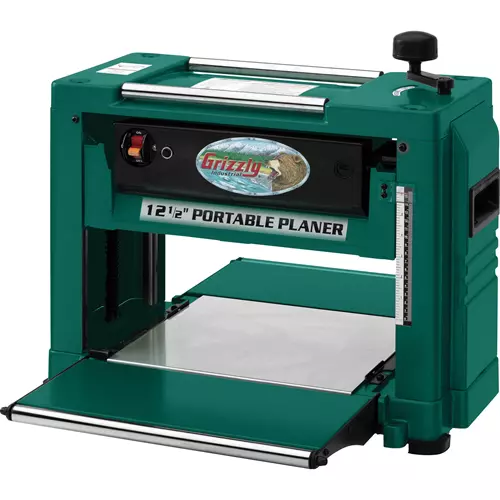

G0505 12-1/2" 2 HP Benchtop Planer

Portable, Light, Perfect.

We wanted a portable planer that was lighter to carry around and finished cuts faster, but didn’t lack muscle or design quality. What happened?

We designed the Grizzly G0505 12-1/2" 2 HP Benchtop Planer and were awarded Top Value by WOOD Magazine for its overall performance against the competition.

This 12-1/2" planer features a 2 HP motor, 10,000 RPM cutterhead, 32 FPM feed rate, top-mounted return rollers, and extra-large table extensions.

Additional features like 1/8"-thick knives (instead of the 1/16" thick knives on most portables) are proof that this dynamo will rule the jobsite for years!

Like all of the Grizzly Planers, the G0505 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The manual for the G0505 was written by our US-based Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your planer.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the planer are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Motor: 2 HP, 110V, single-phase, 15 A
  • Maximum cutting width: 12-1/2"
  • Maximum cutting height: 6"
  • Maximum depth of cut: 3/32"
  • Minimum board thickness: 13/64"
  • Cutterhead speed: 10,000 RPM
  • Feed Rate: 32 FPM
  • Number of cuts per inch: 52
  • Approximate shipping weight: 78 lbs.

FEATURES:

  • Two reversible HSS knives in cutterhead
  • Top-mounted return rollers
  • On/Off Toggle switch with safety lock
  • Thermal overload protection
  • Includes knife setting jig and wrench
Reviews

67 Customer Reviews(4.8 out of 5 stars): Sign in to write a review

Anonymous Reviewer
09/14/2020 12:19:07 PM

No feedback given

Anonymous Reviewer
09/02/2020 7:51:55 PM

I have wanted a thickness planer for quite some time. I build Banjos. I quit looking for a thickness planer due to the expense. A year or more ago my interest was peaked again when I found a thickness planer at the Harbor Freight store. I examined the best I could in the store. I then went to Lowe's and looked at the planers they had on display. I already own a Grizzly table saw, so I knew its' quality, so I looked to Grizzly. Wow, would you believe it, but the Grizzly G0505 was on sale. This planer has a cast iron base, steel shroud, and the thing that sold it to me was that the blades are 1/4" thick. All of the other planers that I looked at had only 1/16" thick blades, The HFT was almost $ 200.00 less than the Grizzly after considering shipping, but it was stamped steel and plastic shroud.
I set up my planer as soon as I received it, and bolted it to a tool base. I then proceeded to plane some mahogany for a new banjo neck. The results were so smooth. I was delighted, so I planed some maple for another neck. I had so much fun that I didn't want to stop. This is one fine machine.

Anonymous Reviewer
Amazing 08/26/2020 7:27:09 PM

Best planer Ive ever had. Required zero tune up out roof the box.

Anonymous Reviewer
08/22/2020 12:06:52 PM

No feedback given

Anonymous Reviewer
08/20/2020 11:50:00 AM

No feedback given

Anonymous Reviewer
08/08/2020 12:38:29 PM

Product came in a timely manner in packaging that was very well protected thus it arrived in great shape with no problems noted. Set up was easy and the machine was tested on dry rough sawn white ash and it did a very nice job. Happy I made the purchase.

Michael S
05/27/2020 1:00:03 PM

I have not used it yet and cannot wait to use it ,it looks great. Im sure Ill be happy with it.

Keith P
Workshop must have!!!! 05/24/2020 11:39:01 AM

No feedback given

Anonymous Reviewer
Great Grizzly Planner and Shop Fox Table Saw 05/21/2020 5:09:48 PM

I learned about woodworking 30 years ago in Northern Illinois and had a basement workshop, which I had to give up when I moved to Arizona 15 years ago. I received a Kobalt table saw from Lowes, last Christmas, but It was not up to the specifications I would want to do project I envisioned. The Shop Fox tablesaw and Grizzly thickness planner have much better features than even the Delta products I had before. Im still setting up a garage shop now, but I am confident I have the capability of completing my intended projects. I really love this table saw.

Anonymous Reviewer
05/21/2020 4:42:00 PM

No feedback given

Anonymous Reviewer
Great investment! 05/18/2020 6:44:51 PM

I bought this because I am building new stairs. I bought some oak and wanted the planer to use for this job. It is easier and very much worth the price!

Anonymous Reviewer
04/07/2020 5:46:23 PM

A superior product. I would recommend this to anyone.

Anonymous Reviewer
great little planner 03/10/2020 1:16:40 AM

I bought this a couple months ago and like it a lot. it does a great job.. my work has turned to bigger projects so I will be upgrading soon to a bigger planner. I really like the grizzly tools. I have 4 of them and 4 more to go.

Robert A
Excellent Planer 02/28/2020 12:10:14 PM

Impressed with this planer's performance and ability to be portable due to it's light weight of less than 100 lbs. Great value for the excellent quality of finished boards.

Jack M
01/15/2020 6:18:48 PM

No feedback given

Anonymous Reviewer
He's happy! 01/08/2020 3:47:27 PM

I bought this planer as a Christmas present for my husband on the advice of a good friend who has the same one, only its 25 years older...both are happy!!

Jerry P
Don't let the size of this little planer fool you it's AWESOME !!! 01/02/2020 4:53:20 PM

This little planer really does a fantastic job , it's just as good as the industrial planer that my dad uses in his kitchen cabinet shop . My dad has been in the cabinet manufacturing business for over 60 years and I've used his industrial planer thousands of times , but this little Grizzly planer is no joke , it really does a fantastic job , just don't try to force it to plane more than it's capable of doing in a single pass and it should do great for any small home shop or small woodworking business . The wood has such a smooth finish after it passes thru the planer . Again , like I said , just don't try to over work this little planer and make sure you don't run any wood with nails or anything else that would dull or chip the blades and it will do any job that you need it to do . I highly recommend this planer to anyone who needs a planer for a small shop on a limited budget . For the price and size you simple cannot beat this deal !!!

David S
03/29/2019 10:36:53 AM

No feedback given

Anonymous Reviewer
Excellent product 03/27/2019 2:40:02 PM

I bought this Planer about 3 weeks ago and has been great product and performs excellent! I look forward to using this and other products from grizzly for my projects. Great quality and very well made, highly recommend.

Anonymous Reviewer
Very happy with planner 03/27/2019 12:32:39 PM

The Products direction were very easy to follow and had minimal steps to set the product up for use.
Planner has more than enough power and the knives do a great job on both soft and hardwoods.

Anonymous Reviewer
Overall a good product 02/02/2019 8:27:50 PM

For the $$ you can't beat this planer. It has plenty of power, clears chips well, and doesn't leave too much snipe. For a 2 blade planer it leaves a very smooth finish as well. I really like the rollers on the I feed and outfeed tables too!
My issue is with the rollers on the top. They are an excellent idea and I was excited for that feature, but they are poorly designed. Rather than using screws to hold the rollers in place they used straight metal rod about 1/2" long. Within the first 10min of using the machine the pins were pushing thru and the rollers falling off. For a while I continued to put them back in, but eventually gave up. I plan to modify it myself to use screws like they did on the feed tables.
**UPDATE**
After about a month of use, this planer has not held up. I plane a lot of white and red oak that is rough hewn. It took no time to dull the blades, with only a 2 blade cutterhead it just beats them up. If you are planning soft woods and not using it frequently you will be fine. But if you plan to run her halfway hard, you're better off spending more.

Anonymous Reviewer
Great equipment. Ive owned two. 01/10/2019 11:25:09 PM

Second one I bought. Used the other one for 12 years.

Darius B
glad I bought it 01/02/2019 2:27:05 PM

Worked great right out of the box. I have run old oak and walnut through it with no problem

Anonymous Reviewer
Ok 12/28/2018 12:58:26 PM

Dust collection should have been included for the same price.

Anonymous Reviewer
Great value 12/06/2018 9:49:45 PM

I have run over 60 feet of chainsaw milled lumber of various width and thickness without a single problem. Boards come out super smooth and even. Easy to adjust, scale is right on. Light enough to carry with built in handles, set on table or stand then tuck away on storage shelf.

Sarona L
09/12/2018 2:07:33 PM

This planer is the perfect size for getting wood to the thickness I need for Ruger Mark pistol grip panels after 'resawing" with my GRIZZLY band saw.

Anonymous Reviewer
Great product, 06/07/2018 1:59:19 PM

No feedback given

john B
Good, low cost planer 05/23/2018 11:58:49 AM

While this is a very good, economical planer, I don't think I'd give it a five star rating - four and a half stars would be more appropriate as there are a couple things (the bed, the sheet metal parts) that I would prefer to be more solid. That said, I'm happy to have it - it beats hand planing or carting material to someone else's shop. Very good price. Now all I need is a similarly economical, wide jointer.

Anonymous Reviewer
Lean and Mean 05/20/2018 7:23:28 PM

Love this planer. Planned several board feet of oak. Great job!!! The Planer plowed right through it. Set up was easy. 5 Stars!!

Robert P
Good product for the money 05/03/2018 10:34:04 AM

I had the model GO832 on order/backorder for 2 months and couldn't get a commitment from Grizzly when order would be filled. So I substituted and received model GO505 and was shipped promptly.
I got it to mill heavy pieces of walnut for fireplace mantle, bench seats and shelve boards for our new construction . I've only run about 100 board ft. through it but the unit has performed nicely with what I've put through it. If you need planer for making your living you would do well to look at the large heavy units but for homeowner hobbyist it gives you bang for your buck.

Robert C
03/18/2018 6:09:07 PM

I am Glad that I got such a good planer It works very well

Anonymous Reviewer
Runs good! 02/27/2018 2:38:04 AM

Only reason it s not a 5 Star review is because I also got the dust port as well. It hangs a bit low, recommend a homemade dust/chip port. Could easily fab a better one and plan too. Overall I am pleased with the unit. If I knew tht the 3 blade u it was 10-20 $more would have bought it.

David R
01/15/2018 1:57:21 PM

I bought this to replace an old craftsman planer that the motor had gone out on ....looks like it will do the job....seams to have good power.

Anonymous Reviewer
planer 12/26/2017 10:41:18 PM

this is a great planer for the money....much better than other brands in the price range....would definitely recommend

Anonymous Reviewer
Another great product!! 12/23/2017 1:56:49 PM

The day this arrived I unpacked it and put it to work! Great machine for a shop with limited space! It turned good ol scrap Missouri oak into a beautiful vegetable storage bin.

Carl M
12/22/2017 3:38:03 PM

No feedback given

Anonymous Reviewer
12/20/2017 10:27:08 PM

Thus is a good product. The only reason I gave it a 4 star is sometimes the wood has a problem getting pushed through the planer and needs assistance. Good product though.

Christopher F
12/18/2017 2:43:59 AM

Works like a dream. I had a Delta 12 planer and the motor blew out 1 month after the warranty ran out. It didnt have a good dust collector with the opening only about 1/2 opening to a 4 hose.
I love my new Planer. It has a large opening to the 4 dust collector and it planes like a dream. My cherry coffee table came out amazing. I will be replacing some other of my Delta products with Grizzly.

Anonymous Reviewer
Super planer 12/17/2017 11:58:11 AM

Haven't used it much, but are tickled with the results so far

Anonymous Reviewer
12/11/2017 12:16:50 AM

Use my G0505 every chance i get does a very foog job .. I use manly air dried lumber from red oak ro walnut it looks like it came from a lumber yard

gene M
12/09/2017 3:06:21 AM

No feedback given

William J
Have had this machine for years!! 11/16/2017 12:36:30 AM

I bought this machine many years ago. It works great. I have planed many types of wood with it. Mostly Oak and Walnut. I have no complaints. Great Machine!! UPDATE.. My old planer finally gave it up. I used this machine for about 13 years. I felt I got my money out of it. So I purchased another one just like it. I shopped around. Checking out other makes of planers. I just felt no one else makes a machine that can compare with this one.





Steve R
EXCELLENT Planer 09/29/2017 1:30:58 PM

I have had my planer 5 years. Absolutely love it. Does everything I've ever called on it to do. Low maintenance, easy enough to move around when needed and performs without fail.

Warren W
Satisfied!! 08/04/2017 9:46:52 PM

I knew this was a very good product. I have see one similar to this one on action.

Anonymous Reviewer
Works great 07/01/2017 3:10:21 AM

Works great. Does the job as advertised. It does an excellent job of smoothing rough cut lumber.

Anonymous Reviewer
Sound product. 06/07/2017 11:58:10 PM

I bought this product about 6 weeks ago and have used it several times. I am pleased with it's performance and the results. I would recommend 2 changes: make it about 40-50 lbs. heavier to cut down on vibration, and make the dust collection adapter fit better and mount easier. I am pleased with this product and would buy it again.

Mark K
Great product 06/05/2017 3:33:35 AM

I bought this product a month ago and have put it through its pace running a lot of reclaimed material and beams. It was up for the challenge the only problem that I had was it seems to be a small nick in one of the blades other than that I am extremely happy with this purchase.

Anonymous Reviewer
06/04/2017 4:19:28 PM

I have limited space so this planer is the right size. I have used the same model for the last 12 years and really make them work.

Anonymous Reviewer
06/02/2017 9:01:50 PM

I bought a planner and love it .i have other tools also.never had any problems with any of them . It s nice to have the quality products you can afford

Ben O
I simply love the simplicity of this unit! 06/02/2017 3:27:49 AM

No feedback given

Gerald J
06/02/2017 2:53:38 AM

No feedback given

Dwight H
Works well 06/01/2017 11:26:39 PM

No feedback given

Anonymous Reviewer
06/01/2017 9:51:10 PM

No feedback given

Rodney B
Superb Quality! 06/01/2017 9:09:17 PM

I bought this a few weeks ago and right out of the box I was super pleased with it. Anything that I have thrown at it so far has not been a problem. I have used almost every brand out there such as Dewalt, Porter Cable, Craftsman and Makita so far Grizzly has out performed them all. I do a lot of re purposing and up-cycling with lumber and as long as it is clean I have no complaints about this planer.

William C
04/22/2017 2:12:48 PM

I purchased this some time ago to replace my 12.5 inch planer molder I have had for many years. The old planer molder broke a shaft and several parts were damaged. I don't do as much woodworking as I used to so I decided to get the smaller portable unit to make more space in my workshop. I just set it up a few days ago and started planing rough sawed cherry and walnut lumber. It worked well but seemed under powered. Planing an 8 x 1 inch board set for a 1/32 cut the planer choked down too easily. Actually the width of the cut was only 3 inch wide to start the planing because the board was somewhat bowed. A significant increase in powder would make it a much better planer.

Andy S
Great Planer 02/19/2017 4:11:38 AM

This Planer works great, a little noisey, i think it will quiet down once we throw in our carbide blades. A much better planner than a rigid or anything you'd get out of the box store, and it's for a fair reasonable price.

James K
I think it will be great. 02/02/2017 3:56:59 PM

Have not used it much yet, as waiting for cut lumber to dry. Looks and runs great. Well satisfied. Arrived promptly after ordering it. Set up was a snap.

Bobby C
01/31/2017 9:48:38 PM

I bought this a month ago and it has done what I needed it to. For this size of my home shop it is heavy enough and also light enough to stay still and move around. Only time will tell about the moving parts.

Anonymous Reviewer
01/31/2017 8:58:40 PM

No feedback given

Edward H
01/26/2017 8:40:17 PM

Can't beat it for the price. Usable right out of the box no adjustments were required. If your considering buying it, be sure to get the dust hood I'm shocked how well it contains the dust.

Anonymous Reviewer
Good stuff Maynard 01/26/2017 1:55:35 PM

No feedback given

John S
Awesome product 01/26/2017 1:25:49 PM

happy i found this company, i have been wanting a planer for some time, i just never found one of my liking until i stumbled across a youtube video of this one, what these 2 guys put this thru and it just kept on working was quite impressive, this sealed the deal, plus i got it on sale under 300.00, and was even able to finance it. it is all steel construction, it not really loud, and it does a awesome job on making reclaimed wood look new again. i will be buying a lathe from them as well. thank you for making awesome product.

Anonymous Reviewer
Great tool 01/26/2017 11:11:45 AM

Love my thickness planer! The end finish is so good that my projects take little prep before finishing.

Anonymous Reviewer
great product!! 01/26/2017 2:34:58 AM

I bought this planer as a birthday gift for my boyfriend and he loves it

Anonymous Reviewer
Same reason. Still setting up my shop. 01/25/2017 10:04:34 PM

No feedback given

Neal C
Good deal 12/26/2016 12:09:51 AM

I bought one ten years ago and have been very happy with it. The brushes finally need replacing, didn't have time to deal with it, so I bought another one and order the brushes. When I have time, I will replace the brushes and pass it on to my son. Great deal for a small, inexpensive planer.

rckyroad2
great product 11/01/2015 9:53:48 AM

bought this product a couple weeks ago after the gear box went out of my rigid planer. working good with oak wood with some snipe. if used as directed it is a very good machine. would recommend this machine so far to anyone looking to buy
