SKU: G0834
Model # G0834

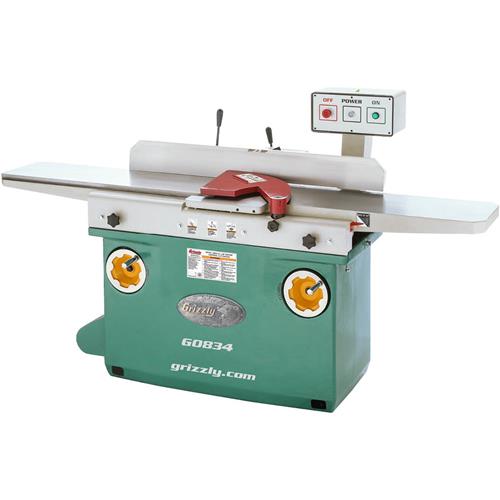

This 12" Parallelogram Jointer puts the heavy in heavy-duty. With precision-ground cast iron tables and a solid cast iron stand, it weighs in at over half a ton! A burly 5HP, 230V single-phase motor powers a spiral cutterhead with 96 German-made indexable carbide inserts - a combination capable of handling any hardwood! The G0834 also features precise table adjustment with easy to reach handwheels, a convenient pedestal-mounted control panel, and a centrally mounted, extra-large fence for accurate edge-jointing. This jointer is the perfect combination for oak, maple, or any highly figured hardwood!


  • Motor: 5HP, 230V, single-phase, 19A, 3450 RPM
  • Cast iron table size: 12-3/4" x 84"
  • Fence size: 5-3/8" x 47"
  • Floor to table height: 32-1/8"
  • Maximum depth of cut: 1/8"
  • Cutterhead diameter: 3-7/8"
  • Cutterhead speed: 4950 RPM
  • Number of carbide inserts: 96
  • Carbide insert size: 15mm x 15mm x 2.5mm
  • Bevel jointing: 0-45° left and right
  • Power transfer: V-belt drive
  • Overall size: 84"L x 39"W x 47"H
  • Approximate shipping weight: 1278 lb.
  • Parallelogram table adjustment
  • Handwheel adjustable tables
  • Pedestal-mounted control panel for easy access
  • Center-mounted face with angle gauge
  • Fence stops at 45°, 90°, and 135°
  • Spiral cutterhead with 96 German-made indexable carbide inserts
  • Precision-ground cast iron tables
  • Solid cast iron stand
  • Rabbeting table
  • Powder-coated finish
