SKU: G8145Z
Model # G8145Z
Overview

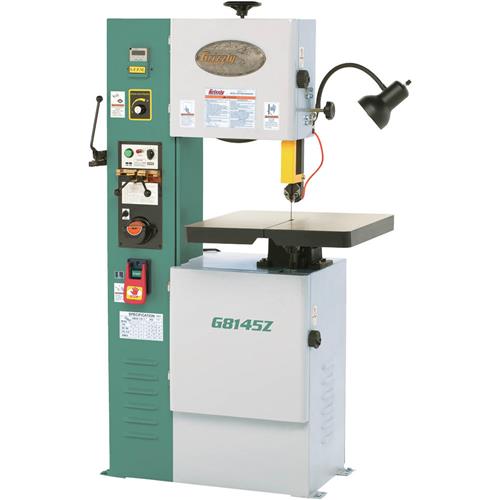

This versatile bandsaw allows intricate cutting of aluminum or brass to tool steel. Features a blade welding station which includes a cutter, welder, annealer and a grinder. Ideal for making inside cuts and quick repairs.

Features:

  • Variable speeds range from 108–1800 FPM
  • Blade welding station includes cutter, welder, annealer and grinder
  • Left, right table tilting control
  • Upper and lower blade guides
  • Integrated chip pan
  • Work light
  • Wheel brush

Specifications:

  • Main motor: 1-1/2 HP, 220V, 3-phase, 1725 RPM with single-phase inverter
  • Grinder motor: 1/8 HP, 220V, single-phase
  • Power source: 220V, single-phase, 60 Hz
  • Maximum cutting height: 7-1/2"
  • Throat capacity: 14-3/16"
  • Blade length range: 105"–110"
  • Included blade size: 108" x 1/4" x 14 TPI (similar to Grizzly model H8809)
  • Blade size range: 1/8"–1/2"
  • Blade speed: Variable, 108–1800 FPM
  • Electric welder: 2.0 KVA
  • Table tilt: 45° right, 15° left
  • Floor to table height: 35"
  • Table size: 21-5/16" x 19-3/4"
  • Overall dimensions: 37" W x 62-5/8" H x 15-1/8" D
  • Approximate shipping weight: 432 lbs.
