Overview

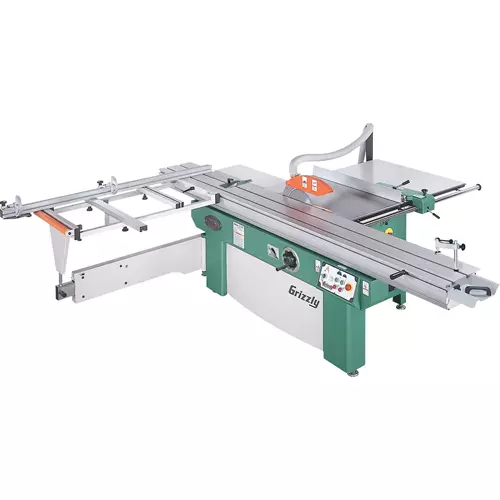

The G0493 has all the same great features as our G0451 but with over 10' of ripping and crosscutting capacities. The greater capacity opens new possibilities and options especially for sheet material. Super accurate, heavy-duty, and smooth-as-silk operation make this an incredible saw at an equally incredible price.

Features:

  • Micro adjustable rip fence
  • Scoring saw blade ensures tear-out free cutting
  • Sliding table on bearing guide system with chromed steel ways
  • Blade tilts 45° for miter cutting
  • 5" main dust hood, 2-1/2" upper dust hood
  • Alloy crosscut fence for miter cutting 45º right and left
  • Miter fence has two flip-stops for repetitive cutting
  • Safety limit switch for blade cover
  • Adjustable riving knife alignment
  • Belt drive
  • Magnetic switch with thermal overload protection

Specifications:

  • Main motor: 10 HP, 220V/440V*, 3-phase
  • Scoring motor: 1 HP, 220V/440V*, 3-phase
  • Amps: 28A at 220V, 11.5A at 440V
  • Main blade size: 14"
  • Main blade arbor: 1"
  • Main blade tilt: 0-45°
  • Main blade speed: 4000, 5000, 6000 RPM
  • Depth of cut at 90°: 4-1/8"
  • Depth of cut at 45°: 2-7/8"
  • Scoring blade size: 4-3/4"
  • Scoring blade arbor: 22mm
  • Scoring blade tilt: 0-45°
  • Sliding table size: 126" x 13-3/4"
  • Length of cross cut: 123"
  • Width of cross cut: 126"
  • Maximum rip capacity: 48-1/2"
  • Maximum sheet capacity: 123" x 126"
  • Main table dimensions: 39-1/2" x 24"
  • Approximate shipping weight: 1928 lbs.

Main blade and scoring blade not included.

*440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information.
