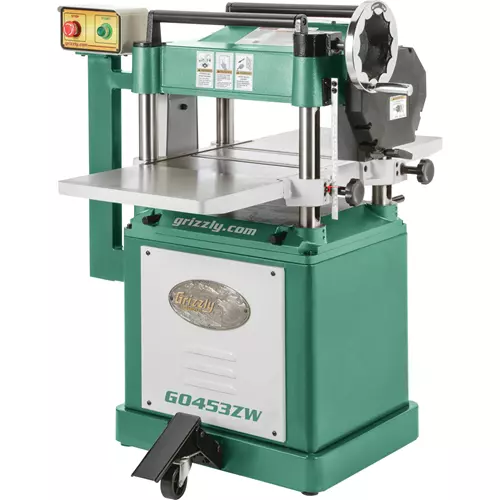

We've taken the best all around 15" planer and added a 4-row spiral cutterhead with German indexable carbide inserts for the finest surface finishes money can buy. Just like the model G0453W, you'll also appreciate the built-in mobile base, adjustable bed rollers, two-speed automatic board feed, and solid cast iron extension wings. We've also upgraded the magnetic switch control to a solid pedestal-mounted switch arm. If you're looking for a great all around 15" planer, this is the one to own!


  • Motor: 3HP, 240V, single-phase, 12A
  • Maximum cutting width: 15"
  • Maximum stock thickness: 8"
  • Minimum stock thickness: 3/8"
  • Minimum stock length: 6-1/2"
  • Maximum cutting depth: 1/8"
  • Feed rate: 16 & 20 FPM
  • Cutterhead diameter: 3"
  • Number of indexable carbide inserts: 72
  • Insert size: 14 x 14 x 2mm
  • Cutterhead speed: 5000 RPM
  • Solid serrated steel infeed roller
  • Table size: 41-3/4" x 16"
  • Overall size: 38"W x 42"D x 44"H
  • Approximate shipping weight: 602 lb.
  • Spiral cutterhead with German-made indexable carbide inserts
  • Built-in mobile base
  • Board return rollers
  • Adjustable bed rollers
  • Magnetic switch with thermal overload protection
  • Four-column support with table locks
  • 4" dust port
  • Precision-ground cast iron table and wings
  • Heavy-duty cast iron construction

26 Customer Reviews (4.7 out of 5 stars) : Sign in to write a review

dennis D
01/20/2018 5:07:16 AM

After I adjusted the planer it planes great with very little snipe .I was disappointed that the gearbox leaks oil badlypast the speed control shaft. I contacted customer service and they sent the wrong seal. I got the right one the second time but still have to pull it all apart to fix not good for a $2000 investment

Anonymous Reviewer
01/15/2018 1:56:50 PM

No feedback given

mike M
Nice product for the price 01/13/2018 2:59:02 AM

Average machine, don’t follow instructions for set up, call service for tips to get rid of snipe

Awesome planer! 01/06/2018 12:48:29 PM

I waited a long time for this planer, but the wait was worth it.
It has exceeded my expectations in every way. Quiet, smooth operation and results that are the best wood surface finish I have ever seen from a cutterhead. Bravo Grizzly!

Wallace D
10/01/2017 12:38:41 PM

Love it. Works perfectly. I've had mine for 3 years and many bf through it and still haven't had to turn cutters (Amazing). So glad I got the spiral cutterhead. This makes fine woodworking a joy. You'll love it.

Anonymous Reviewer
this planer works very good. 07/28/2017 1:29:32 PM

We bought this about 3 weeks ago and love the smoothness of the wood when it comes out. The only problem is it scalps the ends of the wood therefore we end up cutting off about 4" on each side. We cannot figure out how to adjust it so this don't happen.

Virgil M
Cuts like BUTTER 07/12/2017 1:33:41 PM

I love this planer. I just ran about 300bf of walnut through it and could not be happier. The rubber out feed roller is worth the extra money, no marks at all.

Anonymous Reviewer
Fantastic Planer 06/12/2017 1:05:19 PM

This machine has made my shop at least 10% more productive. I buy all my stock from a lumber mill in rough sawn condition. I plane and joiner every board that passes thru my shop. I primarily have been working with Mahogany and Oaks a lot over the last 2 years, building entry doors and Garden Benches. This planer's out-put is nearly flawless and the amount of wood it can remove in a single pass is awesome and it sometimes overwhelms my DC system plugging up the bottom of my cyclone...........that is some wood shavings!!! Assembly and set-up was easy and so for has been running flawlessly. I am glad I went with the "W" model because it has a rubber out-feed roller which leaves no marks behind on the final planning pass. I could have spent more, but I ain't sure I would have gotten any better machine than this one!

06/10/2017 3:58:52 AM

No feedback given

I like it a lot. 06/09/2017 12:36:32 PM

I have the unit for about 4 weeks, and have planed oak, cherry, walnut and butter nut. After setting the bottom rollers, everything works extremely well. Because of the rough stock I was planing I had to set the bottom rollers a bit higher than the factory delivered. Having a dial indicator is very helpful. The finished product requires very little sanding. The one knock I have is that the drive rollers can pull boards over the side guides which can mess up the profile of the board.

Russ P
a decent planer 06/04/2017 2:34:06 AM

I bought this planer with the plans on buying some additional Grizzly products. I'll just say that this is the only Grizzly product I will be owning. I had the planer for a little under a month before the motor fried. Now, Mind you, I only planed a little clear cherry lumber during this time. Not taking more than 1/16" cut at a time. Smoke and noise galore! And yes; we followed the set up instructions to the letter! Grizzly was very good and sent me out a new motor and contact box a.s.a.p. However, the replacement motor I got had witness marks on the shaft from the previous pulley that was on it before it was remanufactured. But if it worked, I thought, so be it. So then, after we got everything replaced, we were planing soft maple for drawer boxes. Feeding it through at 1/16" passes and the motor faulted out. Another call to Grizzly tech support and I was tearing into it again to reset the switch in the contact box. I think there could be a better place to put the reset switch, but I guess it shouldn't be a big deal. Long story short, all in all, It's a decent planer as long as you don't feed more than one piece of lumber at a time, and if you get a good motor in your planer.

Anonymous Reviewer
06/03/2017 6:34:35 AM

No feedback given

Anonymous Reviewer
Great Machine, Good Quality,Excelent price. 06/02/2017 4:45:34 AM

No feedback given

Anonymous Reviewer
06/02/2017 3:42:57 AM

I bought this machine to replace my dewalt planner and my dewalt planner will leave a smother finish than this one but the grizzled will work faster due to the bigger motor

Anonymous Reviewer
05/25/2017 3:21:39 PM

Just getting this tool set-up. So far I feel pretty good about the quality of the machine.

Anonymous Reviewer
Awesome machine 05/12/2017 1:28:34 PM

Love it! This is a very nice addition to my shop. Quiet and material comes out looking like it was sanded. I am very happy I bought this machine. It was packed extremely well. Lift gate service put the machine inside my shop. I would highly recommend this machine if you are looking for a quality planer.

Carl D
05/12/2017 1:55:43 AM

No feedback given

No more knives! 02/07/2017 10:08:56 AM

Great finish less noisy than the knife version. Well worth the extra money for the spiral cutter head.

Anonymous Reviewer
01/26/2017 4:47:37 AM

I've had the machine for about a month and I'm happy with its overall performance. It produces clean surfaces with little to no tearout and almost no snipe. The helical cutter head is a worthwhile upgrade over the straight knives. So far the only annoying shortcoming is that the M10 thread on the front feet is too short and I had to jury-rig new front feet with a 21/2" M10 bolt to give more room for adjustment. Also, I had to buy a PullzAll and suspend it from my garage ceiling in order to hoist this beast off the ground to attach those front feet. Last but not least, consumers should be advised that a 602 pound machine should only be delivered by a truck with a lift gate. All that being said, this machine was about a thousand dollars less than the equivalent Jet and seventeen or eighteen hundred less than the Powermatic! Good value!

Anonymous Reviewer
I'm happy 01/26/2017 1:24:15 AM

I am happy with this planer. I used to have a Ridgid, and got tired of the noise, and sharpening knives. This is quieter too, and may save what little is left of my hearing! Do not remove any of the four Allen nuts on top! They have holes for adding oil right there in the nuts. I hauled it up the driveway with a pallet jack and a tow strap on the ball of my truck.

Anonymous Reviewer
I am very Happy an impressed with the Planner. works well. 01/26/2017 1:20:51 AM

I am very impressed as to the quietness of the Planner. I am an audiologist and do hearing programs and tests for many companies, Hearing protection is NOT needed whill operating this Machine. VERY SATISFIED, Monte Russell Sr

Anonymous Reviewer
Strong, quiet and powerful 01/25/2017 11:03:09 PM

This is a sweetheart of a planer. Based on my spiral jointer purchase, I was hoping that the sound level would be similarly low....and it is. Segmented head machines are just so much quieter than regular blades. The packing for shipping was secure and well-executed. The assembly was easy (needs 2 people minimum) and the infeed-outfeed tables were ground perfectly to need almost no adjustment when bolted on. Getting all of the grease off was somewhat messy, but at least the castings were well protected against rust. It is a very nice machine. The only "issue" I have would be to have an option to discharge the dust chips hood to the other side (only a left-facing chute is available).

Very good 12/14/2016 2:15:48 PM

This machine has been in my shop for about two months now, and has been quite a step up in production for me. I have been using it for hard maple and have found power to be good for the size. Don't expect it to hog 1/8" off 8" stock for dimensioning rough stock though. It will bog down and if you aren't ready, will trip the internal breaker. I soon learned (after the first shutoff) that about 1/16" is all round the best cut for initial roughing of wide stock. Properly setup, (lower rollers height above the table) this machine does not snipe. And I mean does not snipe. I did not have to adjust them at all, but did confirm they were set at the lowest distance recommended by Grizzly. This is the key to low or no snipe. If you continue to have snipe problems after the adjustment, try running stock through at a slight angle. This usually improves the quality on short pieces, especially. The carbide cutters are invaluable, and I wouldn't buy any planer/jointer without them. No serious craftsman would attempt to use material straight from the machine without properly preparing it for finish, such as hand planing or sanding, depending on your preference. That being said, the cutters do not present a problem at all, and any "scalloping" left by the cutters is very easily removed in the process. I have several Grizzly machines, and consider them to be good quality tools. When I compared this machine to the Jet planer of the same size, they appear almost identical, so the duration of warranty was the only thing they were asking many hundreds of dollars more for. I opted to go with Grizzly, because I have found Grizzly customer service to be responsive and knowledgable. All manufacturers will have problems with products from time to time, but I have not had any major issues with any of my four machines.

Breezy Hill Woodwerks
A great planer, poor quality control 08/13/2016 6:36:37 PM

Let me begin with the good news. Overall I am very pleased with this machine. I have overworked and replaced two portable planers prior to purchasing this one and there is no comparison between this one and the previous machines. It is very QUIET and the operation is flawless. I have already planed many board feet of maple and birds eye maple with absolutely no tear out. I love it!

However, when I first unpacked and setup the machine, it would not start. I contacted Technical support who had me realign the centrifugal switch. Still no luck. Since it was the weekend and Technical support was not available, I began troubleshooting on my own. I found that the motor would run if I reduced the load by loosening the belts. Even after doing this, the motor struggled to start. I contacted Technical support who then sent me a new capacitor. That fixed the problem and I am off to the races.

By profession, I am a Quality Assurance Engineer. Before purchasing this planer I read several reviews written several years ago on the same model in which the capacitor was an issue. I guess the engineers at Grizzly and the manufacturing plant in China have not figured this out yet. In my plant, root cause and corrective actions would have been completed after the first incident.

Without the initial issues this review would have been a 5 star. Still pleased with the machine.

Most Excellent! 05/14/2016 12:47:34 AM

Mine came yesterday and it is everything. Super quiet compared to the two knife Rigid that I have had for over 20 years. This spiral cutter-head is the real deal. I have an engine hoist but if you don't have that or a forklift you may not be able to install the mobile base wheels. It weighs 600 lbs. and is solid machinery. The height wheel spins like butter. Transmission shifting is smooth. I'm happy, happy, happy.

Very pleased 03/10/2016 6:06:50 AM

Planer arrived by U.P.S. freight, and was packaged in a wooden crate. No damage at all to package or planer. I decided to try the Grizzly after my brand new Dewalt bench top let me down planing some 100 year old barn oak. The Grizzly worked it up with no problem! Very quiet machine. I would highly recommend this baby! Just be sure to check the gear oil, and tighten the drain plug when it arrives.
