Item #: G0736
Model # G0736
Overview

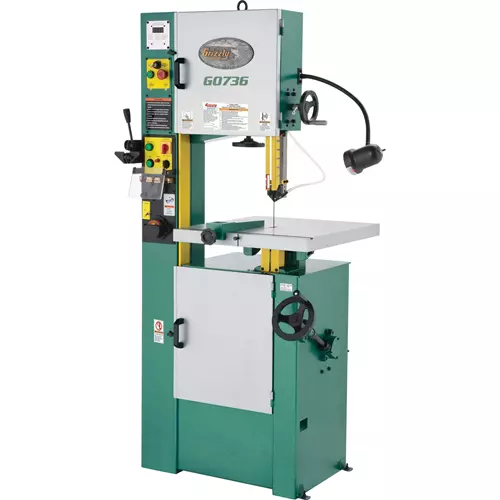

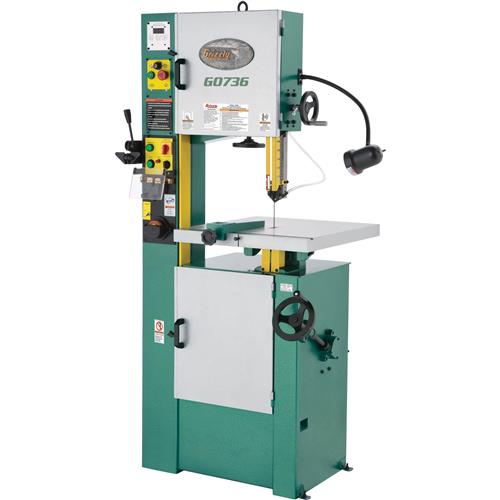

“Holy cow!” is exactly what we said when we tested this 15" Vertical Metal-Cutting Bandsaw and its 18" big brother, the G0737. We were so impressed with the smooth, quiet operation that we had to add it to our already impressive lineup. Besides the high-quality construction throughout, such as cast iron wheels and super thick castings, this saw features digital speed readout, on-board blade cutting/welding/grinding station, work lamp, air blower at cutting area, rack-and-pinion blade guide adjustment, and key-lock switch. Cuts workpieces up to 10" high and has a 15" throat capacity. Why is the price so low? The simple mechanics of the Reeves-drive pulley delivers reliable variable speed operation from single-phase power—without the cost of expensive electronics.

FEATURES:

  • Rack-and-pinion upper guide adjustment
  • Precision-ground cast iron table
  • Fully balanced cast iron wheels
  • Built-in blade welder and grinder
  • Work light

    SPECIFICATIONS:

  • Motor: 1-1/2 HP, 220V, single-phase, 1725 RPM, 9 Amps
  • Welder: 220V, 2.4 KVA
  • Grinder: 1/8 HP, 220V, single-phase
  • Maximum cutting height: 10"
  • Throat capacity: 15"
  • Blade length: 120"
  • Blade size range: 1/8"–5/8"
  • Included blade size: 120" x 3/8" x 14 TPI
  • Blade speed: Variable, 75–385 FPM
  • Table tilt: 15° right and left, 10° front and back
  • Floor to table height: 39"
  • Table size: 23-5/8" x 21-5/8"
  • Overall dimensions: 33" W x 70" H x 27" D
  • Approximate shipping weight: 860 lbs.
