Item #: H7507
Model # H7507
Overview

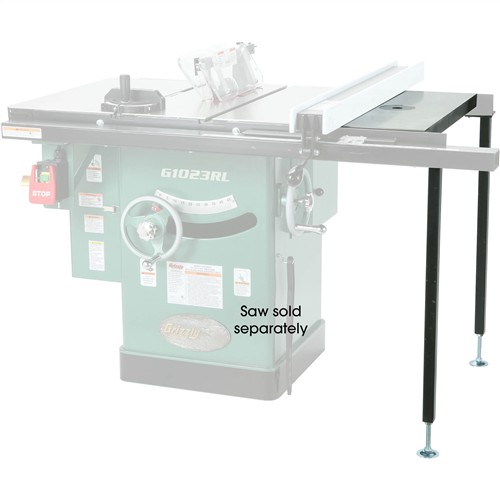

Our new H7507 Extension Wing with Router Mount features an 18" x 27" precision-ground cast-iron surface, universal router mounting, and easy installation. The included fence-rail-mounted support legs means a stable working platform. Fits G1023 series, G0444 series, G0575/G0576, and G0690/G0691 Table Saws (some minor modifications may be required). Will also fit G0651-52, G0771, and G0715P table saws if you drill new mounting holes in the H7507 to fit. Approximate shipping weight: 79 lbs.
Reviews

6 Customer Reviews (4.7 out of 5 stars) : Sign in to write a review

kevin T
Be prepared to do some drillling 02/22/2019 10:24:33 PM

Purchased for my G0833P which I was told would fit if i drilled new mounting holes.
It would be soooo much easier if all the holes were universal between saws.
I had to widen the 2 end holes where the existing table connects to the extension wing.
Both holes needed to be wider by about 1/2".
Not easy but duable through 5/8" thick cast iron. Also, two new holes had to be drilled to attache to the front and rear rails.

Anonymous Reviewer
08/17/2018 10:19:19 AM

This is a very worthy addition to the table saw. Use medium strength thread lock on the router mounting clamps to keep them secure.

Anonymous Reviewer
Heavy! 01/03/2018 11:59:24 PM

I bought this instead of a shaper. It looks like it will do the job well; a great addition to my Grizzly saw.

Anonymous Reviewer
12/22/2017 2:02:42 PM

No feedback given

Steve P
Extension surface 11/02/2017 2:12:13 PM

Great addition to my table saw. I leave a router permanently mounted to the underside of this surface, Very Handy.

Kraig Y
08/04/2017 10:48:57 AM

No feedback given
