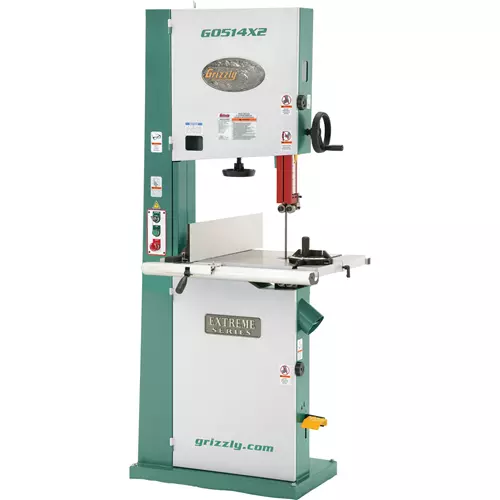

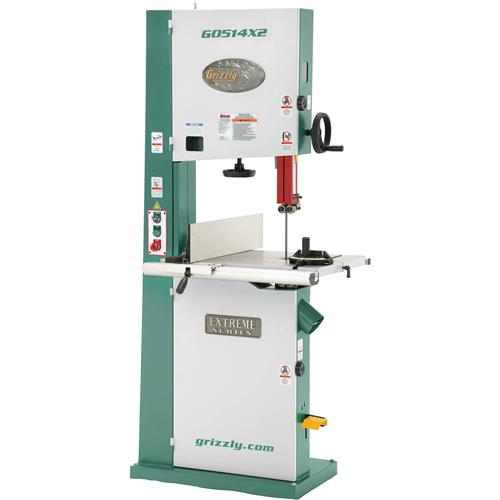

We took our rock-solid G0514X 19" Heavy-duty Extreme Series® Bandsaw, added a few more features and came up with a new line of ultimate 19" Bandsaws. This saw features a mechanical foot brake, a cast-iron table trunnion, rack and pinion table tilt control with extra table support, and an innovative resaw fence. If you're in the market for a 19" bandsaw, why not spend a little more and get one with a brake?

Made in an ISO 9001 Factory

CSA certified meeting CSA C22.2 #71.2-10 and UL 987-7th standards!


  • Motor: 3 HP, 220V, single-phase, 12A, TEFC capacitor start induction, 60 Hz
  • RPM: 1725
  • Precision-ground cast-iron table
  • Table size: 26-3/4" x 19" x 1-1/2" thick
  • Floor to table height: 37-1/2"
  • Cutting capacity/throat: 18-1/4"
  • Maximum cutting height: 12"
  • Blade size: 143" long
  • Blade width range: 1/8" - 1-1/4"
  • 2 Blade speeds: 1700, 3500 FPM
  • Wheels: fully balanced cast-iron with polyurethane tires
  • Wheel covers: pre-formed, hinged steel
  • Blade guides: dual ball-bearing with full enclosure protection
  • Bearings: sealed and permanently lubricated
  • Footprint: 29-1/2" x 17-3/4"
  • Overall size: 76" H x 36" W x 32" D
  • Approximate shipping weight: 480 lbs.


  • Blade tension indicator
  • Micro-adjusting geared table tilting mechanism
  • Height scale measurement
  • Fence with scale and magnifying window
  • Deluxe cast-iron fence with extruded-aluminum re-saw fence
  • Miter gauge
  • 4" dust port x 2
  • Table tilt 5° left, 45° right
  • Quick-change blade release/tensioning
  • Rack and Pinion upper guide adjustment
  • Foot brake
  • Cast-iron trunnion
  • Includes 3/4" 6-TPI blade

10 Customer Reviews (4.8 out of 5 stars) : Sign in to write a review

Alex Z
Great bandsaw that just needs a few minor tweaks 05/27/2019 3:08:20 AM

Overall I'm very happy with the saw. It does everything I wanted and has more than enough power. Mine had the dreaded vibrations that others have reported. To be fair I didn't contact Grizzly for replacement tires. Instead I bought American made ones that fixed the problem The fence has a few minor issues (when released the handle interferes with wood up against it and the pointer/ tape measure is set up for without the resaw fence when it could be set up for both). However with the new tires it'll easily pass the nickle test and I think (but didn't try) I could stand a dime on edge while running at the higher speed. In reality I would like to give it 4 1/2 stars. I opted for 4 simply because 5 seams like a review for a perfect tool.

Anonymous Reviewer
Excellent product 12/07/2018 7:45:42 PM

No feedback given

ken H
Absolutly Impressive ! ! 10/30/2018 7:56:16 PM

I used to have a smaller bandsaw years ago, and now im getting back into woodworking and i saved my money and bought what i thought was all i could afford. Well i got a lot my than i thought. This saw is a beast! Its heavy, very stable, and very powerful. I could not believe how nice this saw is. So happy with my purchase. This is my second large purchase from grizzly and both had shipping damage. I knew from first time what to do and grizzly handleed this matter with no questions, Great costomer support!! thanks and i will be back for more,

Anonymous Reviewer
12/17/2017 3:22:49 PM

No feedback given

Subsurface, I
rcomended 10/10/2017 2:06:47 PM

Bought this saw 8 years ago and going strong. This is a solid unit with virtually no vibration and cuts very smoothly. The dust collection is excellent with the two ports connected.
I have replaced the original rubber tires with grizzly urethane replacements and one set of roller blade guides.
Not bad for eight years of use. I would not hesitate to recommend this machine.

Anonymous Reviewer
06/03/2017 2:28:45 PM

No feedback given

Adam M
05/31/2017 11:45:22 AM

No feedback given

Anonymous Reviewer
Great saw for the price! 05/01/2017 5:52:49 AM

I have had this machine for a few years now and still love it. This thing is a beast. I mostly use it to rough cut large stock and have even used it to mill smaller logs. The motor is strong, blade changes are fairly easy with some practice, and the dust collection works very well. My only recommendations would be to purchase an extra set of bearings for the blade guides, and a set of Timber Wolf tires. That being said it did take me almost 2 years of pretty heavy use to wear out the factory parts. The only issue I have had is that this saw will not run a 1" wide blade with out excess vibration. Best I can figure it's because of the wheel width being 1"?

Anonymous Reviewer
So Far so Good 01/29/2017 3:56:00 PM

First one i ordered was badly damaged but was quickly replaced - set up went smoothly, runs quiet and cuts well

Anonymous Reviewer
01/28/2017 1:00:07 AM

No feedback given

Q & A

Common Questions and Answers about the G0514X2:

Q: How does the foot brake work?

A:The foot brake shuts the motor off while simultaneously transferring the force you apply to the pedal to a brake shoe inside the lower wheel pulley, which slows and stops the wheels faster than they would ordinarily.

Q: What is the advantage of having double ball-bearing blade guides over singles?

A:Double ball-bearing guides don't provide any advantages for 1/2" or smaller blades, but they do provide a much greater level of support for 3/4" and wider blades. This is important if you're planning on doing a lot of resawing or other straight cutting where a high degree of accuracy is needed.

Q: What are the pros and cons of ball-bearing blade guides?

A:Ball-bearing guides are designed to maintain contact with the moving blade, providing a constant level of support with minimal blade friction. They are extremely durable, maintenance-free, and typically the fastest and easiest to adjust because they can be accurately positioned by eye, rather than requiring a feeler gauge or dollar bill, such as with block or disc-type guides. The downside of ball-bearing guides is their comparatively smaller surface area of support than provided by blocks or discs. However, this is usually only a concern with blades larger than 1/2" wide, unless the saw is equipped with double guide bearings.

Q: What are the benefits of having a rack-and-pinion table tilt?

A:The main benefit is simply ease-of-use and precision adjustability. Without the rack-and-pinion, you would have to muscle the large cast-iron table into a precise position, and then try to hold it in place while you tighten the locks-not an easy task. Another added benefit of this design, however, is the additional stability and support the rack post provides to the back-end of the table.

Q: What is the benefit of having cast-iron trunnions over aluminum trunnions?

A:Cast-iron trunnions give the table a more solid, robust support system, allowing it to better resist any flexing or twisting that may occur from really heavy workpieces being set on the table, especially on the outside ends of the table around the blade slot.


FAQ (Frequently Asked Questions):

Q: What are the pros and cons of Cast Aluminum versus Cast Iron Wheels?

A:The heavier mass and weight of cast-iron wheels reduces vibrations and creates a flywheel-effect, which helps the blade maintain a consistent speed during heavy cuts and when resawing. The drawbacks to this added weight and mass are that it requires more energy from the motor to get the wheels and blade up to speed; and unless the saw is equipped with a brake, it also takes longer for the wheels to come to a stop after the saw is turned off. Aluminum wheels, on the other hand, are much lighter and require less time and energy to get up to speed and bring to a stop, which is why they are ideal for many hobby saws and those that will mainly be used for general-purpose rip cuts and crosscuts, such as with 4/4 (1") or thinner stock.

Q: What are the differences between ball bearing, block, and disc (a.k.a. "Euro style") guide blocks?

A:The main differences between blade guide types can be boiled down to four factors: (1) amount/quality of support, (2) amount of blade friction created from that support, (3) ease of set-up and adjustment, and (4) durability and maintenance frequency. Ball-bearing guides offer the best all-around balance of these four factors. Although they don't provide as much contact area for support as block or disc guides, they do maintain constant contact with the blade without greatly increasing friction. They are also the easiest to set up and tend to be the most durable. Disc guides provide the highest amount of contact area for support, but as with guide blocks, they must be positioned 0.004" away from the blade, which requires some type of gauge to be used for proper set up. Whereas some disc guides are fixed, similar to block guides, our Euro-Style disc guides spin with blade contact, which greatly reduces friction and the need for regular resurfacing. Block guides offer excellent support, but unless they're made from specialized materials to reduce wear or friction, they tend to fall behind the other guide types in all other categories.

Q: Can a wood bandsaw cut metal or vice versa?

A:The proper cutting speed for the majority of ferrous metals is under 300 FPM. The proper cutting speed for the majority of wood cuts is over 3000 FPM. Trying to cut metals on a wood bandsaw--at speeds 10 times faster than they should be--is dangerous and will likely result in a broken blade, damage to the bandsaw, and a really horrible cut. Cutting wood on a metal bandsaw is possible, but it would be tedious and slow, and likely would not produce a decent quality of cut. In addition, bandsaw blades for cutting wood are designed much differently than bandsaw blades for cutting metal. With that said, there are some soft, non-ferrous metals (such as aluminum) that can be cut at around 1500 FPM (if using the correct blade type). Although some of our wood bandsaws operate at approximately this same speed, the other components of these saws weren't designed to handle the metal chips and swarf that would be produced by the cut, which would likely result in minor damage to the machine and void the warranty. The bottom line is this: Always buy the right machine for the job!

Q: How do I know what type of blade I should buy?

A:Blade choice is typically determined by the type and purpose of cut, the hardness and thickness of wood, and the desired trade-offs between cutting speed vs. cutting quality. In general, a wider blade is preferred for cutting straight lines because the blade tends to wander less, and a narrower blade is preferred for cutting curves because it has a much tighter minimum cutting radius. The two main types of blade teeth are "Hook" and "Raker". Hook teeth tend to cut faster and leave rougher results, while Raker teeth tend to cut slower and leave smoother results. There are additional types of teeth, such as Skip, Positive Claw, or AS-S, that are essentially modified versions of the Hook or Raker tooth shapes, but with slight changes to the cutting angle, gullet-to-tooth ratio, tooth set, etc. to provide unique advantages for special types of cuts.

Q: What type of blade do I need for resawing?

A:Generally speaking, you'll want to use a wide blade (1/2" or larger) with "Hook" style teeth (or "Positive Claw" on Timberwolf blades) and a low number of teeth per inch (TPI). A wide blade helps ensure cuts are straight and the Hook style teeth have large gullets for removing material as the blade passes through the workpiece.

Q: Which saw is best for resawing?

A:The key specs for resawing are the maximum cutting height and a larger motor size. Due to the amount of material being cut at one time, resawing puts a lot more strain on the motor than other types of cuts, so generally speaking, the more power the better. If you're using the proper blade type (a hook-type blade with few TPI) and a modest feed speed, you can get by making the occasional rip cut using a 1 HP-2 HP motor. Otherwise, if you plan on making regular resawing cuts, you'll get the best results with a 3 HP or larger motor.

Q: My bandsaw blade came with a tag on it that said "Recommended for cutting wood or soft non-ferrous metal." Does this mean I can cut metal with my wood bandsaw?

A:Just because the blade is recommended for both wood and soft, non-ferrous metal (e.g. aluminum, copper, etc.), it doesn't mean your wood bandsaw is suitable for cutting both types of material. It is important to keep in mind that the blade you bought may also be used on other types of bandsaws, such as our G0640X or G0621X, which are specially designed to cut both wood and metal.

Q: Can I still use my bandsaw without connecting it to a dust collector?

A:Yes, this is possible, but we don't recommend it. Without using a dust collector, the dust will quickly pile up in and around your machine, resulting in additional cleaning time later. Besides making a mess, fine dust can be harmful to your respiratory system. It is a better choice to connect your bandsaw to a properly designed dust collection system that at least pulls the recommended minimum CFM from each dust port on the machine.

Q: What is the purpose of the pin that fits in the blade slot opening at the end of the table?

A:All bandsaw tables are inherently weaker on the outside half of the table. This is due to the slotted opening that allows the blade to pass through the table during blade changes. The table pin helps reinforce the two sides of the table around this slot, so they remain aligned with each other and keep the table flat. For this reason, it is extremely important to always keep the table pin firmly installed, unless you're changing blades.
