Item #: G0861
Model # G0861
Overview

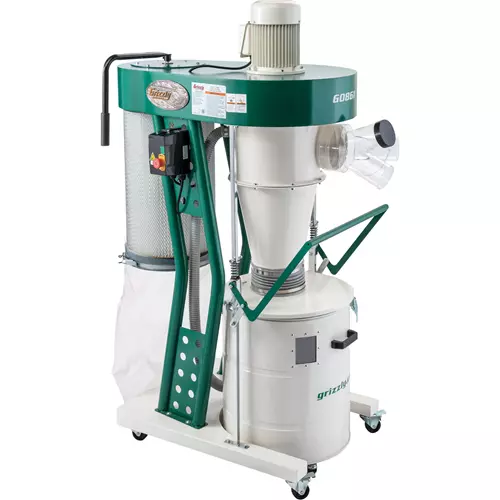

You'll be absolutely amazed with our new lineup of high quality and extremely affordable cyclones! The G0861 2 HP Cyclone Dust Collector brings big power in a portable, compact profile at an amazingly low price. Made to our strict tolerances in a Taiwanese factory exclusively for Grizzly, you can buy with confidence knowing that you have a collector built for the job! Handle up to 3 machines thanks to the massive 7" intake hole with three way splitter and 1023 CFM of airflow capacity. Swivel casters for easy mobility and a wireless remote make this collector the ultimate in workshop convenience. And don't forget the built in crank handle for easy pleated filter cleanout - a few back and forths with this handle and you're ready for the next job!

Made in an ISO 9001 Factory

G0861 SPECIFICATIONS

  • Motor: 2 HP, 220V, 3450 RPM, 9A
  • Intake hole size: 7"
  • Impeller: 13" welded steel
  • Collection drum size: 20 gallons
  • Max airflow: 1023 CFM
  • Max static pressure: 10.9"
  • Footprint: 39"L x 31"W
  • Approximate shipping weight: 294 lbs.

    G0861 FEATURES
  • Includes collection drum with quick-release handle
  • Two stage operation for ultimate dust collection
  • Powder coated paint
  • Swivel casters
  • Includes wireless remote control
  • Lift handle and roll drum for easy sawdust disposal
  • Pleated filter with paddle brushes and crank handle for max air flow efficiency
  • Unique vacuum equalizer built into collection drum for use with disposable plastic bags
  • Wireless remote

    Made in an ISO 9001 factory

  • Reviews

    9 Customer Reviews (4.9 out of 5 stars) : Sign in to write a review

    Anonymous Reviewer
    Adapting to the 7" intake 07/31/2019 8:36:09 PM

    For those using 6" SDR35 for mains and having to adapt to the 7" intake, I found the Fernco flexible coupling model 1051-66 to be a great solution without requiring tape to build up connections, etc. I ground a mild bevel on both ends, added a bit of soapy water, and the fitting fits snug on the 7" intake and a 6" SDR35 Bell end. Local big box only carries a few Ferncos. I got mine online at supplyhouse.com.

    Great unit all around. Same damaged packaging that others experienced but all the parts were there. Paint on part of impeller housing was bubbled up but I resolved the issue with customer service. Looking forward to significant dust reduction in the shop.

    Anonymous Reviewer
    Worth the wait. 07/17/2019 9:18:49 PM

    I bought this back in March, but they were back ordered. I really thought about doing something different, but then decided that I really wasn't in any big hurry and decided to wait for it. Well, finally in June it is shipped and I get it. The boxes had some damage to them, but the contents were fine. When you read the instructions, where they tell you to have a couple other people around to help you put it together, heed this instruction. There were a couple times where I could not have put this together without the help of two of my grandsons (ages 22 and 18). Assembly instructions were pretty clear and concise. The unit itself is quite compact (which was one of the features I was looking for. Overall, this was a great replacement for my G1029, that I have owned for close to 30 years. As good as that one was, it just couldn't keep up with my newer, larger capacity machines...this new one DOES

    Tom K
    Works as it should 04/14/2019 12:10:45 PM

    I give the dust collector and customer service 5 stars, as for shipping one of the three boxes showed up covered in oil and bottom open with pieces hanging out and missing main support leg the drum lid looked like it was used for a Frisbee and then touched up (repainted) by a 5 year old. I received this unit almost three weeks, today I did receive the missing and damaged parts after a few phone calls. Once again customer service was great I just have had no luck with there shipping company this is the third time I have had stuff broken or missing during shipping (freight). Now for the good stuff the wireless remote works great and this unit has some great vacuum. Some say it is load I think it is quieter then the single stage, my router is louder. This unit is around 78 db. Putting together was not that bad you will need some help putting lifting the main part of the unit on to the supports. Picture in book shows two black caps for the inlet ports mine only had one.

    Anonymous Reviewer
    Great product 04/13/2019 12:46:10 PM

    Im upgrading my shop something I should have done years ago. This dust collector is amazing no more sawdust every where.The machine is very well made, you will need two people to assemble the motor and fan unit as it is heavy and awkward.

    Anonymous Reviewer
    Great Dust Collection 03/13/2019 4:19:09 PM

    Its a bit louder than my table saw but all vacuums make noise I suppose. Gave it test run and I sucked two 5 gallon buckets of saw dust up and all but a tablespoon went into the collection drum! The remaining tablespoon dropped into the bsg under the filter! Highly recommended! Great bang for your buck!

    Sloan B
    03/10/2019 1:14:29 PM

    great machine, More suction than I expected, will probably order another one.

    Anonymous Reviewer
    very good machine 02/18/2019 7:10:43 PM

    Have had it since mid Dec. Separates dust from chips very good. When they say it takes two to assemble it, believe them. The impeller and motor assembly was awkward with two people. Very nice machine,the remote is very handy. Just clip it to a button hole and its always close.

    Anonymous Reviewer
    01/28/2019 6:19:29 PM

    I put this together and there where 5 bolt holes that where not taped so I had to tap them. over all I like it.

    Anonymous Reviewer
    Perfect for my basement shop 12/28/2018 7:37:25 PM

    I don't normally write reviews, but I know the dust collector is an agonizing purchase and this is a new model that people may be curious about. As background, I made my decision basically by looking for the best value under $1000. Also, I have a small basement shop so I wanted something with a smaller footprint that could be moved around at first but also powerful enough that I can set up ductwork once I am happy with a final location.

    Shipping: I order this is during Black Friday and it arrived via Saia Freight right before Christmas. The website said units would be available in December so I really appreciated Grizzly following through on that claim and getting this to me before the holidays. I was expecting a call from Saia freight to schedule delivery, but did not get one. This was immediately forgiven when I walked into the garage and the driver was pulling the last of three boxes up my driveway into the garage. This was unexpected and greatly appreciated, UPS Freight has a policy that does not allow their drivers to do this. I was able to carry most of the machine down to my basement by myself with ease, but the motor comes attached to the big green head unit so was too big and awkward. It was very easy with a second person.

    Packaging: The packaging really couldn't have been any better. There was not a nick, scratch, or dent on any part of the machine.

    Assembly: The instructions were plenty clear, and the whole process went pretty easily without frustration. It takes a while as there are a lot of bolts to tighten, but no difficulty interpreting instructions. I like trying to assemble things myself even when the instructions say to use a helper, but you really do need two people to mount the top unit. You basically need to lift it and balance it on 4 legs which is incredibly unstable until you get it bolted in place. Not bad with two people and the rest of the assembly was easy. I did have a small issue with the included hardware. There were not nearly enough 1/2 inch flange bolts included and too many 3/4 inch flange bolts. The bolts provided did not match the parts list, which did not match what the instructions said to use. I picked up a few dollars worth of bolts at the hardware store and completed the assembly no problem.

    Finish: The finish on this machine seems quite impressive. I was clumsily banging it with a wrench during assembly without causing a blemish. I didn't notice any areas where the finish would start to peel off as I've seen on other shop equipment.

    Design/Function: I'm not an expert on this stuff and this is my first ever dust collector. I know there is a lot of science and debate behind what makes for effective dust collection, but this will suit my needs just fine. I haven't done anything yet other than hook it up to my table saw via some flex hose, but it was getting every bit of visible dust. The overall design of the machine is really nice, it moves around very easily and the lever used to remove and seal the dust bin works smoothly. The remote works great. I went upstairs and was able to turn it on and off in my living room. I have two extremely minor complaints. Changing the bags can be a little finicky, the bag holder I think could have been engineered to make this a little easier. The other minor negative is that the directions tell you to mount the cyclone so the inlet ports face straight out. It would be nice if you configure the ports to face in different directions, but this won't end up mattering much for me. It is a loud machine, I definitely plan to wear hearing protection while its running. This won't bother me, but might be a nuisance for people upstairs who would be able to hear it. I may look into some solution to muffle the sound at some point.

    Overall I am very happy with this purchase so far and look forward to getting the most out of this machine.
