Item #: T27621
Model # T27621
Overview

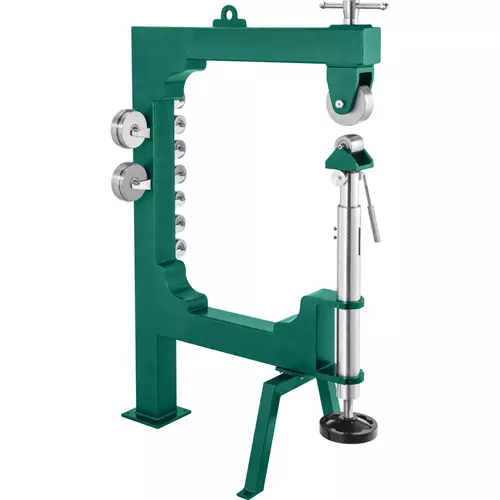

It's hard to match the English Wheel when it comes to forming smooth, compound curved parts with sheet metal. Choose from the nine anvils and three 6" top dies included to match any project need. The 32-1/2" throat capacity provides ample workpiece clearance, while anvil pressure is easily adjustable with the lower handwheel to form the perfect radius. Cast iron and steel construction provides a rock solid foundation for this new take on a classic tool.

Specifications:

  • Throat capacity: 32-1/2"
  • Overall dimensions: 26-1/2" wide x 65" high x 47" deep
  • Mild steel capacity: 16 Gauge
  • Aluminum capacity: 14 Gauge
  • Top die diameter: 6"
  • Approximate shipping weight: 530 lbs.
Features:
  • Cast iron and steel construction
  • Three 6" Top dies: flat, narrow, wide
  • 9 Anvils: 1/8" dome, 1/4" dome, 1/2" dome, 3/4" dome, flat 2-7/16", flat 3", step-roller, narrow groove, and wide groove
  • Adjustable pressure handwheel
  • Quick-release anvil lever
  • Gusseted corners
  • Lifting eyelet
Reviews

1 Customer Review (5 out of 5 stars) : Sign in to write a review

James N
10/12/2017 3:31:50 PM

Your tools are great, but the crating needs lots of help. This is the second large tool I have purchased in the last few months and each time they have dislodged in the crate.
The English Wheel only received a couple of scratches, but the Planishing Hammer was damaged. You handled the problem fast and I am well satisfied. A little jar of paint will fix the English Wheel. Thanks
