Overview

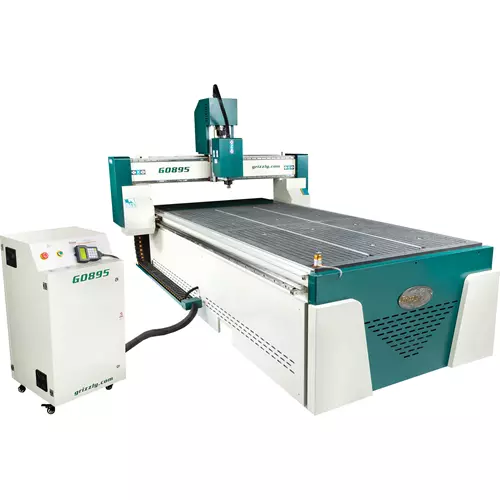

G0895 4' x 8' CNC Router

Unleash the full potential of your shop by adding this CNC.

The full-sized G0895 4' x 8' CNC router has the capacity to fit a full 4' x 8' sheet of plywood with ample spindle clearance for those thicker workpieces such as live edge slabs.

The massive work area features a 6-zone vacuum table with a 10 HP pump to secure workpieces during even the most aggressive cutting operations.

Between the 6 HP, 18,000 RPM spindle and the AC servo-controlled X and Y axes that approach rapid speeds of 1,600 inches per minute, this router is ready to remove some serious material, fast.

The ER32 collet system allows for a wide array of tooling options and the included tool setter makes it fast and simple to set them up.

An air-cooled spindle and an automatic oiler system mean no extra hassle with cooling systems or maintenance schedules.

The hand-held controller allows you to store programs to its hard drive or load programs from a flash drive. The integrated controller can even connect directly to you PC for ultimate productivity gains.

Like all Grizzly machines, the G0895 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0895 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your machine.

The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the CNC are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Spindle motor: 6 HP, 220V, 3-phase, 16A
  • X-, Y- & Z-axis motors: AC Servo, 7.1A
  • Cutting area: 51" x 98-1/2"
  • Z-axis travel: 11"
  • X & Y Travel Speeds: 1500 IPM
  • Z Travel Speed: 400 IPM
  • Spindle Speed: 0-18000 RPM
  • Collet Type: ER32
  • Collet Size: 1/4" and 1/2"
  • Footprint: 122-1/2" L x 56-1/2" W
  • Overall dimensions: 85" W x 124" D x 72" H
  • Approx. shipping weight: 2535 lbs.

FEATURES:

  • Yaskawa 850W Servo Motor
  • Taiwan HIWIN linear guide
  • German WHM rack
  • 10 HP Vacuum Pump
  • 6-zone vacuum table

Please note: This item does not include COD/CAM software, see item T28100 or T28101 V-Carve software
