Overview

Finally, a benchtop jointer with a helical cutterhead!

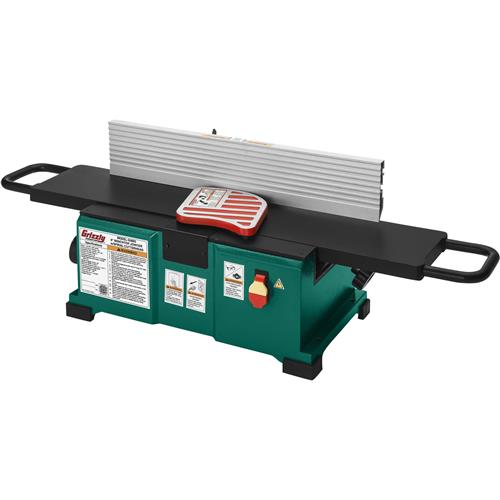

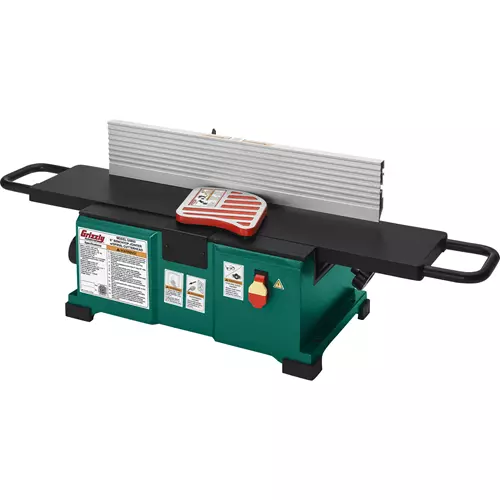

Forget the hassle of changing knives and reap the benefits of carbide inserts with the Grizzly G0893 6" Benchtop Jointer with Helical Cutterhead.

Each insert can be rotated up to three times to provide a new sharp edge and leave silky-smooth surfaces on even the most figured hardwoods.

Exclusively featuring: grab handles on the table ends for portability, a baked-on table coating that provides a smooth-gliding surface and a built-in dust collection system that can be combined with a separate dust collector. This feature-packed, one-of-a-kind benchtop jointer won't disappoint!

Like all of the Grizzly jointers, the G0893 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0893 manual was written by our U.S. based Documentation Department is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your jointer.

The Grizzly Technical Support team is U.S. based. Parts and accessories for jointer are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

Certified to CSA & UL standards

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 120V, single-phase, 12A
  • Maximum width of cut: 6"
  • Maximum depth of cut: 1/8"
  • Cutterhead diameter: 1-7/8"
  • Cutterhead type: 3-row helical with 18 inserts
  • Insert size & type: 15 x 15 x 2.5mm, indexable carbide
  • Cutterhead speed: 8,000 RPM
  • Table size: 6-1/4" x 30-3/8"
  • Fence size: 22-1/2" L x 4-5/16" H
  • Minimum workpiece length: 8"
  • Minimum stock thickness: 1/2"
  • Dust port size: 2-1/2"
  • Footprint: 11" x 19-1/2"
  • Overall dimensions: 36" W x 19" D x 12-1/2" H
  • Approx. shipping weight: 56 lbs.

FEATURES:

  • Fence stops at 45°, 90° & 135°
  • Grab handles on table ends for portability
  • Aluminum tables with low-friction coating
  • Built-in dust collection system with 2-1/2" dust port and collection bag
  • Two push blocks included
Reviews

28 Customer Reviews(4.9 out of 5 stars): Sign in to write a review

Anonymous Reviewer
As expected 07/31/2020 11:22:54 AM

Out of box I had a problem with chips staying inside machine while using supplied bag
. Talked to your tech and he was very knowagable about machine and with his suggestions I am now very satisfied with machine and your suppirt

Anonymous Reviewer
Great product for the price 07/23/2020 12:00:09 PM

I have used it a few times, the wood is very smooth. Did some joining with it very nice indeed.

Anonymous Reviewer
Very well made. 07/13/2020 12:51:45 PM

Machine arrived right on time. Packaged very well.
Ive used it many ten times and it works great. Cutting head was adjusted and all I did was plug it in and go.

Anonymous Reviewer
Nice size, and does a great job 07/06/2020 5:16:59 AM

I bought this over a month ago, and have been using it since. It does a nice job, is compact, and very useful!

Anonymous Reviewer
I should have bought.. 07/02/2020 3:23:31 PM

I should have bought this jointer sooner. As an amateur hobbyist looking for professional quality, this jointer gave me that edge. Pun intended.

Anonymous Reviewer
07/01/2020 6:03:42 PM

No feedback given

David T
Love this tool! 07/01/2020 10:07:53 AM

No feedback given

Anonymous Reviewer
06/14/2020 1:14:56 AM

No feedback given

Mathew
05/31/2020 7:03:05 PM

No feedback given

Anonymous Reviewer
05/17/2020 7:48:43 PM

No feedback given

Anonymous Reviewer
Great Jointer 05/17/2020 3:06:44 PM

I received my jointer about 3 weeks ago and couldnt be happier.

Take your time assembling, some of the mating Surfaces are very rough from machining. I oiled and stoned all mating surfaces.

Adjusted and/ or checked adjustments and it works awesome!

I have already finished shelves and doing built ins now.

Anonymous Reviewer
05/16/2020 11:21:04 PM

No feedback given

Anonymous Reviewer
It's a nice compact unit and with the spiral cutter head it's not as loud. 05/16/2020 2:08:51 PM

With this jointer I now have 7 Grizzly machines, that said this did have two broken parts when I got it but the great people at Grizzly had replacements to me in no time!

Terence S
05/06/2020 3:06:27 PM

A great Jointer for the price. My only gripe is that the user manual/instructions were a little confusing and the quality of the printed material was not that good. It was hard to identify some of the parts for assembly and adjustment.

Anonymous Reviewer
05/05/2020 10:19:02 PM

I am very pleased with the grizzly Jointer. It has been used extensively in the past month and I am still pleased. I would recommend this to anyone.

Larry T
Easy to Setup 04/30/2020 12:45:53 PM

I bought this machine to square up two sides of rough kiln dried hardwoods.It was very easy to setup and put it to work. I'm very pleased with it and am most pleasantly surprised with the noise level as compared to a much older jointer with a traditional cutterhead.

Anonymous Reviewer
Great machine (Low dust, amazing cutterhead) 04/19/2020 12:30:11 PM

Been using this machine for about 5 weeks now. I'm impressed by the lack of dust this jointer produces and the smooth finish it puts on my work. While the finish isn't perfect, just take 220 grit sand paper and your done. The setup wasn't too difficult since the manual is poorly written which isn't a big deal. Overall, this is a great little machine for smaller projects.

Joseph C
Just go ahead and buy it! 04/17/2020 3:10:15 PM

This was my first jointer, everything was packaged up perfectly, the fence was a bit more than i expected to have to put together but evrything went together without issues. Some products from other manufacturers come with issues where you have to retap a whole for a bolt, or things just dont line up properly. With Grizzly everything was perfect. Jointer runs great as it should and the spiral cutter head cuts with a beautiful finish. Milling is a breeze with this jointer. Just go ahead and buy it stop looking at other brands lol.

Ken D
04/09/2020 4:47:05 PM

Very well-made jointer with the superior spiral cutterhead. Would definitely recommend this to anybody who needs a 6 inch jointer. The dust collection system is also very good. Until I hook up the vacuum Ive been using the provided bag which works so well theres almost no additional cleanup needed other than to dump the bag. The spiral head machine runs quieter my old knife model and Im sure when the cutters become worn and dull its going to be so much easier (and of course less ($0) expensive) to simply rotate the various cutters than to put new blades in.

Anonymous Reviewer
Great portable product 03/27/2020 1:32:04 PM

Well made highly portable, cutter gives a smooth finish.

Anonymous Reviewer
great jointer at a low price 03/20/2020 4:07:30 PM

We bought it for the spiral carbide cutterhead. It did a very good job on a piece of curly maple, when I took shallow cuts. On everything else, it was smooth and quiet.

Anonymous Reviewer
hoped for good got better 03/14/2020 4:14:43 PM

I have a small shop this jointer fits just right, but it is still capable of performing with the larger tools in this series. Would definitely purchase again. Very happy with my purchase.

Anonymous Reviewer
03/13/2020 3:48:20 PM

Bought the 6 spiral cutter joiner. Wasnt sure this was the right tool when I purchased it. It was. A great small shop joiner. Works great and is a pleasure to use.

Anonymous Reviewer
Grizzly jointer is well engineered and does all that I expected 03/13/2020 2:40:53 PM

Have not had a chance to put it to the test but I can see that it is well designed and easy to use. Other than the fact that it took so long to get here and your people did not follow my instructions on notifying me before shipping, all is good. Shipping was to my door and arrived In good shape, no damage. Will continue to order from grizzly in the future. Am happy with the service.
Steve Kibbee

Anonymous Reviewer
Good enough! 03/12/2020 5:50:14 PM

I've used my 6" Benchtop jointer a few times, and for a machine that I can take off a shelf, carry to a bench, do some basic jointing, and put back again, it performs as advertised. The surfaces are smooth and true. I thought I wouldn't be able to purchase a jointer because of space limitations in my garage, but this one works.

Anonymous Reviewer
Great Product 01/28/2020 4:44:51 AM

No feedback given

Anonymous Reviewer
Very good product 12/21/2019 7:18:19 PM

The UPS driver delivered my Jointer today . Package was in good condition unboxing was without incident . After installing the fence I took a piece of a 4/4 Ash board that was rough sawed and ran it through the jointer. Right out of the box I got a glue ready board. Tables needed NO adjustment. The extra length of the table is very useful. This jointer is a great addition to my shop. It is light years ahead of my old jointer. The helical cutter head is a vast improvement.

Wayne L
10/17/2019 6:39:10 PM

I am very happy with the jointer. I think it is a great value for a small jointer with a spiral cutterhead.
