SKU: G0613

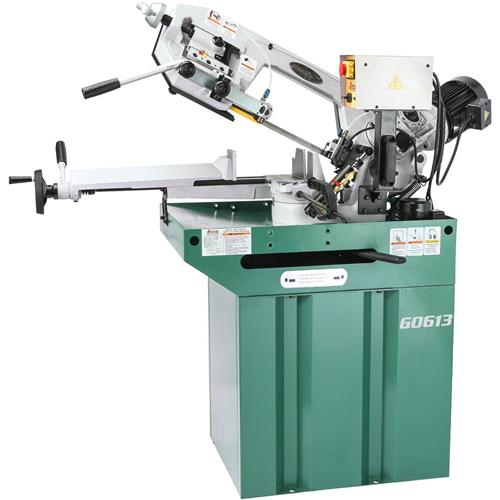

Model # G0613
Overview
This saw is built for accuracy and production! Easy angle set-ups between 0 and 60 degrees means no wasted time between cuts. Lever controlled blade guide locks allow adjustments right up to the work piece for optimum support and the blade guides have fully adjustable ball bearings so you know you're going to get straight cuts. And when you're done, use the quick release lever and stock length stop to get on with the next cut. It's fast and simple to use!

Features:

  • Swivel mast with degree scale
  • Centralized control panel
  • Heavy-duty all steel, one piece base
  • Adjustable hydraulic downfeed (just dial your feed rate)
  • Deep throated vise with lever lock
  • Quick release vise
  • 0° to 60° swivel
  • Tooth selection chart
  • Built-in coolant system
  • Automatic shut-off
  • Adjustable ball bearing blade guide system
  • Blade wheels have heavy-duty ball bearings

Specifications:

  • Motor: 1 HP, 110V/220V, single-phase, prewired 110V
  • Pump motor: 1/8 HP, 110V/220V, single-phase, prewired 110V
  • Drive: Sealed worm gear
  • Blade size: 82" x 3/4"
  • Included blade size: 82" x 3/4" x 4/6 VP TPI (similar to Grizzly model H9726)
  • Blade speed: 314 FPM
  • Miter cutting capacity: 0° to 60°
  • Cutting capacities:
    • 90° round 7"
    • 90° rectangular 7" x 8-1/2"
    • ±45° round 4-1/4"
    • ±45° rectangular 4" x 4-1/4"
    • +60° round 2"
    • +60° rectangular 2-3/4" x 2"
  • Floor to table height: 35-5/8"
  • Overall dimensions: 63" L x 29-3/4" W x 66" H
  • Approximate shipping weight: 460 lbs.
Reviews

16 Customer Reviews (4.9 out of 5 stars) : Sign in to write a review

curtis B
Imoney well spent 02/06/2019 2:09:34 PM

Fast and accurate especially at 45 degrees ,industrial quality,great for production .

Anonymous Reviewer
Very happy with purchase. Works well as advertised 01/26/2019 12:41:58 AM

No feedback given

steven P
11/15/2018 4:38:24 AM

No feedback given

Anonymous Reviewer
02/08/2018 2:11:12 PM

i am extremely satisfied with the value and accuracy of this machine. This cut in 3x3 angel is out of the box . No check for squareness of blade or mitre stops!

Anonymous Reviewer
Fantastic Saw 01/19/2018 1:13:59 PM

I bought the saw over a month ago and it's super accurate right out of the crate! It's heavy but assembly was very quick and simple it's really just bolting it to the base. Everything was adjusted and set up to run. Highly recommend it!

DOYLE L
great saw for the price. 12/19/2017 11:39:04 AM

the saw has a lot of features for the price, we are using it every day.

Anonymous Reviewer
Highly recommend 09/17/2017 2:04:24 PM

I own an offroad parts manufacturing company and use this tool extensively for over a year now. It works great. I cut tubing, bolts, blocks of steel, aluminum and much more.

Sean F
09/10/2017 3:34:59 PM

Very happy with purchase. Very easy to assemble, but you will need a strong friend or some sort of lift. Everything was accurate right out of the box. I am actually a woodworker, but incorporate steel in many projects. I wanted a saw that was capable of making accurate miters, with a good size of material range. This saw has not disappointed me! I would buy it again and highly recommend it!

Earth C
Awesome Saw, fair price and fast delivery 09/03/2017 11:25:42 PM

Purchased to cut Superconductor, a mix of copper and Titanium/Niobium alloy. This machine cuts it like butter along with Damascus steel and Timascus. I saved $500 cutting my own material in just its first use over a 17" bar of Super. Thanks Grizzly.

Anonymous Reviewer
Highly Recommended 08/28/2017 2:50:21 PM

I needed a repeatable quality metal band was that was easy to change cutting angles, and this is it. Even the blade that it comes with is high quality. We have a lot of steel in the first week of ownership and it hasn't lost it edge,very nice! The angle cutting pivot system is tight and precise and the feed system are both very easy to adjust.
Grizzly has made me a believer in there products so far.
The only negative so far is is the blade lubrication system is messy and splashes all over for some reason, i have adjusted the nozzle volume, helps a bit but i have oil stains on the floor one foot around the machine. I havent had a oil lube system before ,maybe this is normal? .

Anonymous Reviewer
06/05/2017 11:33:35 PM

No feedback given

Anonymous Reviewer
Great saw 05/28/2017 2:22:02 AM

The swivel head saves time and is great for fabrication work.

Joseph O
Works great 05/12/2017 9:14:07 PM

It's like having a miter saw for metal. Quick and easy setups. So far it's been great.

Anonymous Reviewer
Great saw 04/14/2017 1:37:35 PM

I bought this saw a week ago and I am seriously amazed. I own a fab shop and have been using a large band saw that only cuts straight for my length cuts and then using a chop saw to do my angle cuts. After getting this saw installed it was all set up perfectly from the factory cuts super square come with a nice blade very quality and solid machine I was a little worried of quality because of the price but they did not cheap out on this thing. Definitely will be buying some more grizzly tools.

Steve P
Love the saw 01/23/2017 4:45:10 AM

I love the saw. It's so easy to make different cuts and fast. Love the design

Kyle
Great product 12/24/2016 10:09:54 PM

We bought this model for our Sheetmetal shop and I got it installed last week really amazed how easy it went together we have cut red iron,pipe and unistrut it cuts smooth and the different angle cuts work perfect. Would recomend this one to anyone.
