Overview

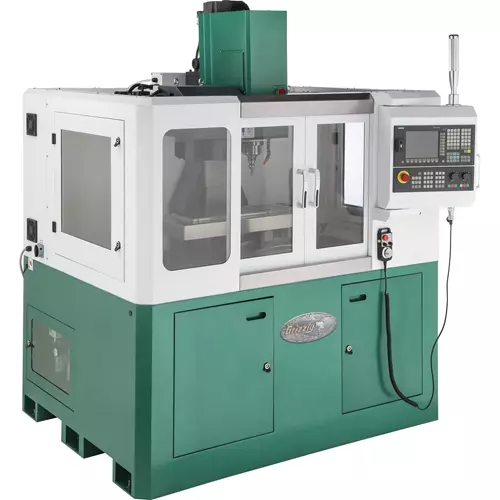

Built with production in mind, this 8" x 27" Enclosed CNC Mill w/Auto Tool Changer features a 3 HP BT30 driven spindle. Paired with an 8-position automatic tool changer and a powered pull stud, it's the perfect recipe for making some serious chips and doing so quickly. The hands free tool changer eliminates the need to babysit the machining cycle and allows you to maximize your most valuable resources, time. With the Siemens Sinumerik CNC controller at the helm and powerful servo motors driving ball screws on all axes, the machine is built for accuracy. With a 10,000 RPM spindle and rapid speeds of 400in./min. this machine can produce repeatable parts, fast! All this wrapped in an enclosed cabinet with a high flow 13-gallon coolant tank and you have a machine ready to go to work for you.

Specifications
  • Table Size: 8-1/4" x 27"
  • Longitudinal travel: 12-1/4"
  • Cross travel: 7-7/8"
  • Vertical travel: 11/13/16"
  • Table T-slots: (3) 5/8"
  • Max workpiece weight: 220 lbs.
  • Spindle motor: 3 HP, Servo, 3-Phase, 220V, 60 Hz
  • Spindle taper: BT30
  • Spindles speeds: Variable, 50-10,000 RPM
  • Tool changer: 8 positions
  • Tool change speed: 6 seconds
  • Max tooling weight: 12 lbs.
  • Spindle centerline to column: 11"
  • Coolant tank capacity: 13 gallons
  • Rapid speed: 400 in./min.
  • Position resolution: +-0.0006"
  • Repeat position resolution: +-0.0006"
  • Overall dimensions: 71"L x 65"W x 79"H
  • Approximate shipping weight: 3350 lbs.

    Features
  • Siemens® Sinumerk CNC controller
  • Servo motors with ball screws on all axes
  • Built in pendant/hand controller
  • Powerful 3 HP main motor
  • 50-10000 RPM spindle speeds
  • Easy access to table
  • Hands-free tool changes with 8-position automatic changer
  • Rapid table speeds of up to 400 in./min.
  • Heavy duty BT30 spindle included
