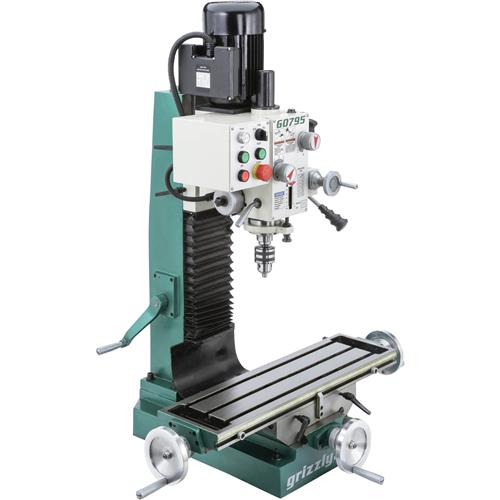

G0795 8" x 28" 1 HP HD Benchtop Mill Drill

Only Grizzly could pack so many big features into a benchtop machine!

This great mill drill sports some of the same features found on much larger machines.

The G0795 comes with a dovetail column, a variable-speed, 1 HP, 220V motor, an R-8 spindle and a large 7-1/2" x 27-1/2" work table.

The mill drill base is made from heavy cast iron to ensure cuts are smooth and vibration free.

This is an excellent value and great for seasoned machinists or those just starting out.

Like all of the Grizzly mill drills, the G0795 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects. (Consumables are not covered by the warranty.)

The G0795 manual was written by our U.S. based Documentation Department is packed with useful information. The complete and easy to read manual makes it easier to assemble and maintain your mill drill.

The Grizzly Technical Support team is U.S. based. Parts and accessories for the mill drill are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:
  • Motor: 1 HP, 220V, single-phase, 6.8A
  • Max. distance spindle-to-table: 16-1/8"
  • Table size: 7-1/2" x 27-1/2"
  • Table travel (X-, Y-Axis): 14-3/16", 7-1/2"
  • Head travel (Z-Axis): 13-3/4"
  • Spindle travel: 3"
  • Spindle speeds: 6, 115 - 1700 RPM
  • Spindle taper: R-8
  • Head tilt: 45 degrees left & right
  • Table T-slots: 7/16" W, 2-1/2" OC
  • Overall size: 39" W x 49-1/2" H x 30-1/2" D
  • Base footprint: 14" W x 22" D
  • Approximate shipping weight: 496 lb.

FEATURES:

  • Reversible spindle and tapping controls
  • Coarse/fine spindle downfeed with stops
  • 6-Speed gearbox
  • Precision-ground dovetail ways and column
Reviews

2 Customer Reviews(5 out of 5 stars): Sign in to write a review

Anonymous Reviewer
06/06/2017 1:19:59 AM

I am very happy with the G0795. Great value for the price. One issue however is turning on the spindle in high gear from a cold start causes the power supply fuse blows. I find that if I start machine in low gear I can avoid this problem. Once machine has warmed up it can be started in high gear without issue. I ordered a handful of spare fuses just to be on the safe side. I followed the break-in procedure as outlined in the manual. The shop room temp averages 70 degrees F. Perhaps the gears are still to new and stiff and will eventually ease-up and not draw excessive amp on start up.

Mike
06/02/2017 12:02:47 PM

I have had my Grizzly HD benchtop for about 4 months now and It works great. I did have trouble with the centrifugal switch points burning out on the motor, but the customer service/ tech support team was quick with advice and a replacement. Top notch, I would definitely recommend this to someone looking for a benchtop type mill.
