Item #: G9901
Model # G9901
Overview

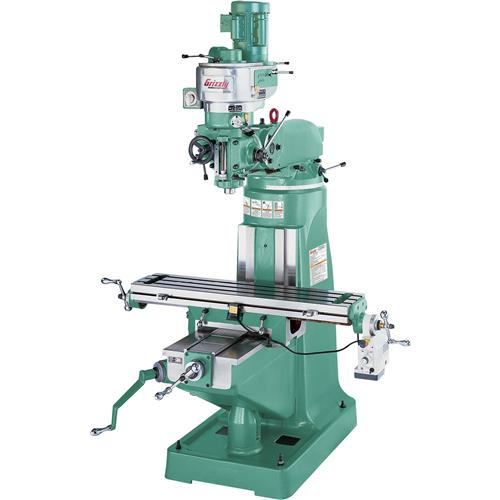

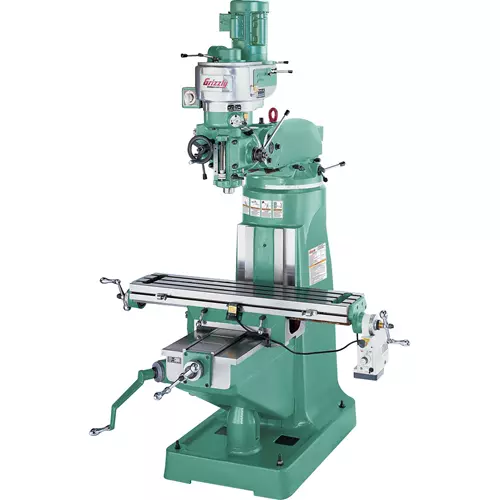

This is our most economical turret type knee mill with a 9" x 42" table. It has all the features that larger mills have like power down feed with auto-stop and return, longitudinal power feed and a 5" quill travel with a depth stop. The very heavy castings and large sliding surfaces give incredible performance and stability. And with the turret type head, the working capacities are quite large. Shop around, you won't find this kind of value in a mill of this type and size.

Features:

  • One-shot Pump Lubrication
  • Power Down Feed
  • Quill Feeds: 0.0019", 0.0035", 0.0058"
  • Auto Stop w/ Micro Adjustable Stop
  • R-8 Spindle
  • Longitudinal Power Feed
  • Hardened & Ground Table Surface
  • Chrome Plated, Precision Ground Quill
  • Adjustable Micrometer Depth Stop for Spindle

Specifications:

  • Spindle travel: 5"
  • Table size: 9" x 42"
  • Table travel (longitudinal): 25-7/8"
  • Table travel (cross): 12-1/2"
  • Max. dist. spindle to table: 18"
  • Max. dist. spindle to column: 20"
  • Knee travel: 16"
  • Head tilt: 45 degrees both ways
  • Head swivel: 90 degrees both ways
  • T-slots: T-slots: Three 5/8" slots, 2-1/2" on center
  • Range of speeds (RPM): 78, 98, 197, 278, 670, 850, 1700 and 2400
  • Motor: 2 HP, Single Phase
  • Base footprintL 36" x 24"
  • Approximate shipping weight: 2379 lbs.
Reviews

1 Customer Review (5 out of 5 stars) : Sign in to write a review

Dennis C
Great Machine For The Price 12/28/2017 1:01:19 PM

I was comparing several different Grizzly mills and then Grizzly put this one on sale Cyber Monday. So, Grizzly made the decision for me with the price. I had a bench mill/drill and decided to upgrade to a Bridgeport style mill. The transaction went well and the mill got here in a few days. I got the lift gate service and the driver had a difficult time getting it to the back of the trailer and turned on the lift gate, but he was very helpful and rolled it on his pallet jack to exactly where I needed it. BTW, I ordered a G0824 lathe two months before and he was the same driver. Now the mill, it far surpassed all of my expectations! Fit, finish and accuracy. I couldn't be more pleased. After having only ever used a mill/drill I really really like the power down feed. I would definitely recommend this product to anyone. And I would recommend Grizzly to anyone. I live in Louisiana and I went to Springfield earlier in the year to look at the lathes to make sure of what I wanted to order. Everyone there was helpful and a delight to interact with, everyone!
