Item #: G9902
Model # G9902
Overview

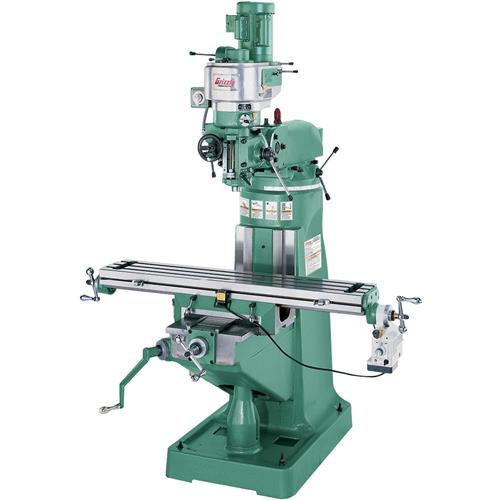

Need a little more table space? Try this 9" x 49" turret type knee mill. It has all the same great features as its little brother but it has the added table length necessary for those longer parts. This mill is an exceptional value. And of course with 2 HP, large slide surfaces and heavy castings, this milling machine will perform with amazing rigidity through some of the toughest jobs.

Features:

  • One-shot pump lubrication
  • Auto down feed
  • Quill feed/spindle rev.: 0.0019", 0.0035", 0.0058"
  • Auto stop w/micro adjustable stop
  • R-8 spindle
  • Longitudinal power feed
  • Hardened & ground table surface
  • Chrome plated, precision-ground quill
  • Adjustable micrometer quill depth stop

    Belt drive head Specifications:

  • Motor: 2 HP, 110V/220V, single-phase, TEFC, prewired to 220V
  • Spindle travel: 5"
  • Table size: 9" x 49"
  • Table travel (longitudinal): 30-3/4"
  • Table travel (cross): 12-1/2"
  • Max. distance spindle to table: 18"
  • Max. distance spindle to column: 20"
  • Knee travel: 16"
  • Head tilt: 45° both ways
  • Head swivel: 90° both ways
  • T-slots: 3 on 2-1/2" centers, 5/8" wide
  • Speeds: 8
  • Range of speeds: 78, 98, 197, 278, 670, 850, 1700 and 2400 RPM
  • Approximate shipping weight: 2412 lbs.
