Item #: G0516
Model # G0516
Overview

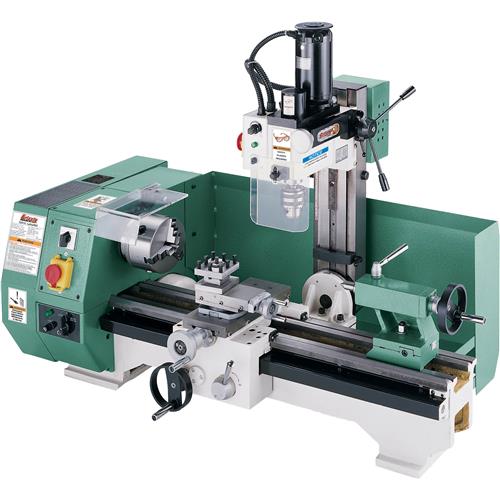

Precision, versatility and high quality in a small package are what you get with our new G0516 Lathe Mill Combo. The 6 speed lathe includes big machine features like a 4-way turret tool post, cuts both metric and inch threads, see-through eye shield, 0.8 HP motor and a 9-3/4" swing. The milling head features its own 0.8 HP variable speed motor, tilting column, MT#3 spindle taper and 8" of vertical travel. It bolts onto the back of the bed and is sturdy and versatile. This is an exceptional value and will make a great addition to any shop. Made in an ISO 9001 factory.

Specifications:

  • Swing: 9-3/4" (lathe), 12-3/4" (mill/drill)
  • Swing over saddle: 6"
  • Distance between centers: 21"
  • Lathe spindle bore: 0.787" (20mm)
  • Lathe spindle taper: MT #3
  • Mill/drill spindle taper: MT #3
  • Tailstock taper: MT #2
  • Tailstock travel: 1/2"
  • Cross slide travel: 4-1/4"
  • Compound travel: 2-1/4"
  • Spindle to work table: 9-1/2"
  • Mill head vertical travel: 8"
  • Mill T-slots: 3 @ 3/8" W, 20mm OC
  • Lathe motor: 0.8 HP, 110V, single-phase
  • Mill/drill motor: 0.8 HP, 110V, single-phase
  • Motor speeds: 1725 RPM (lathe), 6000 RPM (mill/drill)
  • Number of speeds: 6 (lathe), variable (mill/drill)
  • Lathe speed range: 150, 240, 490, 750, 1200, 2400 RPM
  • Mill/drill speed range: 0–2500 RPM
  • Range of threads (inches): 8–40 TPI in 12 steps (Gear changes required)
  • Range of threads (metric): 12 @ 0.4–3.0mm
  • Cuts LH threads
  • Approximate shipping weight: 556 lbs.

Standard Equipment:

  • 5" 3-Jaw chuck
  • 5" 4-Jaw chuck
  • 8-1/2" Faceplate
  • Cross slide table
  • 12 Change gears
  • Drill chuck with arbor
  • 2 Dead centers
  • 4-way turret tool post
  • Quick change collet set
  • Eye shields
  • Forward/Reverse switch with emergency stop
  • Milling vise
Reviews

6 Customer Reviews (5 out of 5 stars) : Sign in to write a review

CURTIS G
Great company and great product 02/01/2018 12:44:00 PM

Just learning to do this. The order was correct, no problems and the machine is very nice.

Robert H
More than paid for itself! 01/23/2018 4:45:35 AM

Bought mine in late 2007 - made a lot of little upgrades that helped a lot. Some of the jobs were a lot larger than the machine was designed for, but they still came out good. I kept mine inside the home - it is probably lighter than the combined weight of 2 typical adults standing on the same part of the floor.

Jay P
Very good product for the money. 09/27/2017 12:36:09 PM

It will take a lot of getting used to. The execution of much of the product requires refinement.
I have done a few jobs with it and they came out fine. Starting to add a few refinements

Anonymous Reviewer
06/16/2017 12:25:40 AM

No feedback given

Lon L
05/13/2017 6:45:13 PM

Great product. Love it. The shipping to Alaska was fair and proceeded well.

T. Munck
Customer Review 01/01/2015 5:09:48 PM

I received my milling vice for my G0516 Combo Lathe and was very pleased with it. I am not the CEO of some large company, my shop is 20x20 and I am the owner, worker, and every thing else. I am very pleased with your service and will use you every chance I can.

Thanks for helping the little guy!
