Item #: G1053
Model # G1053
Overview

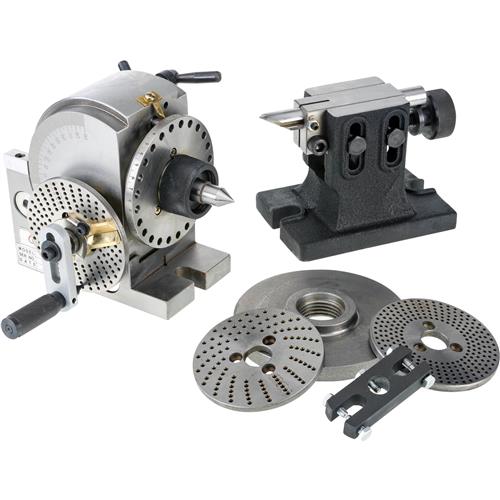

These high quality dividing heads are made with demanding care for precision gear-cutting, sharpening milling cutters, reamers, etc. Dividing heads come complete with 3 dividing plates, 1 tailstock, 1 chuck back plate, 1 center-dog and 1 center. Thread on nose 1-1/2" x 8 TPI. Ratio: 40:1

Specifications:

  • Type: BS-0
  • Overall Width: 7-1/4"
  • Overall height: 7"
  • Center (head only): 3-3/4"
  • Base size: 3-1/2" x 6-1/2"
  • Weight: 42 lbs.
  • Taper: BS-7
Reviews

1 Customer Review (5 out of 5 stars) : Sign in to write a review

Robert H
Decent Precision 11/05/2017 4:01:59 AM

I bought this to cut gears and so far am happy with the quality. I did have to strip it down completely to clean shipping grease off, but it cleaned up really nice. You will also want to take some time adjusting the backlash and the bearing preload, but once that is done, I find it very square, smooth and low run out. The sector arms are a bit stiff to work with, and I may make new ones, but everything else is smooth, once you clean it up and adjust. Mostly, I like the accuracy and squareness.
