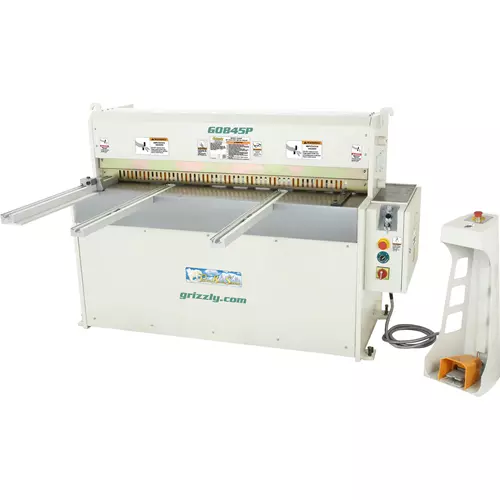

The G0845P 50" Electric Metal Shear features a mighty 7.5 HP, 220V, 3-phase motor and fully integrated steel frame with hardened steel-alloy dies and a 50" maximum cutting width capable of shearing up to 10-gauge mild steel and 10-gauge aluminum. Built for years of reliable service, this machine is a great choice for production fabrication shops. It proudly features a hold-down carriage with non-marring nylon fingers, adjustable front/rear work stops for accurate repeatability, and a remotely activated foot pedal control that makes it a breeze to cut larger sheets. Better yet, the relatively small footprint of 28-1/2" x 66-1/2" makes this a perfect option for shops that are tight on space.

  • Motor: 7.5 HP, 220V, 20.7A, 3-phase
  • Maximum thickness: 10 gauge steel, 10 gauge aluminum
  • Rear stop adjustment: 0-24"
  • Front stop adjustment: 0-36"
  • Maximum capacity: 50"
  • Maximum beam lift: 1/2" - 1-13/16"
  • Front scale range: 3-5/16" to 39-5/16"
  • Rear scale range: 0 to 25-5/8"
  • Bed height above floor: 31-1/2"
  • Base dimensions: 28-1/2" x 66-1/2"
  • Overall size: 72-1/2"W x 80"D x 48"H
  • Approximate shipping weight: 3266 lbs.
  • Reversible hardened steel alloy cutting sheer dies for extended life
  • Hand and foot pedal operation
  • Micro-switch on finger guard overrides main switch if guard is removed
  • Adjustable front and rear stop scales
  • Triple V-belts drive the counter-balance shaft
  • Remote on/off foot pedal control
  • Super-quiet operation
  • Built-in non-marring hold down clamp
  • Shadow light

Please note that this machine cannot be run on a phase converter; you must use a true 3-phase power supply.


1 Customer Review (5 out of 5 stars) : Sign in to write a review

Anonymous Reviewer
JOG not working 12/24/2018 3:51:47 AM

Haven't had this long enough to give an honest review yet.
Will check in later, JOG not working, the Grizzly Engineers in Washington are working on the issue.

Update: JOG; I don't use the JOG yet; suspecting a key switch concern.
All other functions about my G0845P is working fine. Originally, I had difficulty getting the shear to shear full 48"width 10-gauge when set according to the chart riveted to the machine. With the assistance from the grizzly engineer, I/we stepped through several possibilities. Final discoveries indicate the blade-gap chart was not working for my machine. Once this discovery was made the shear cuts full 48" width 16, 11 AND 10-gauge material when blade-gap is set properly, the 10-gauge material capability is what sold me on this machine. I am pleased with this G0845P shear now, Originally I was skeptical that I made a good decision.
Through this investigative research I've come to the realize just how critical blade-gap is, which it may be true with all sheet-metal shears. Now that I know the proper setting for the three thicknesses of material I will be utilizing; I can recommend this unit, if you are so inclined to have a powered sheet-metal shear in your shop or home shop. Each time I use it I appreciate it a little more.
I would have been much happier (maybe ecstatic even) had I NOT got caught in the tariff cross fire.
Thank you Grizzly for your assistance and patients in getting me up and going.
