Overview

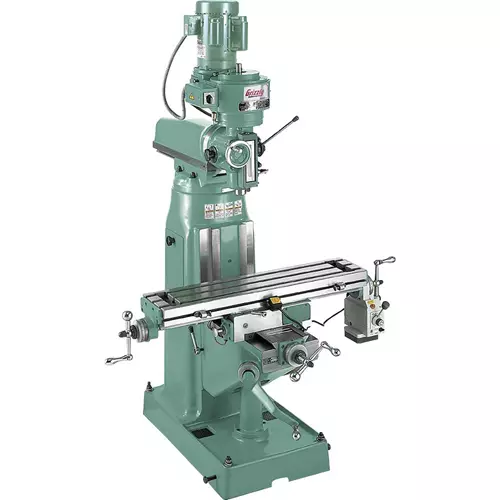

This Milling Machine with Power Feed has all the features found on large, industrial quality mills, but is sized & priced for the serious home shop. With features like a tilting head, longitudinal power feed and massive cast iron construction, this is one sweet deal!

Features:

  • Adjustable micrometer quill depth stop
  • Multiple saddle, knee, table and ram locks for high rigidity
  • R-8 spindle
  • 5-1/4" of spindle travel
  • Five spindle speeds
  • Comes with longitudinal power feed
  • Auto stop with micro-adjustable setting
  • 2 HP, single phase, 110V/220V, reversible TEFC 1725 RPM motor

    Specifications:

  • Spindle taper: R-8
  • Spindle travel: 5-1/4"
  • Table size: 7-7/8" x 35-3/4"
  • Table travel (longitudinal): 20-1/2"
  • Table travel (cross): 9-1/2"
  • Table travel (vertical): 13-3/4"
  • Max. dist. spindle to column: 15-1/2"
  • Max. dist. spindle to table: 13-3/4"
  • Knee travel: 13-3/4"
  • Head travel: 10-1/4"
  • Head tilt: 90° left and right
  • Turret or column swivel: 360°
  • T-slots: 3 on 2-1/2" centers, 1/2" stud
  • Number of speeds: 5
  • Range of speeds: 255, 425, 685, 1115 and 1800 RPM
  • Motor: TEFC capacitor start induction
  • Horsepower: 2
  • Phase: single-phase
  • RPM: 1725
  • Power Transfer: V-belts
  • Bearings: shielded and lubricated for life
  • Overall Height: 75"
  • Shipping weight approx.: 1701 lbs.

    Standard Accessories:

  • Way chip protectors
  • Drawbar
  • Tool box
  • Electric control box & panel
  • Power table feed for X axis
