Item #: H7789
Model # H7789
Overview

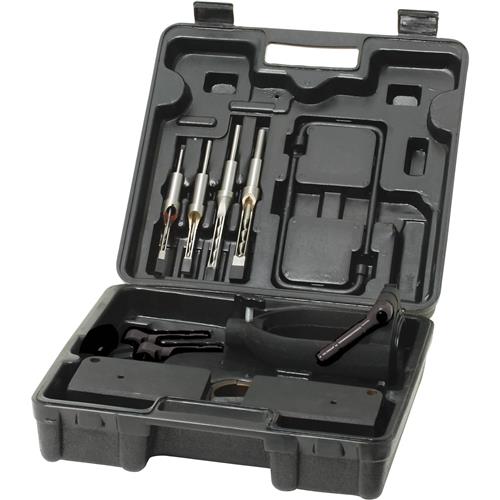

This Mortising Attachment Kit, with its variety of interchangeable bushings, will fit just about any drill press for boring precision mortises. The entire kit includes cast iron chisel holder and fence, hold down assembly, quill alignment pin, 1/4", 5/16", 3/8" and 1/2" chisels, 3 two-piece bushings, 3 split bushings and carrying case. Just match your drill press quill diameter to the nearest ID bushing dimension. Not recommended for use with "baby" drill presses.

Bushing sizes include: 2.945" O.D. x 2.600" I.D., 2.600" O.D. x 2.366" I.D, 2.366" O.D. x 2.170" I.D., 2.600" O.D. x 2.000" I.D., 2.600" O.D. x 1.880" I.D. and 2.600" O.D. x 1.570" I.D.

Works with the following drill presses:

  • Grizzly G0485
  • Grizzly G0491
  • Grizzly G0794
  • Grizzly G7943
  • Grizzly G7944
  • Grizzly G7947 (with additional purchase of G9716 quill collar)
  • Grizzly G7948 (with additional purchase of G9716 quill collar)
  • Shop Fox W1680
  • Sears 21313
  • Sears 21315
  • Sears 21317
  • Delta 11-990
  • Delta 14-070
  • Delta 17-900
  • Delta 11-090
  • Jet JDP-14MF
  • Jet JDP-17M
  • Jet JDP-17MF
Reviews

22 Customer Reviews (4.9 out of 5 stars) : Sign in to write a review

Anonymous Reviewer
08/29/2019 11:03:54 PM

No feedback given

Willard H
Worked very well! 08/10/2019 6:22:38 PM

Anonymous Reviewer
Solidly Built 07/25/2019 12:55:47 PM

Ive been wanting to build a piece of furniture using old school joinery. 50 years ago my high school wood shop teacher taught us how to make mortise and tenon joints. I could build a dresser with pocket screws. They are easy to use, strong and take little time assembling joints. But I wanted a piece of furniture with no screws or nails. Just wood and glue. Old school joinery.

I researched mortising jigs and settled on the Grizzly brand. It took about a week longer than anticipated to receive it but it showed up undamaged in a very nice storage case. Its a solidly build gig that performs well. It comes with 3 auger/chisel bits that are extremely sharp and cuts through hardwood like butter.

My only disappointment was the very poorly written assembly instructions. They were TERRIBLE. Almost nonexistent. I may not be the sharpest knife in the drawer, but it shouldnt have taken me a day to finally figure out how to assemble and set up the gig.

All that being said, its a great gig. I just recommend Grizzly get a tech writer to write more detailed instructions.

Anonymous Reviewer
03/23/2019 5:04:20 PM

Product description says it will fit a quill size of1.88 in or 48 mm. It does not.

James A
03/02/2019 6:59:54 PM

No feedback given

Anonymous Reviewer
12/13/2018 11:35:58 PM

No feedback given

Sassella G
10/28/2018 7:28:22 AM

No feedback given

Anonymous Reviewer
06/21/2018 8:38:11 PM

No feedback given

Anonymous Reviewer
03/10/2018 9:34:07 PM

No I am not happy with the H7789 mortising attachment kit. First of all, the G7943 drill press was listed that the attachment would fit. Well it does not work on the G7943 so I returned it and you refunded 77 dollars and some cents. I paid all most 95 dollars plus shipping. So the total price was over 110 dollars. Since you listed the G7943 to work with this kit, I feel that you should pay for the return shipping and not charge a restocking fee. I called and complained about this and was lead to believe that you would take care of this. But when all was said and done you charged me return shipping and a restocking fee.
All I can say is that if this is the way you are going to treat your customers, and that if you are not going to pay for the return shipping and not charge a restocking fee then you can count on the fact that I am not a valued customer any more. I would not have ordered the mortising kit had the G7943 not been listed. Levi Bontrager









first

Anonymous Reviewer
03/08/2018 7:35:53 PM

This is the first time I had ordered from Grizzly. The mortising attachment fit my drill press perfectly. A nice addition to the shop.

Anonymous Reviewer
VERY GOOD VALUE 02/15/2018 12:37:21 PM

This tool fit my Grizzly drill press with only one problem. The small steel blocks that are used to hold down the cast iron fence were slightly too thick and required a slight grinding to allow the clamps to hold the fence tight on the table. After this small modification the tool worked well. This is a resonable tool to invest in if you do not need to do alot of mortising for production. I used it to mortise a stack of birch plywood and it did a very good job with almost no tear out on the bottom lamination. I would suggest sharpening the drill bit slightly under magnifycation to provide cleaner cutting. The chisel portion of the bit is slightly tapered which allows backing out the bit to clear chips.The kit is well designed and a good value.

Anonymous Reviewer
So Far So Good! 01/28/2018 12:37:45 PM

I set it up on my Rigid Drill Press and practiced with it. I haven't completed a project but it appears to be up for the task.

Anonymous Reviewer
Worked great on my first project! 11/09/2017 11:30:58 AM

Bought this to make mortise joints on a bed project and it worked great! Bed is already being used by our son.

Anonymous Reviewer
limited 09/29/2017 7:35:43 PM

This product does not fit "just about any drill press" as stated. Do not buy this unless you have one of the drill presses listed.

Anonymous Reviewer
Mortised child's bank 08/23/2017 11:18:42 AM

With limited instructions it was. Easy to install and use. Not a lot of time wasted putting it on and off drill press. Instruction were better than others but was lacking. I have a jet which it handles but nothing written that made it easy. Overall works great

Anonymous Reviewer
07/30/2017 12:56:30 PM

No feedback given

Phillip H
06/13/2017 11:13:46 AM

I bought this about 2 month ago and have used it twice and the product works great. I took a few tries to get it setup the first time, but after I figured it out it work great. It is imporant to keep the tip of the drill bit oiled so it does not over heat.

Anonymous Reviewer
06/02/2017 2:17:11 PM

This mortising attachment kit did the job I had to do but I have to say it is a low quality version of what it can be.
Certainly not the best.

william G
06/02/2017 6:35:07 AM

No feedback given

Leon S
Mortising jig 06/01/2017 9:30:45 PM

I've been very happy with the unit overall, but I am having a great deal of difficulty with the 3/4" drill and/or mortising bit. They seem to overheat, no matter how often I withdraw and reinsert the drill.. The smaller bits presented no such problem.

Jo L
05/08/2017 11:37:29 AM

No feedback given

Chris M
Drill press is awesome and very well made 05/04/2017 12:21:13 AM

Bought this a month ago and have loved drilling and using the mortis attachment. Great product.
