Overview

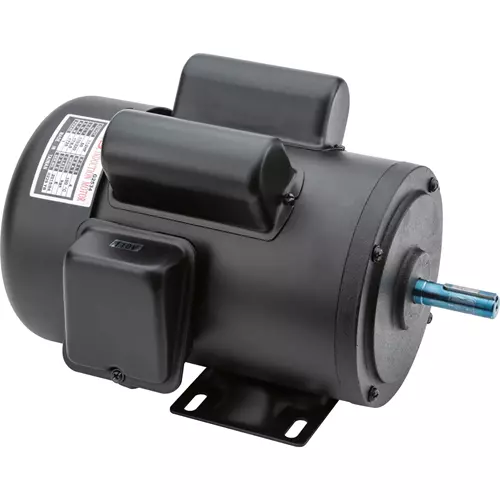

Made to demanding specifications, these motors offer the same quality as the motors we install on our heavy-duty machines. All our motors are standard NEMA 56 frames and fit over 90% of the woodworking machinery on the market. If you have applications where dust, oil, chips or other foreign particles are the norm rather than the exception, you should use these Totally Enclosed Fan Cooled Motors (Enclosed). Motors are dual voltage (110/220V) capacitor start. They feature standard NEMA 56 frames, all ball bearing construction, reversible rotation, 5/8" shafts, and are rated for continuous duty. Not for air compressor use.

Specifications:

  • Type: Enclosed
  • Size: 1-1/2 HP
  • RPM: 1725
  • AMPS @ 110V/220V: 17A/8.5A
  • Reversible rotation
  • Full 1 Year Warranty!

Reviews

9 Customer Reviews (4.9 out of 5 stars) : Sign in to write a review

Jerry H
01/15/2020 8:49:53 PM

No feedback given

Anonymous Reviewer
Souped-up old Delta 29-203 band saw 03/27/2019 11:13:00 AM

Decided to soup-up my old Delta 28-203 band saw and started with the motor. It had a 3/4 hp which still worked but was a little weak for re-sawing so after doing a little research on the size and power requirement, purchased the Grizzly G2534. It fit perfectly in the enclosed cabinet with no modification. Changed the voltage to 220V so that I could use the existing wiring and that's all there is to it, works like a champ. Put a new 1/2" 3 tpi blade and it re-saws anything I want to throw at it.

Anonymous Reviewer
Great replacement motor! 12/27/2018 12:07:57 PM

Bought this to replace an old 1/2 hp motor on an 80-yr old lathe and it has performed marvelously!

Anonymous Reviewer
04/26/2018 11:37:55 AM

I needed a new motor for my Band Saw, This one is a BEAST!!! I have not yet been able to bog it down. I put a 6" tiser on a 14 " saw and promptly burnt up the old 3/4 HP motor on it. I replaced it with this 1-1/2 HP Grizzly and, WOW, what a difference!!!

Anonymous Reviewer
Open frame delta 14” motor swap 11/11/2017 12:58:47 PM

On an open frame 14 delta I had to radius the front leg support/top base brace. After that and a quick swap of the wires to reverse rotation I was in business. I wish I did this swap a long time ago! The saw is s beast with this motor !
If you can handle those to things I would definitely recommend it.

Anonymous Reviewer
good product 11/02/2017 11:36:22 AM

No feedback given

Anonymous Reviewer
06/23/2017 12:05:49 AM

Works fine in my Delta 14 inch bandsaw. I had to modify the belt guard and use a longer belt but it all worked out.

Richard M
06/06/2017 3:54:18 PM

Bought this to replace a failed motor on an old Enco lathe. Drilled 4 holes, connected 3 wires, works like a charm, and more power than the original. I did have to buy a sleeve to space the old pulley to the shaft, but apparently nobody uses the same shaft dia as the old Enco anymore in this size motor

Gregory D
06/02/2017 12:19:45 PM

As advertised.
First motor arrived damaged; it was promptly replaced with no drama.
Second motor - minor shipping damage; replacement parts sent promptly.
