Overview

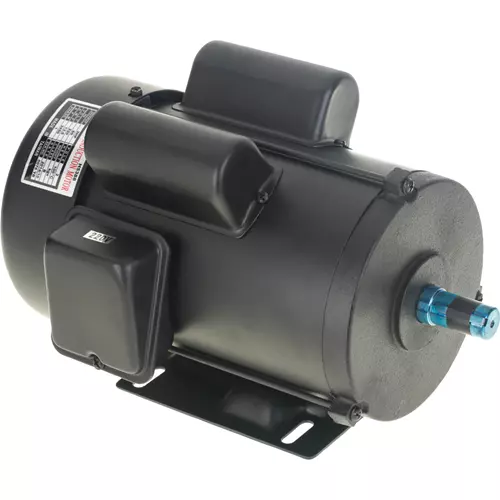

Taking our incredible buying power with us, we went to one of the top motor manufacturers and asked them to build the absolute best motor they could. We told them not to worry about the price, just quality. We are very pleased to offer this exceptionally high quality motor at a discount price. Motor is single phase, NEMA 56 frames. Not for air compressor use.
  • Motor: 3 HP, 220V, single-phase, 3450 RPM, TEFC capacitor-start induction
  • Reversible rotation
Reviews

10 Customer Reviews (5 out of 5 stars) : Sign in to write a review

steve V
05/27/2020 5:59:37 PM

No feedback given

Anonymous Reviewer
Jet JWP-208-1 03/24/2020 1:03:55 AM

I replaced my planer with this motor. You will have to drill and tap the shaft to M8x1.25 as this does not come with the correct pulley retaining bolt hole. Otherwise a direct replacement.

Eric H
10/07/2019 2:41:17 PM

I bought this as a replacement for my Jet JTAS-10XL-1. Packaged extremely well!! I had to drill two holes to get it to match my base plate. I also learned you will either have to drill all four baseplate holes differently or mill out the pulley as the neck of the shaft coming out of the motor is 0.2" too long. It is easier for me to bore out the pulley (1" dia, 0.2" deep). Very pleased with this motor as it is slightly more than half OEM price and it looks like it came from the same factory.

Anonymous Reviewer
Great replacement motor! 09/11/2019 12:35:35 PM

Motor came well packed in a wood box with lots of packing material.

Anonymous Reviewer
04/17/2019 12:41:13 PM

Best deal on a replacement 3HP Cabinet Saw motor. I installed this in a Jet JTAS-10 XL, and it worked fine. About half the cost of a new Jet motor. Also motor was very well packed (in Taiwan?) and protected by a wooden box! Overall the Grizzly purchase was very satisfying.

Anonymous Reviewer
11/02/2018 12:04:13 PM

i bought this 3 h .p. motor for a planer very happy delivered timely , helpfull people ,happy mike

Benjamin O
Motor runs very good 10/28/2018 9:49:28 PM

No feedback given

Anonymous Reviewer
09/13/2018 12:14:51 AM

Much cheaper alternative to the Jet motor. Redrill the base and it was a direct replacement. Happy I found the alternative.

JEFF G
05/29/2018 11:40:24 PM

No feedback given

Anonymous Reviewer
03/29/2018 4:28:14 PM

Had to return due to physical size of motor. Extremely happy with return process and quick refund!!!
