Item# C1417Z Model# C1417Z

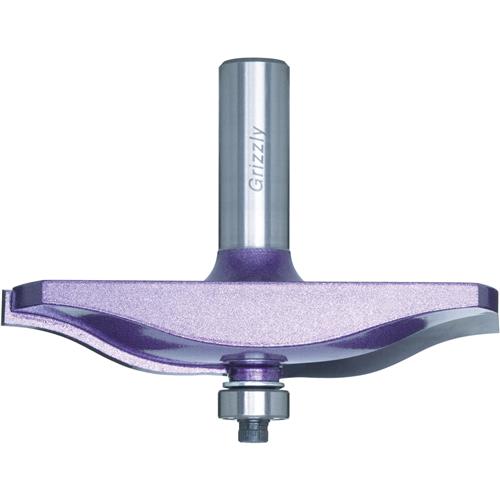

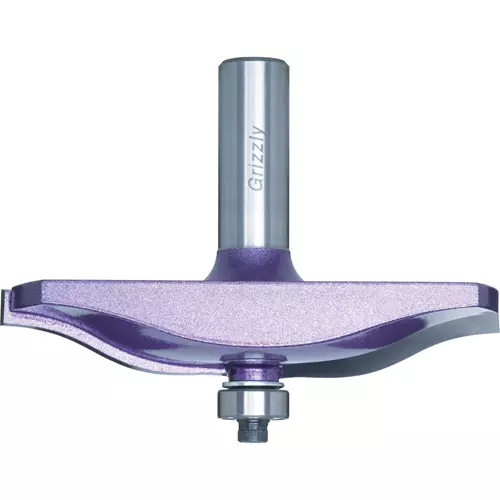

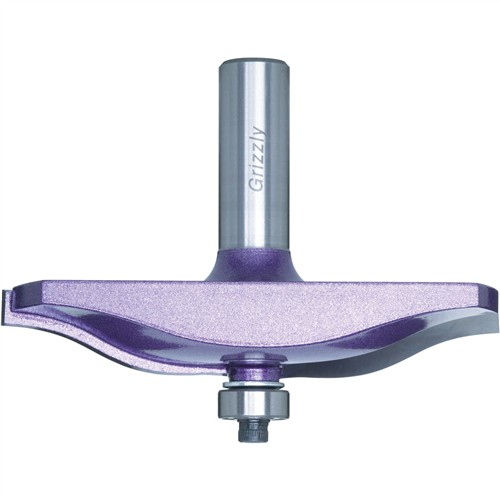

Grizzly C1417Z - Ogee 3-1/2" Raised Panel Bit, 1/2" Shank

$78.95
+$0.00 Freight
+$0.00  Oversize
Sometimes you want the best money can buy; sometimes your project requires you to use the best router bits made. If so, this router bit fits the bill! Starting with a better quality steel for the bodies (SAE4140), we heat treat it to the appropriate hardness and apply K10 micro grain carbide. We then precision grind the blades to 800 grit (using the wet grinding process) so that it is razor sharp and then finish it with a baked-on metallic paint. This router bit is made for us and to our exacting specifications in an ISO 9001 rated factory. The purple color used on our Super-Duty Router Bits is a registered trademark and is owned by Grizzly Industrial.

Our 3-1/2" O.D. panel bit produces a 1-1/4" reveal. Use of a 3 HP router is recommended with a router table. Features a shear angle, an anti-friction coating, and a guide bearing. This bit has a 10 degree upshear for quick chip removal. Complete with bearing guide. 2mm thick carbide!

Dimensions:

  • Cutter Diameter: 3-1/2
  • Cutting Length: 1/2"
  • Overall Length: 2-1/2"
  • Cutting Width: 1-1/2"
  • Maximum RPM: 12,000

Order G3855 replacement bearing.

View More Details
Add to Cart
Available to Ship

Recommended For You

Overview
Sometimes you want the best money can buy; sometimes your project requires you to use the best router bits made. If so, this router bit fits the bill! Starting with a better quality steel for the bodies (SAE4140), we heat treat it to the appropriate hardness and apply K10 micro grain carbide. We then precision grind the blades to 800 grit (using the wet grinding process) so that it is razor sharp and then finish it with a baked-on metallic paint. This router bit is made for us and to our exacting specifications in an ISO 9001 rated factory. The purple color used on our Super-Duty Router Bits is a registered trademark and is owned by Grizzly Industrial.

Our 3-1/2" O.D. panel bit produces a 1-1/4" reveal. Use of a 3 HP router is recommended with a router table. Features a shear angle, an anti-friction coating, and a guide bearing. This bit has a 10 degree upshear for quick chip removal. Complete with bearing guide. 2mm thick carbide!

Dimensions:

  • Cutter Diameter: 3-1/2
  • Cutting Length: 1/2"
  • Overall Length: 2-1/2"
  • Cutting Width: 1-1/2"
  • Maximum RPM: 12,000

Order G3855 replacement bearing.
