Item #: C1069Z
Model # C1069Z
Overview

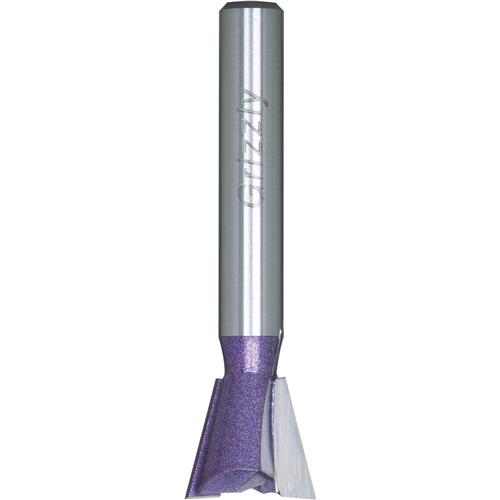

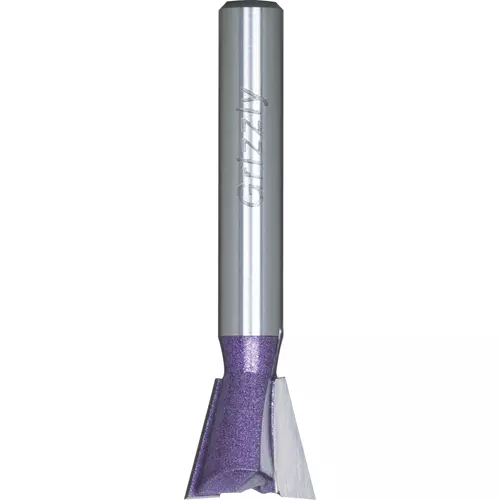

Sometimes you want the best money can buy; sometimes your project requires you to use the best router bits made. If so, this router bit fits the bill! Starting with a better quality steel for the bodies (SAE4140), we heat treat it to the appropriate hardness and apply K10 micro grain carbide. We then precision grind the blades to 800 grit (using the wet grinding process) so that it is razor sharp and then finish it with a baked-on metallic paint. This router bit is made for us and to our exacting specifications in an ISO 9001 rated factory. The purple color used on our Super-Duty Router Bits is a registered trademark and is owned by Grizzly Industrial.

Features a forward shear angle and an anti-friction coating.

Used in the production of dovetail joints for drawers and fine furniture. Suitable for routing wood, laminates, plywood, and composition paneling.

Dimensions:

  • Cutter Diameter: 1/2"
  • Cutting Height: 1/2"
  • Overall Length: 1-3/4"
  • Angle: 14 degrees
  • Maximum RPM: 24,000
