Item #: T28419
Model # L620C

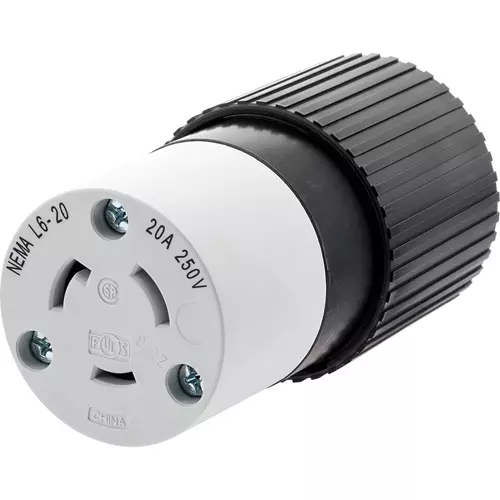

Hubbell L620C - 20 Amp 250V NEMA L6-20 Single Phase Twist Lock Connector

Specifications:

Type: Twist lock connector

Application: Heavy Duty

Standard: NEMA WD1 and WD5, UL498

Number of Poles: 2

Amp Rating: 20A

Voltage Rating: 250V

Material: Composite

NEMA Rating: L6-20R

Mounting: Cord mounted

Connection: Screw terminals Features:

Supertough nylon body

Visible NEMA ratings

Captive assembly scre... View More Details

$1795
+$000 Freight
+$000  Oversize
Add to Cart
Available to Ship
Add to Cart
Overview
Specifications:
  • Type: Twist lock connector
  • Application: Heavy Duty
  • Standard: NEMA WD1 and WD5, UL498
  • Number of Poles: 2
  • Amp Rating: 20A
  • Voltage Rating: 250V
  • Material: Composite
  • NEMA Rating: L6-20R
  • Mounting: Cord mounted
  • Connection: Screw terminals
Features:
  • Supertough nylon body
  • Visible NEMA ratings
  • Captive assembly screws
  • Impact modified nylon blade/contact holder
  • High performance copper alloy contacts/blade
  • Withstands 3500 V per UL498 dielectric voltage
  • 600 VAC, 250 VDC maximum working voltage
  • Certified for current interrupting at full rated current
  • Minimum 4.8 times rated current for 100 cycles overload
  • Terminals identified in accordance with UL 498
  • 18 to 8 AWG flexible cord terminal accommodation
  • Ratings and NEMA identification are permanently marked on device
