Overview

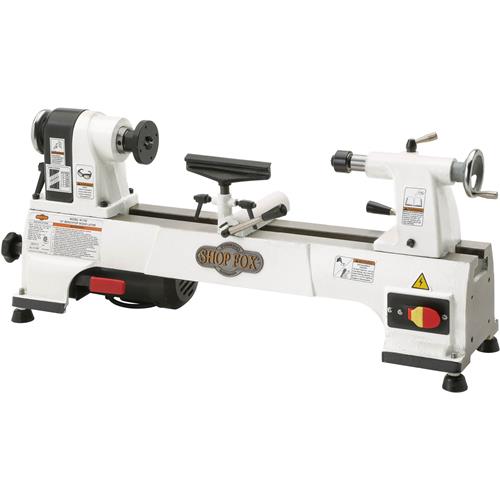

All cast-iron construction and a 1/2 HP motor provide plenty of stability and power to turn bowls up to 10" wide and spindles up to 15" long—or up to 38" long with the optional bed extension. This stable benchtop wood lathe has six speeds from 480 to 4023 RPM and includes a live center, spur center, 3" faceplate, tool rest, and knock-out bar.

Certified to CSA & UL standards

SPECIFICATIONS:

  • Motor: 1/2 HP, 120V, single-phase, 6A
  • Swing over bed: 10"
  • Distance between centers: 15"
  • Spindle speeds: 480, 1270, 1960, 2730, 3327, and 4023 RPM
  • Spindle threads: 1" x 8 TPI
  • Spindle taper: MT#2
  • Tailstock taper: MT#2
  • Footprint: 8-3/4" x 33"
  • Overall dimensions: 34" W x 8-3/4" D x 15" H
  • Approximate shipping weight: 98 lbs.

FEATURES:

  • Heavy-duty cast-iron bed and adjustable rubber feet provide maximum stability and minimal vibration
  • Lever-action cam-locks for tailstock and tool rest base for quick positioning
  • Paddle safety switch with removable key
    Includes:
  • 3" faceplate
  • MT#2 live center
  • MT#2 spur center
  • Tool rest
  • Knock-out rod
