Item #: W1804
Model # W1804
Overview
Description

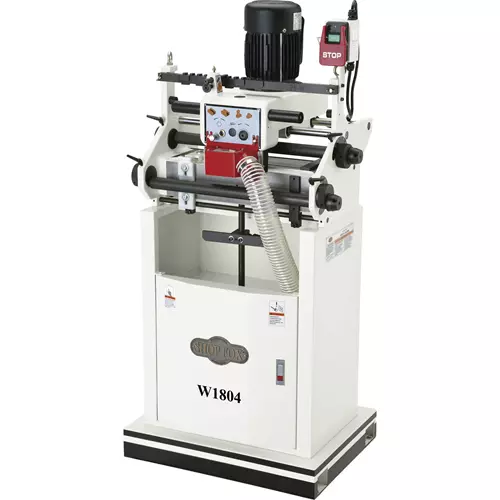

Making strong and attractive half-blind dovetail joints has never been so easy! Simply set up this 11" Dovetail Machine to match the stock width and thickness, make a few adjustments to get a glove-like fit, and then crank out dozens of perfect dovetail joints every hour. Accepts workpieces as large as 28" long x 11-1/4" wide and as small as 7-7/8" long x 2-3/8" wide. Includes templates for four different dovetail sizes.

Specifications
  • Motor: 1 HP, 110V/220V, prewired 110V, single-phase
  • Table size: 19-1/2" x 7"
  • Floor to table height: 38-5/16"
  • Overall size: 30-1/2"W x 57"H x 22-1/2"D
  • Number of spindles: 1
  • Spindle speed: 18,500 RPM
  • Dovetail bit: 10° angle x 5/8" left-hand
  • Dovetail bit shank: 1/2" (12mm)
  • Dovetail templates: 1", 1-1/2", 2", 2-1/2"
  • Max. dovetail height: 3/4"
  • Min. dovetail height: 3/16"
  • Max. stock thickness: 1-3/4"
  • Min. stock thickness: 13/32"
  • Max. stock size: 28"L x 11-1/4"W
  • Min. stock size: 7-7/8"L x 2-3/8"W
  • Precision-milled cast-iron table frame
  • Cast aluminum carriage
  • Steel stand
  • Hardened-and-ground chrome steel slide ways
  • Ball bearing linear guides
  • Four-sided dovetail template bar
  • Micro-adjustable spindle head
  • Workpiece stops
  • Quick cam clamp
  • Spring-loaded carriage for smooth operation
  • ON/OFF push button switch with oversized stop paddle
  • 4" dust port
  • 2 camlock bar clamps
  • Approximate shipping weight: 366 lbs.
