Item #: W1729
Model # W1729
Overview

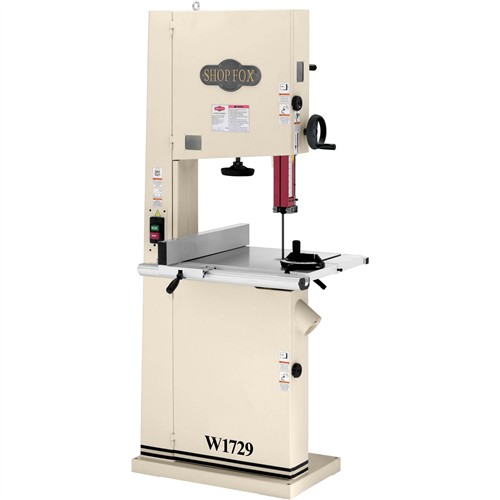

When extra cutting capacity and heavy-duty construction are required for big jobs, this 19" Bandsaw has all the features you need. Its 2 HP, single-phase motor has plenty of power to drive blades from 1/8" to 1" wide through the toughest wood, and its 12" maximum cutting height, two blade speeds, and deluxe fence make resawing as easy as it gets. Other features include computer-balanced cast-iron wheels, a micro-adjusting geared table tilt, rack-and-pinion upper guide adjustment, Euro-disc style blade guides, and blade tension indicator for accurate cuts and longer blade life.

Made in an ISO 9001 Factory

CSA certified meeting CSA C22.2 #105-1953 and UL 987-7th standards!

Specifications

  • Motor: 2 HP, 115V/230V, prewired 230V, single-phase, TEFC capacitor-start induction, 1725 RPM, 20A/10A
  • Amps: 20 @ 110 / 10 @ 220V
  • Precision-ground cast-iron table size: 26-3/4" x 19" x 1-1/2" thick
  • Table tilt: 45° right, 5° left
  • Overall size: 36"W x 76"H x 32"D
  • Table size: 26-3/4" x 19" x 1-1/2" thick
  • Floor to table height: 37-1/2"
  • Cutting capacity/throat: 18-1/4"
  • Max. cutting height: 12"
  • Blade length: 143" long
  • Blade width range: 1/8" - 1"
  • Blade speeds: 1700, 3500 FPM
  • Wheels: computer-balanced cast-iron with polyurethane tires
  • Wheel covers: pre-formed, hinged steel
  • Blade guides: Euro-disc style with full enclosure protection and ball bearing rear support
  • Motor bearings: sealed and permanently lubricated
  • Blade tension indicator
  • Micro-adjusting rack-and-pinion table tilt
  • Height scale measurement
  • Two 4" dust ports
  • Quick-release blade tension lever
  • Includes deluxe extruded-aluminum fence with scale and magnifying window, 3/4" blade, and miter gauge
  • Rack-and-pinion upper guide adjustments
  • Includes 3/4" blade
  • Approximate shipping weight: 435 lbs.
