Item #: W1825
Model # W1825
Overview

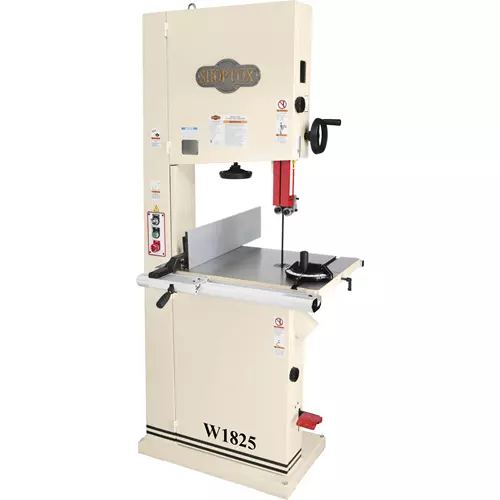

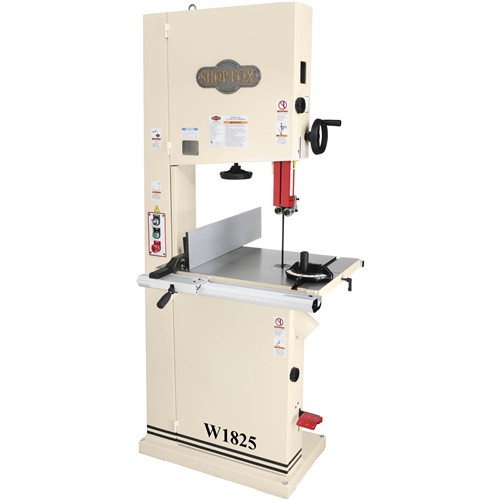

Power, capacity, and extra features make this 19" Heavy-Duty Bandsaw the saw of choice for many serious woodworkers. Once again, we've pulled out all the stops. We've included an extra-wide table, deluxe 6" tall resaw fence that also converts to a low-profile fence, rack-and-pinion table tilt mechanism with built-in table support brace, cast-iron table trunnions, computer-balanced cast-iron wheels with polyurethane tires, and a foot brake. The foot brake not only acts as a safety feature, but it can also speed production. All-in-all, you would be hard-pressed to find a bandsaw with more useful features and proven performance than this outstanding machine.

Made in an ISO 9001 Factory

CSA certified meeting CSA C22.2 #71.2-10 and UL 987-7th standards!

Specifications

  • Motor: 3 HP, 220V, single-phase, TEFC capacitor start-induction
  • RPM: 1725
  • Precision-ground cast-iron table size: 26-3/4" x 19" x 1-1/2" thick
  • Floor to table height: 37-1/2"
  • Cutting capacity/throat: 18-1/4"
  • Maximum cutting height: 12"
  • Blade length: 143"
  • Blade length range: 141-1/2" - 143"
  • Blade width range: 1/8" - 1-1/4"
  • 2 Blade speeds: 1700, 3500 FPM
  • Wheels: computer-balanced cast-iron with polyurethane tires
  • Wheel covers: pre-formed, hinged steel
  • Blade guides: dual ball bearings with full enclosure protection
  • Motor bearings: sealed and permanently lubricated
  • Blade tension indicator
  • Rack-and-pinion table tilt mechanism
  • Computer-balanced cast-iron wheels
  • Height scale measurement
  • Fence with scale and magnifying window
  • Deluxe cast-iron fence with deluxe extruded-aluminum resaw fence
  • Miter gauge
  • Two 4" dust ports
  • Table tilt: 5° left, 45° right
  • Quick-change blade release/tensioning
  • Rack-and-pinion upper guide adjustment
  • Foot brake
  • Cast-iron trunnion
  • Key lockout safety switch
  • Includes 3/4" hook-style blade
  • Overall size: 36"W x 76"H x 32"D
  • Approximate shipping weight: 500 lbs.
