Overview

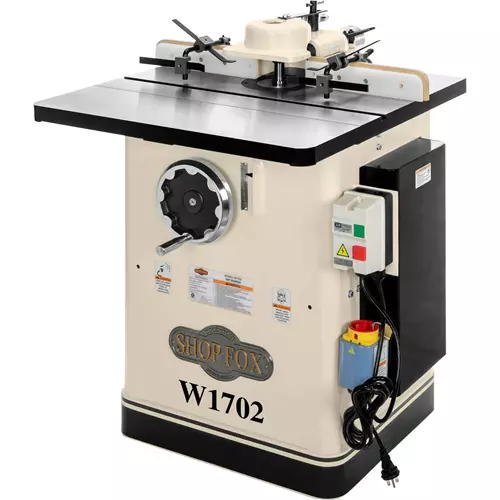

This full-capacity 3 HP Shaper will handle the smallest profile cutters, all the way up to the largest panel cutters with its three included spindle sizes, 3" spindle travel, and 5-1/2" maximum cutter diameter capacity. Two reversible speeds also provide the greatest flexibility for accomodating cutters of all sizes. So, no matter what the shaping application is—whether it’s simple edge-profiling or making door stiles, rails, and panels—this is the right machine for the job.

CSA certified meeting CSA C22.2 #71.2-10 and UL 987-7th standards!

Features:

  • Large handwheel elevates the spindle for precise control, and spindle lock knob ensures consistent results
  • Powder-coated finish
  • T-slot miter gauge
  • Magnetic switch with thermal overload protection
  • Heavy cast-iron, independently adjustable, split fence allows full-edge profiling
  • Built-in 3" dust port
  • Shielded & lubricated ball bearings
  • Included starting pins for freehand shaping
  • Interchangeable spindle are easy to change
  • Removable table inserts provide work support close to the cutter

    Specifications:

  • Motor: 3 HP, 220V, single-phase with reversing switch, 12A
  • Large precision-ground cast-iron table
  • Table size: 28-1/4"W x 30-1/2"D
  • Spindles: 1/2", 3/4", 1" (included)
  • Max. cutter height (per spindle): 2", 2-1/2", 2-1/4"
  • Spindle travel: 3"
  • Spindle speeds: 7000 & 10,000 RPM
  • Spindle openings: 1-3/8", 2-3/4", 4", 5-1/2"
  • Floor-to-table height: 34"
  • Approximate shipping weight: 353 lbs.
