Item #: W1772
Model # W1772
Overview

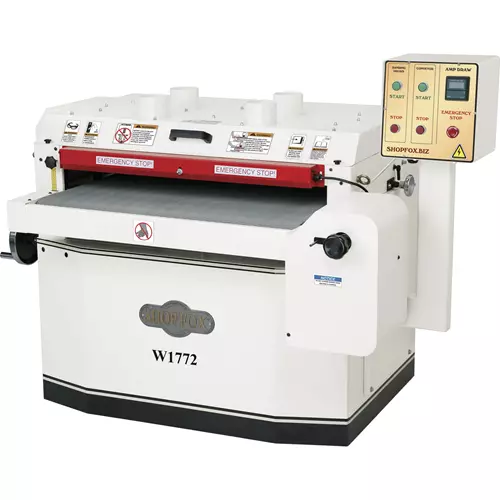

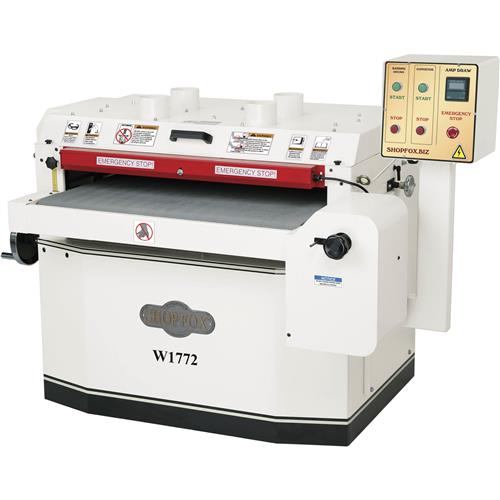

Designed for production shops, this 37" sander has what it takes to get those big jobs done—fast. Sand boards and panels up to 4" thick and 36-1/2" wide, using two different abrasive grits in the same pass with the dual 6" sanding drums. Feed speed is adjustable from 6 to 18 FPM. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency. Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4" dust ports, and a 10 HP, 240V, single-phase motor.

CSA certified meeting CSA C22.2 #105-1953 and UL 987-8th standards!

Specifications

  • Sanding drum motor: 10 HP, 240V, single-phase, TEFC, 1725 RPM
  • Conveyor motor: 1/3 HP
  • Drum surface speed: 2800 FPM
  • Max. board width: 36-1/2"
  • Max. board thickness: 4"
  • Min. board length: 9"
  • Min. board thickness: 1/16"
  • Conveyor feed rate: Variable, 6–18 FPM
  • Sanding drums: (2) steel/rubber
  • Drum diameter: 6"
  • Dust ports: (4) 4"
  • Sandpaper dimensions: 6" x 138"
  • Overall size: 62"W x 49"H x 53"D
  • Approximate shipping weight: 1379 lbs.
