Overview

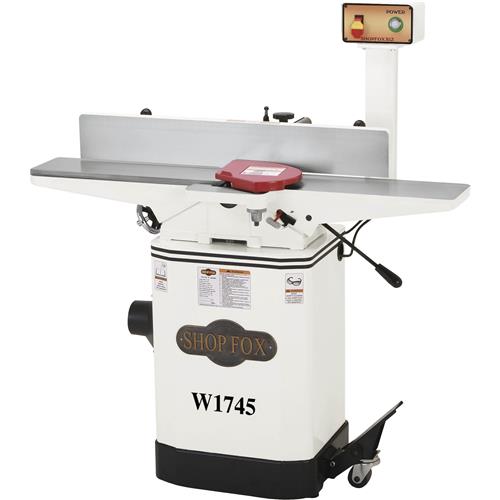

The oversized fence on this 6" Jointer provides tremendous control for edge-jointing wide boards and features a rack-and-pinion adjustment mechanism. The fine-adjust handwheel dials in the outfeed table relative to the cutterhead top dead center. The lever-adjusted infeed table provides quick and accurate infeed table movement. Made of rugged cast iron.

CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards!

Includes Free Pair of Push Blocks!


Specifications

  • Motor: 1 HP, 120V, single-phase, 13A
  • Maximum stock width: 6"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting capacity: 1/2"
  • Cutterhead diameter: 2-1/2"
  • Knives: 3 (HSS) 6" x 5/8" x 1/8"
  • Cutterhead speed: 4800 RPM
  • Table size: 6" x 46"
  • Table height from floor: 32-1/2"
  • Cuts per minute: 14,400
  • Fence size: 5"H x 35"L
  • Fence adjustment: positive stops @ ± 45 degrees & 90 degrees
  • Overall dimensions: 46" L x 27-1/2" W x 37-1/4" H
  • Approximate shipping weight: 280 lbs.
  • Certified to CSA and UL standards
