Overview
Sale price limited to stock on hand

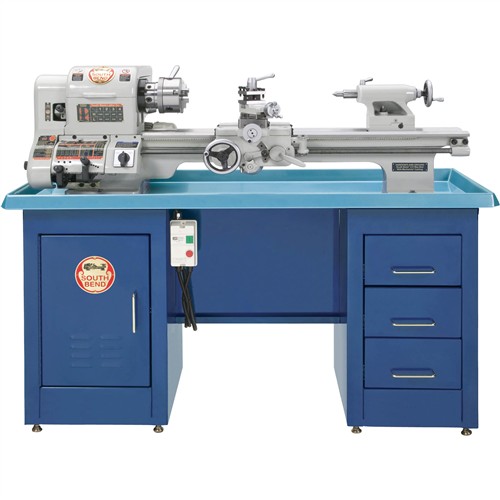

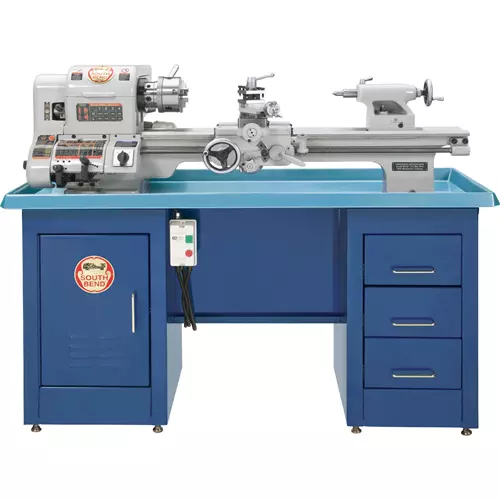

Designed from the ground up with meticulous attention to detail, this "new" 10K lathe has the traditional South Bend lines as well as many modern innovations. Some of its well thought-out features include a 1200 RPM 1 HP motor, D1-3 camlock spindle, serpentine multi-groove belt drive system with a Gates® belt, T-slotted cross slide, long 3.15" tailstock barrel, inch and metric threading ability and much, much more. South Bend's Signature three v-way bed is hardened and precision ground, and the 28" between centers handles most jobs with ease. A very popular lathe coveted by small shops! Optional SB1035 Stand shown not included.

Specifications:

  • Swing over bed: 9-3/4"
  • Distance between centers: 28"
  • Swing over cross slide: 5-1/2"
  • Width of bed: 5.9"
  • Cross slide travel: 4-7/8"
  • Compound slide travel: 2"
  • Spindle nose: D1-3 camlock
  • Spindle bore: 0.86"
  • Spindle taper: MT #3
  • Spindle speeds: (8) from 60 - 1200 RPM
  • Tailstock taper: MT #2
  • Tailstock travel: 3-1/8"
  • Tailstock barrel diameter: 1.18"
  • Inch thread range: 8 to 224 tpi (40 pitches)
  • Metric thread range: 0.5 to 3.5 mm (17 pitches)
  • Longitudinal feed range: 0.0014 to 0.0394 IPR
  • Cross feed range: 0.0004 to 0.0131 IPR
  • Number of feed selections: 16
  • Spindle motor size: 1 HP
  • Voltage: 110V/220V, single-phase, 60 Hz
  • Machine footprint: 47" x 12"
  • Approximate shipping weight: 656 lbs.

    Standard Equipment:

  • Signature South Bend three V-way bed
  • 5" 3-Jaw scroll chuck
  • 4-way tool post
  • Center
  • Tool kit
  • SB1035 stand (pictured) not included
  • Reviews

    3 Customer Reviews (5 out of 5 stars) : Sign in to write a review

    John R
    Hi quality lathe 03/08/2018 11:11:27 PM

    I bought this lathe 1 year ago. It is a fine machine that holds close tolerances!

    I rejected the 1st lathe because of shipping damage...it was dropped. Grizzly was VERY prompt in replacing the lathe.

    Excellent customer service. The 2nd had a damaged starter motor capacitor(shipping damage again). Grizzly promptly replaced it.

    Anonymous Reviewer
    08/19/2017 12:40:01 PM

    No feedback given

    Anonymous Reviewer
    Great Product but needs an independent 4 jaw chuck available 06/02/2017 12:07:40 AM

    Great lathe great tolerances, sorry they are discontinued.
