Parts for G0647 - 65 Ton Ironworker

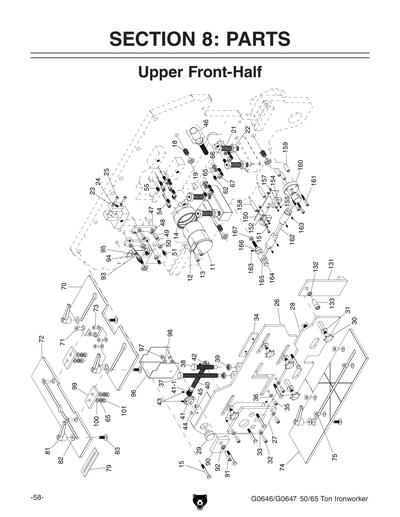

Part Diagram for G0647

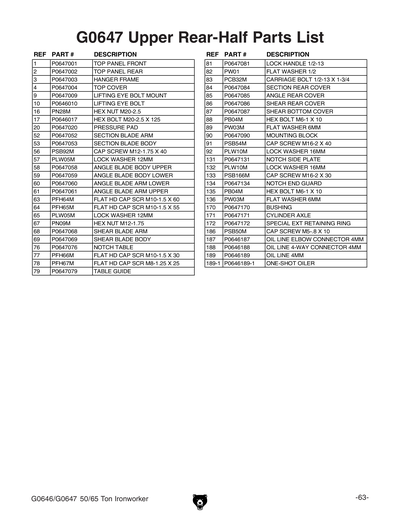

Part Diagram for G0647

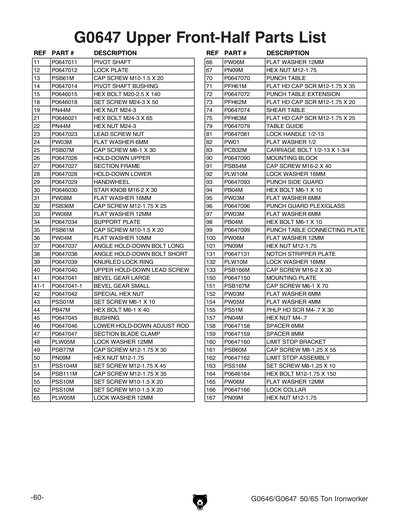

Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647
Part Diagram for G0647

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PANEL TOP FRONT
Item is no longer available
Price
N/A
2
PANEL REAR TOP
Item is no longer available
Price
N/A
3
HANGER FRAME
Item is no longer available
Price
N/A
4
COVER TOP
Item is no longer available
Price
N/A
5
ACCESS PANEL FRONT
Item is no longer available
Price
N/A
6
SUB PANEL
Item is no longer available
Price
N/A
7
REAR ACCESS PANEL
Item is no longer available
Price
N/A
8
LIMIT SWITCH ACCESS PANEL
Item is no longer available
Price
N/A
9
LIFTING EYE BOLT MOUNT
Item is no longer available
Price
N/A
10
LIFTING EYE BOLT
Price
N/A
11
PIVOT SHAFT
Item is no longer available
Price
N/A
12
LOCK PLATE
Item is no longer available
Price
N/A
13
CAP SCREW M10-1.5 X 20
Price
N/A
14
PIVOT SHAFT BUSHING
Item is no longer available
Price
N/A
15
HEX BOLT M20-2.5 X 140
Price
N/A
16
HEX NUT M20-2.5
Price
N/A
17
HEX BOLT M20-2.5 X 125
Price
N/A
18
SET SCREW M24-3 X 50
Price
N/A
19
HEX NUT M24-3
Price
N/A
20
PRESSURE PAD
Item is no longer available
Price
N/A
21
HEX BOLT M24-3 X 65
Price
N/A
22
HEX NUT M24-3
Price
N/A
23
LEADSCREW NUT
Item is no longer available
Price
N/A
24
FLAT WASHER 6MM
Price
N/A
25
CAP SCREW M6-1 X 30
Price
N/A
26
HOLD DOWN UPPER
Item is no longer available
Price
N/A
27
SECTION FRAME
Item is no longer available
Price
N/A
28
HOLD DOWN LOWER
Item is no longer available
Price
N/A
29
HANDWHEEL
Item is no longer available
Price
N/A
30
STAR KNOB M16-2 X 30
Price
N/A
31
FLAT WASHER 16MM
Price
N/A
32
CAP SCREW M12-1.75 X 25
Price
N/A
33
FLAT WASHER 12MM
Price
N/A
34
SUPPORT PLATE
Item is no longer available
Price
N/A
35
CAP SCREW M10-1.5 X 20
Price
N/A
36
FLAT WASHER 10MM
Price
N/A
37
HOLD DOWN ANGLE BOLT LONG
Item is no longer available
Price
N/A
38
HOLD DOWN ANGLE BOLT SHORT
Item is no longer available
Price
N/A
39
KNURLED LOCK RING
Item is no longer available
Price
N/A
40
HOLD DOWN LEADSCREW UPPER
Item is no longer available
Price
N/A
41
BEVEL GEAR LARGE
Item is no longer available
Price
N/A
41-1
BEVEL GEAR SMALL
Item is no longer available
Price
N/A
42
UPPER LEADSCREW HEX NUT
Item is no longer available
Price
N/A
43
SET SCREW M6-1 X 10
Price
N/A
44
HEX BOLT M6-1 X 40
Price
N/A
45
BUSHING
Item is no longer available
Price
N/A
46
HOLD DOWN ADJUST ROD LOWER
Item is no longer available
Price
N/A
47
SECTION BLADE CLAMP
Item is no longer available
Price
N/A
48
LOCK WASHER 12MM
Price
N/A
49
CAP SCREW M12-1.75 X 30
Price
N/A
50
HEX NUT M12-1.75
Price
N/A
51
SET SCREW M12-1.75 X 45
Price
N/A
52
SECTION BLADE ARM
Item is no longer available
Price
N/A
53
SECTION BLADE BODY
Item is no longer available
Price
N/A
54
CAP SCREW M12-1.75 X 35
Price
N/A
55
SET SCREW M10-1.5 X 20
Price
N/A
56
CAP SCREW M12-1.75 X 40
Price
N/A
57
LOCK WASHER 12MM
Price
N/A
58
Price
$537.10
59
Price
$339.65
60
Price
$537.10
61
Price
$339.35
62
SET SCREW M10-1.5 X 20
Price
N/A
63
FLAT HD CAP SCR M10-1.5 X 60
Price
N/A
64
FLAT HD CAP SCR M10-1.5 X 55
Price
N/A
65
LOCK WASHER 12MM
Price
N/A
66
FLAT WASHER 12MM
Price
N/A
67
HEX NUT M12-1.75
Price
N/A
68
SHEAR BLADE ARM
Item is no longer available
Price
N/A
69
Price
$617.05
70
PUNCH TABLE
Item is no longer available
Price
N/A
71
FLAT HD CAP SCR M12-1.75 X 35
Price
N/A
72
PUNCH TABLE EXTENSION
Item is no longer available
Price
N/A
73
FLAT HD CAP SCR M12-1.75 X 20
Price
N/A
74
SHEAR TABLE
Item is no longer available
Price
N/A
75
FLAT HD CAP SCR M12-1.75 X 25
Price
N/A
76
NOTCH TABLE
Item is no longer available
Price
N/A
77
FLAT HD CAP SCR M10-1.5 X 30
Price
N/A
78
FLAT HD CAP SCR M8-1.25 X 25
Price
N/A
79
TABLE GUIDE
Item is no longer available
Price
N/A
81
LOCK HANDLE 1/2-13
Item is no longer available
Price
N/A
82
P0647082
Now: PW01
FLAT WASHER 1/2
Price
N/A
83
CARRIAGE BOLT 1/2-13 X 1-3/4
Price
N/A
84
SECTION REAR COVER
Item is no longer available
Price
N/A
85
ANGLE REAR COVER
Item is no longer available
Price
N/A
86
SHEAR REAR COVER
Item is no longer available
Price
N/A
87
SHEAR BOTTOM COVER
Item is no longer available
Price
N/A
88
HEX BOLT M6-1 X 10
Price
N/A
89
FLAT WASHER 6MM
Price
N/A
90
MOUNTING BLOCK
Item is no longer available
Price
N/A
91
CAP SCREW M16-2 X 40
Price
N/A
92
LOCK WASHER 16MM
Price
N/A
93
PUNCH SIDE GUARD
Item is no longer available
Price
N/A
94
HEX BOLT M6-1 X 10
Price
N/A
95
FLAT WASHER 6MM
Price
N/A
96
PUNCH GUARD PLEXIGLASS
Item is no longer available
Price
N/A
97
FLAT WASHER 6MM
Price
N/A
98
HEX BOLT M6-1 X 10
Price
N/A
99
PUNCH TABLE CONNECTING PLATE
Item is no longer available
Price
N/A
100
FLAT WASHER 12MM
Price
N/A
101
HEX NUT M12-1.75
Price
N/A
102
KNURLED KNOB SET SCREW
Price
N/A
103
PUNCH STRIPPER TOP PLATE
Price
N/A
104
PUNCH PRESSURE PLATE
Price
N/A
105
KNURLED KNOB
Price
N/A
106
CAP SCREW M8-1.25 X 25
Price
N/A
107
COMPRESSION SPRING
Price
N/A
108
BUSHING
Price
N/A
109
FLAT WASHER 10MM
Price
N/A
110
CAP SCREW M10-1.5 X 40
Price
N/A
111
KEY 4 X 4 X 25
Price
N/A
113
PUNCH ADAPTER 81031 3-19MM
Price
N/A
114
ROUND PUNCH 22MM
Price
N/A
115
ROUND PUNCH ADAPTER 5-29MM
Price
N/A
117
PUNCH ADAPTER 9036 13-38MM
Price
N/A
118
STRIPPER ADJUSTMENT SHAFT
Price
N/A
119
COMPRESSION SPRING
Price
N/A
120
EXT TOOTH WASHER 12MM
Price
N/A
121
PUNCH RETAINING RING
Price
N/A
122
PUNCH STRIPPER BASE
Price
N/A
124
ROUND DIE SHOE
Price
N/A
125
ROUND DIE 5-29MM
Price
N/A
126
SET SCREW M12-1.75 X 55
Price
N/A
127
HEX BOLT M12-1.75 X 55
Price
N/A
127-1
LOCK WASHER 12MM
Price
N/A
128
PUNCH BOLSTER CLAMP
Price
N/A
129
PUNCH BOLSTER
Price
N/A
130
TEE NUT M12-1.75
Price
N/A
131
NOTCH STRIPPER PLATE
Item is no longer available
Price
N/A
132
LOCK WASHER 16MM
Price
N/A
133
CAP SCREW M16-2 X 30
Price
N/A
134
NOTCH END GUARD
Item is no longer available
Price
N/A
135
HEX BOLT M6-1 X 10
Price
N/A
136
FLAT WASHER 6MM
Price
N/A
137
NOTCH PUNCH
Price
N/A
138
CAP SCREW M20-2.5 X 90
Price
N/A
139
NOTCH SIDE DIE
Price
N/A
140
NOTCH END DIE
Price
N/A
141
NOTCH BOLSTER
Price
N/A
142
CAP SCREW M10-1.5 X 25
Price
N/A
143
SET SCREW M8-1.25 X 25
Price
N/A
144
NOTCH BOLSTER CLAMP
Price
N/A
145
LOCK WASHER 12MM
Price
N/A
146
FLAT WASHER 12MM
Price
N/A
147
HEX BOLT M12-1.75 X 55
Price
N/A
148
CAP SCREW M10-1.5 X 25
Price
N/A
149
TEE NUT M12-1.75
Price
N/A
150
MOUNTING PLATE
Item is no longer available
Price
N/A
151
CAP SCREW M6-1 X 70
Price
N/A
152
FLAT WASHER 6MM
Price
N/A
153
RAM LIMIT SWITCH
Price
N/A
154
FLAT WASHER 4MM
Price
N/A
155
PHLP HD SCR M4-.7 X 30
Price
N/A
157
HEX NUT M4-.7
Price
N/A
158
SPACER 6MM
Item is no longer available
Price
N/A
159
SPACER 8MM
Item is no longer available
Price
N/A
160
LIMIT STOP BRACKET
Item is no longer available
Price
N/A
161
CAP SCREW M8-1.25 X 55
Price
N/A
162
LIMIT STOP ASSEMBLY
Item is no longer available
Price
N/A
163
SET SCREW M8-1.25 X 10
Price
N/A
164
HEX BOLT M12-1.75 X 150
Price
N/A
165
FLAT WASHER 12MM
Price
N/A
166
LOCK COLLAR
Item is no longer available
Price
N/A
167
HEX NUT M12-1.75
Price
N/A
168
Price
$4,111.55
169
RAM
Item is no longer available
Price
N/A
170
BUSHING
Item is no longer available
Price
N/A
171
CYLINDER AXLE
Item is no longer available
Price
N/A
172
EXT RETAINING RING 70MM
Price
N/A
173
HYDRAULIC LINE MANIFOLD CYLINDER
Price
N/A
174
HYDRAULIC LINE MANIFOLD CYLINDER
Price
N/A
175
HYDRAULIC MANIFOLD
Price
N/A
176
HYDRAULIC TANK PUMP
Price
N/A
177
HYDRAULIC MANIFOLD
Price
N/A
178
OIL CATCH PAN
Price
N/A
179
HYDRAULIC CONTROL VALVE ASSY
Price
N/A
180
HYDRAULIC VALVE SOLENOID
Price
N/A
181
HYDRAULIC RESERVOIR
Price
N/A
181-1
RESERVOIR ACCESS PANEL
Price
N/A
181-2
HEX BOLT M6-1 X 10
Price
N/A
181-3
RES. ACCESS PANEL GASKET
Price
N/A
182
OIL SIGHT GLASS & THERMOMETER
Price
N/A
183
Price
$661.25
183-1
MOTOR 5HP 3PH 220/440V
Price
N/A
183-2
MOTOR 5HP 3PH 220/440V
Price
N/A
183-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
184
HYDRAULIC PUMP
Item is no longer available
Price
N/A
185
FILLER CAP ASSEMBLY
Price
N/A
185-1
FILLER CAP ASSEMBLY
Price
N/A
185-2
FILLER CAP ASSEMBLY
Price
N/A
186
CAP SCREW M5-.8 X 10
Price
N/A
187
OIL LINE ELBOW CONNECTOR 4MM
Price
N/A
188
OIL LINE 4WAY CONNECTOR 4MM
Price
N/A
189
OIL LINE 4MM
Price
N/A
189-1
ONE SHOT OILER
Price
N/A
190
FOOT PEDAL
Price
N/A
190-1
FOOT PEDAL FLEXIBLE CONDUIT W/CABLE
Price
N/A
190-2
FOOT PEDAL FLEXIBLE CONDUIT W/CABLE
Price
N/A
191
EMERGENCY STOP BUTTON
Price
N/A
191-1
EMERGENCY STOP BUTTON BOX
Price
N/A
194

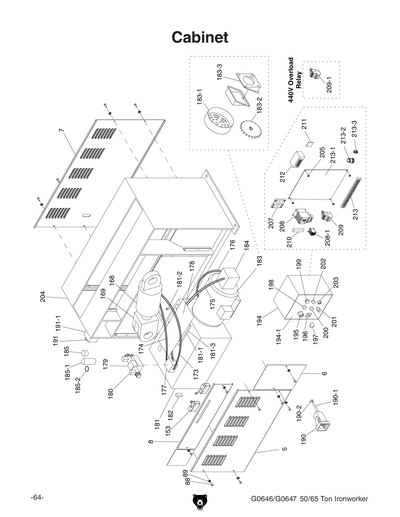

ELECTRICAL CABINET
Price
N/A
194-1
CABINET DOOR
Price
N/A
195
ROTARY SWITCH
Price
N/A
196
DOOR LOCK
Price
N/A
197
DOOR LOCK KEY PLASTIC
Price
N/A
198
POWER LAMP
Price
N/A
199
EMERGENCY STOP BUTTON
Price
N/A
200
MOTOR START BUTTON
Price
N/A
201
NORMAL/INCH SWITCH
Price
N/A
202
MOTOR STOP BUTTON
Price
N/A
203
PUNCH/NOTCH SWITCH
Price
N/A
204
BASE
Item is no longer available
Price
N/A
205
HEX NUT M6-1
Price
N/A
207
MAIN POWER SWITCH
Price
N/A
208
CONTACTOR TECO 16-N 220V
Price
N/A
208-1
CONTACTOR TECO CNA-2 220/440V
Price
N/A
209
OL RELAY TECO RHN-10K 12.5-18A
Price
N/A
209-1
OL RELAY TECO RHN-10K 7-11
Price
N/A
210
FUSE ASSEMBLY 5A
Price
N/A
211
ELECTRICAL COMMUTATOR
Price
N/A
212
TRANSFORMER 81VA 220/440V-12/27V
Price
N/A
213
TERMINAL BLOCK
Price
N/A
213-1
TERMINAL BLOCK
Price
N/A
213-2
TERMINAL BLOCK
Price
N/A
213-3
TERMINAL BLOCK
Price
N/A
215

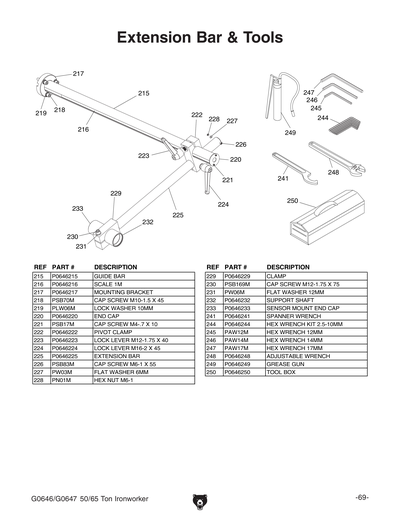

GUIDE BAR
Price
N/A
216
SCALE 1M
Price
N/A
217
MOUNTING BRACKET
Price
N/A
218
CAP SCREW M10-1.5 X 45
Price
N/A
219
LOCK WASHER 10MM
Price
N/A
220
END CAP
Price
N/A
221
CAP SCREW M4-.7 X 10
Price
N/A
222
PIVOT CLAMP
Price
N/A
223
LOCK LEVER M12-1.75 X 40
Price
N/A
224
LOCK LEVER M16-2 X 45
Price
N/A
225
EXTENSION BAR
Price
N/A
226
CAP SCREW M6-1 X 55
Price
N/A
227
FLAT WASHER 6MM
Price
N/A
228
HEX NUT M6-1
Price
N/A
229
CLAMP
Price
N/A
230
CAP SCREW M12-1.75 X 75
Price
N/A
231
FLAT WASHER 12MM
Price
N/A
232
SUPPORT SHAFT
Price
N/A
233
SENSOR MOUNT END CAP
Price
N/A
241
SPANNER WRENCH
Price
N/A
244
WRENCH HEX SET 2.5-10MM
Price
N/A
245
HEX WRENCH 12MM
Price
N/A
246
HEX WRENCH 14MM
Price
N/A
247
HEX WRENCH 17MM
Price
N/A
248
ADJUSTABLE WRENCH
Price
N/A
249
GREASE GUN
Price
N/A
250
TOOL BOX
Price
N/A
301

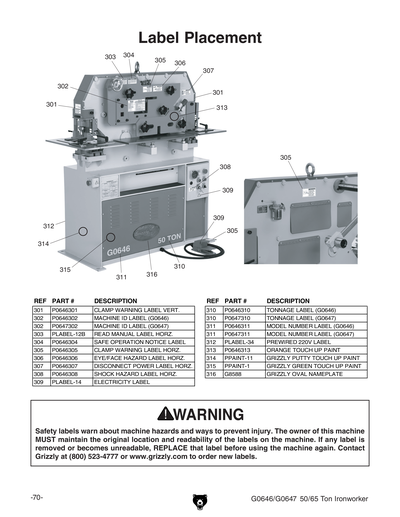

CLAMP WARNING LABEL VERT
Price
N/A
302
MACHINE ID LABEL
Item is no longer available
Price
N/A
303
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
304
SAFE OPERATION NOTICE LABEL
Price
N/A
305
CLAMP WARNING LABEL HORZ
Price
N/A
306
EYE/FACE HAZARD LABEL HORZ.
Price
N/A
307
DISCONNECT POWER LABEL HORZ.
Price
N/A
308
SHOCK HAZARD LABEL HORZ.
Price
N/A
309
ELECTRICITY 1.4W X 1.2H
Price
N/A
310
TONNAGE LABEL
Item is no longer available
Price
N/A
311
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
312
PREWIRED 220V 3.3W X 2.2H
Price
N/A
313
ORANGE REF G0524
Price
N/A
314
GREY PUTTY REF G0504
Price
N/A
315
N/S GRIZZLY GREEN G1023S
Price
N/A
316
Nameplate - Small
Price
N/A
MAN
MANUAL FOR G0646/G0647 01/08
Price
N/A
