Parts for G0758 6" x 20" 3/4 HP Mill/Drill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

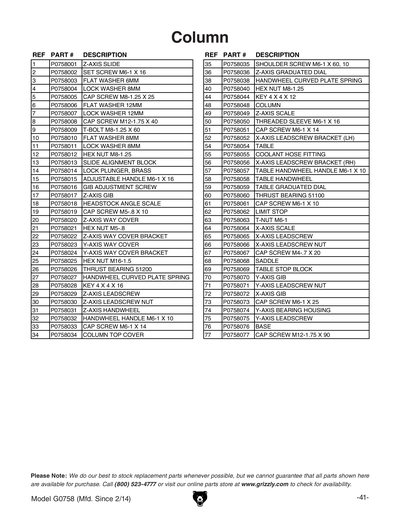

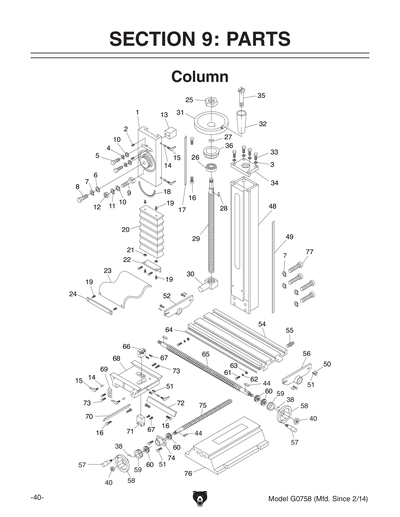

1
Z-AXIS SLIDE
2
SET SCREW M6-1 X 16
Price
N/A
3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
CAP SCREW M8-1.25 X 25
Price
N/A
6
Now: PW06M
FLAT WASHER 12MM
Price
N/A
7
LOCK WASHER 12MM
Price
N/A
8
CAP SCREW M12-1.75 X 40
Price
N/A
9
T-BOLT M8-1.25 X 60 V1
Price
N/A
10
Now: PW01M
FLAT WASHER 8MM
Price
N/A
11
LOCK WASHER 8MM
Price
N/A
12
Now: PN03M
HEX NUT M8-1.25
Price
N/A
13
SLIDE ALIGNMENT BLOCK
14
LOCK PLUNGER, BRASS
15
ADJUSTABLE HANDLE M6-1 X 16
Price
N/A
16
GIB ADJUSTMENT SCREW M6-1 X 25
17
Z-AXIS GIB
18
HEADSTOCK ANGLE SCALE
19
CAP SCREW M5-.8 X 10
Price
N/A
20
*DISCD*Z-AXIS WAY COVER
Item is no longer available
Price
N/A
21
Now: PN06M
HEX NUT M5-.8
Price
N/A
22
Z-AXIS WAY COVER BRACKET
23
Y-AXIS WAY COVER
24
Y-AXIS WAY COVER BRACKET
25
Now: PN05M
HEX NUT M16-1.5
Price
N/A
26
THRUST BEARING 51200
Price
N/A
27
INDICATOR PLATE
28
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
29
Z-AXIS LEADSCREW
29A
Z-AXIS LEADSCREW ASSEMBLY
30
Z-AXIS LEADSCREW NUT
31
HANDWHEEL TYPE-4 100D X 10B-K X M6-1
32
HANDLE W/OUT SHAFT 15 X 50, 8D
33
CAP SCREW M6-1 X 14
Price
N/A
34
COLUMN TOP COVER
35
SHOULDER SCREW M6-1 X 60, 8 X 45
36
Z-AXIS GRADUATED DIAL
38
HANDWHEEL CURVED PLATE SPRING
40
Now: PN03M
HEX NUT M8-1.25
Price
N/A
44
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
48
COLUMN
48-1
LUBRICATION DOOR
49
Z-AXIS SCALE
50
THREADED SLEEVE M6-1 X 16
51
CAP SCREW M6-1 X 14
Price
N/A
52
X-AXIS LEADSCREW BRACKET (LH)
54
TABLE
55
COOLANT HOSE FITTING
56
X-AXIS LEADSCREW BRACKET (RH)
57
HANDLE W/OUT SHAFT 15 X 50, 8D
Price
N/A
58
HANDWHEEL TYPE-4 100D X 10B-K X M6-1
Price
N/A
59
TABLE GRADUATED DIAL
60
THRUST BEARING 51100
Price
N/A
61
CAP SCREW M6-1 X 10
Price
N/A
62
LIMIT STOP
63
T-NUT M6-1
64
X-AXIS SCALE
65
X-AXIS LEADSCREW
66
X-AXIS LEADSCREW NUT
67
CAP SCREW M4-.7 X 20
Price
N/A
68
SADDLE
69
TABLE STOP BLOCK
70
Y-AXIS GIB
71
Y-AXIS LEADSCREW NUT
72
X-AXIS GIB
73
CAP SCREW M6-1 X 25
Price
N/A
74
Y-AXIS BEARING HOUSING
75
Y-AXIS LEADSCREW
76
BASE
77
CAP SCREW M12-1.75 X 90
Price
N/A

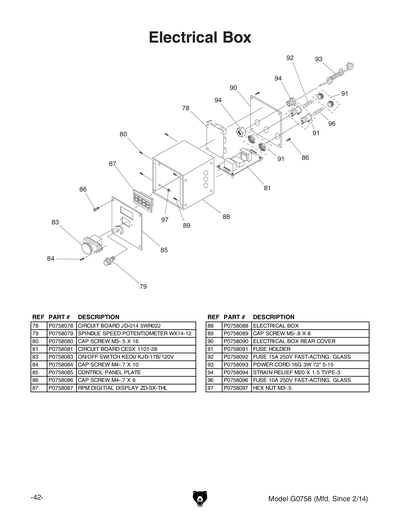

78
CIRCUIT BOARD JD-014 5WR02J
79
SPINDLE SPEED POTENTIOMETER WX14-12
80
CAP SCREW M3-.5 X 16
Price
N/A
81
CIRCUIT BOARD CESX 1101-28
83
ON/OFF SWITCH KEDU KJD-17B/120V
84
CAP SCREW M4-.7 X 10
Price
N/A
85
CONTROL PLANEL PLATE
86
CAP SCREW M4-.7 X 6
Price
N/A
87
RPM DIGITAL DISPLAY ZD-SX-THL
88
ELECTRICAL BOX
89
CAP SCREW M5-.8 X 8
Price
N/A
90
ELECTRICAL BOX REAR COVER
91
FUSE HOLDER
Price
N/A
92
FUSE 15A 250V FAST-ACTING, GLASS
93
POWER CORD 16G 3W 72" 5-15P
94
STRAIN RELIEF M20 X 1.5 TYPE-3
Price
N/A
95
FWD/REV SWITCH KEDU EN61058
Price
N/A
96
FUSE 10A 250V FAST-ACTING GLASS
Price
N/A
97
Now: PN07M
HEX NUT M3-.5
Price
N/A
98
SET SCREW M10-1.5 X 8
Price
N/A

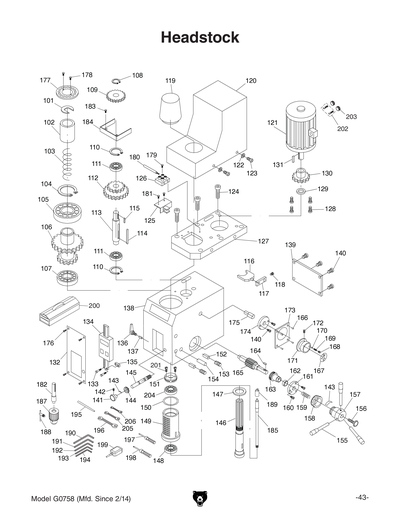

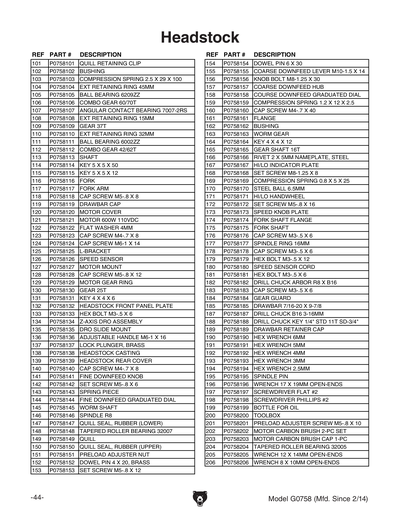

101
QUILL RETAINING CLIP
102
BUSHING
103
COMPRESSION SPRING 2.5 X 29 X 100
104
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
105
BALL BEARING 6209ZZ
Price
N/A
106
COMBO GEAR 60/70T
107
ANGULAR CONTACT BEARING 7007-2RSD
108
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
109
GEAR 37T 15MM ID BORE
Price
N/A
110
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
111
BALL BEARING 6002ZZ
Price
N/A
112
COMBO GEAR 42/62T
113
SHAFT
114
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
115
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
116
FORK
117
FORK ARM
118
CAP SCREW M5-.8 X 8
Price
N/A
119
DRAWBAR CAP
120
MOTOR COVER
121
MOTOR 600W 110VDC
122
Now: PW05M
FLAT WASHER 4MM
Price
N/A
123
CAP SCREW M4-.7 X 8
Price
N/A
124
CAP SCREW M6-1 X 14
Price
N/A
125
L-BRACKET
126
SPEED SENSOR
127
MOTOR MOUNT
128
CAP SCREW M5-.8 X 12
Price
N/A
129
MOTOR GEAR RING
130
GEAR 25T
131
Now: PK72M
KEY 4 X 4 X 6
Price
N/A
132
HEADSTOCK FRONT PANEL PLATE
133
HEX BOLT M3-.5 X 6
Price
N/A
134
Z-AXIS DRO ASSEMBLY
135
DRO SLIDE MOUNT
136
ADJUSTABLE HANDLE M6-1 X 16
Price
N/A
137
LOCK PLUNGER, BRASS
Price
N/A
138
HEADSTOCK CASTING
139
HEADSTOCK REAR COVER
140
CAP SCREW M4-.7 X 8
Price
N/A
141
FINE DOWNFEED KNOB 12 X 26 X 45D
142
SET SCREW M5-.8 X 6
Price
N/A
143
SPRING PIECE
144
FINE DOWNFEED GRADUATED DIAL
145
WORM SHAFT
146
SPINDLE R8
147
QUILL SEAL, RUBBER (LOWER)
148
TAPERED ROLLER BEARING 32005
Price
N/A
149
QUILL
150
QUILL SEAL, RUBBER (UPPER)
151
PRELOAD ADJUSTER NUT
152
DOWEL PIN 4 X 20
Price
N/A
153
SET SCREW M5-.8 X 12
Price
N/A
154
DOWEL PIN 6 X 30
155
COARSE DOWNFEED LEVER M10-1.5 X 14
156
KNOB BOLT M8-1.25 X 30
157
COARSE DOWNFEED HUB
158
COURSE DOWNFEED GRADUATED DIAL
159
COMPRESSION SPRING 1.2 X 12 X 2.5
160
CAP SCREW M4-.7 X 40
Price
N/A
161
FLANGE
162
BUSHING
163
WORM GEAR
164
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
165
GEAR SHAFT 16T
166
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
167
HI/LO INDICATOR PLATE
168
SET SCREW M8-1.25 X 8
Price
N/A
169
COMPRESSION SPRING 0.8 X 5 X 25
170
STEEL BALL 6.5MM
Price
N/A
171
HI/LO HANDWHEEL
172
SET SCREW M5-.8 X 16
Price
N/A
173
SPEED KNOB PLATE
174
FORK SHAFT FLANGE
175
FORK SHAFT
176
CAP SCREW M3-.5 X 6
Price
N/A
177
SPINDLE RING 16MM
178
CAP SCREW M3-.5 X 6
Price
N/A
179
HEX BOLT M3-.5 X 12
Price
N/A
180
SPEED SENSOR CORD
181
HEX BOLT M3-.5 X 6
Price
N/A
182
DRILL CHUCK ARBOR R8 X B16
183
CAP SCREW M3-.5 X 6
Price
N/A
184
GEAR GUARD
185
DRAWBAR 7/16-20 X 9-7/8
187
DRILL CHUCK B16 3-16MM
Price
N/A
188
DRILL CHUCK KEY 1/4" STD 11T SD-3/4"
189
DRAWBAR RETAINER CAP
190
HEX WRENCH 6MM
Price
N/A
191
HEX WRENCH 5MM
Price
N/A
192
HEX WRENCH 4MM
Price
N/A
193
HEX WRENCH 3MM
Price
N/A
194
HEX WRENCH 2.5MM
Price
N/A
195
SPINDLE PIN
196
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
197
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
198
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
199
BOTTLE FOR OIL
200
TOOLBOX
201
PRELOAD ADJUSTER SCREW M5-.8 X 10
202
MOTOR CARBON BRUSH (SINGLE)
203
MOTOR CARBON BRUSH CAP 1-PC
204
TAPERED ROLLER BEARING 32005
Price
N/A
205
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
206
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A

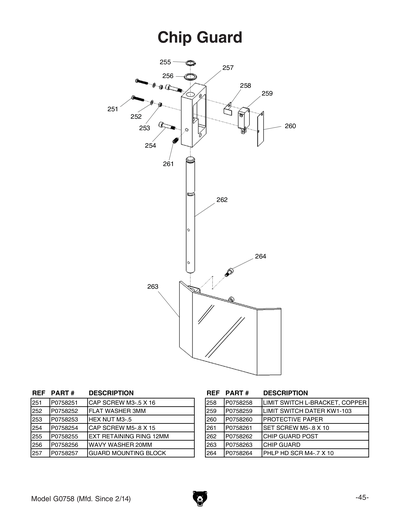

251
CAP SCREW M3-.5 X 16
Price
N/A
252
Now: PW07M
FLAT WASHER 3MM
Price
N/A
253
Now: PN07M
HEX NUT M3-.5
Price
N/A
254
CAP SCREW M5-.8 X 15
Price
N/A
255
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
256
WAVY WASHER 12MM
Price
N/A
257
GUARD MOUNTING BLOCK
258
LIMIT SWITCH DATER KW1-103
Price
N/A
259
LIMIT SWITCH DATER KW1-103
Price
N/A
260
PROTECTIVE PAPER
261
SET SCREW M5-.8 X 10
Price
N/A
262
CHIP GUARD POST
263
CHIP GUARD
264
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
265
ROUND INSPECTION COVER
Price
N/A
266
CAP SCREW M4-.7 X 8
Price
N/A

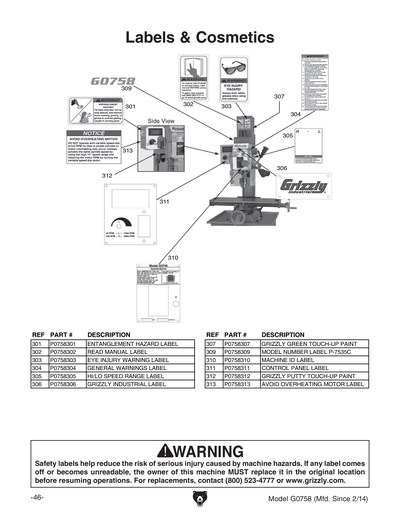

301
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
302
READ MANUAL 1.5W X 2.5H
Price
N/A
303
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
304
GENERAL WARNINGS LABEL
305
HIGH/LOW SPEED LABEL
Price
N/A
306
GRIZZLY INDUSTRIAL LABEL
307
N/S GRIZZLY GREEN G1023S
Price
N/A
308
GRIZZLY.COM LABEL P-7535C
309
MODEL NUMBER LABEL P-7535C
310
MACHINE ID LABEL
311
CONTROL PANEL LABEL
312
GREY PUTTY REF G0504
Price
N/A
313
AVOID OVERHEATING MOTOR LABEL
MAN
MANUAL G0758 MFD-1/13+ V1.03.14
P
STEEL BALL 6.5MM
