Parts for G0781 - 4" x 18" 3/4 HP Mill/Drill

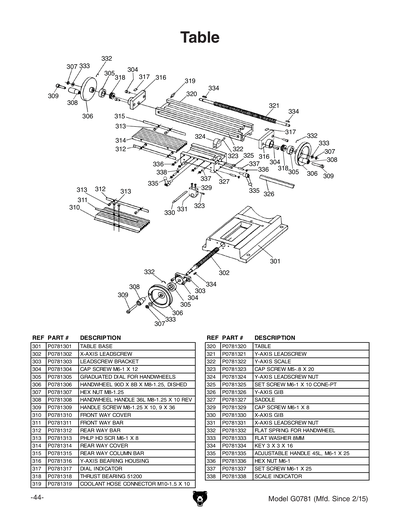

Part Diagram for G0781

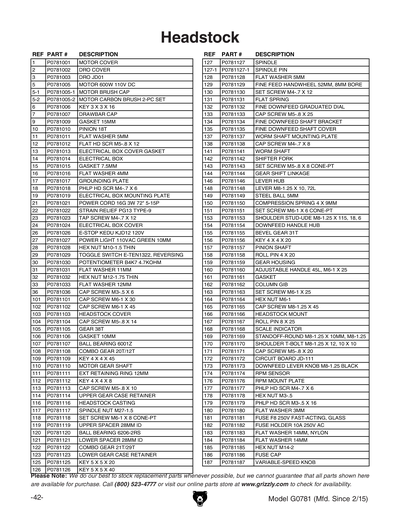

Part Diagram for G0781

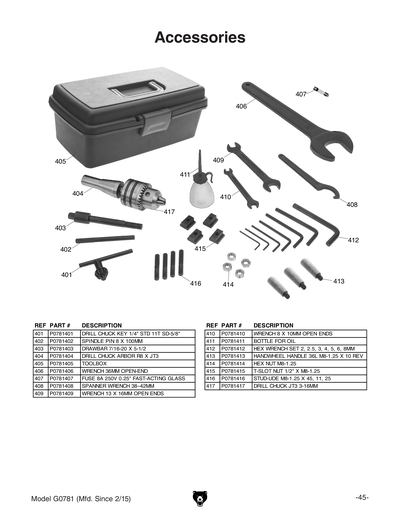

Part Diagram for G0781

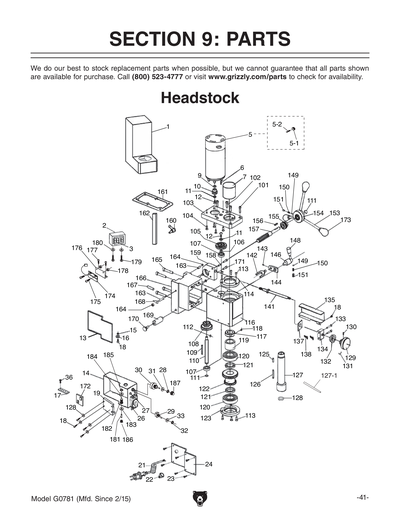

Part Diagram for G0781

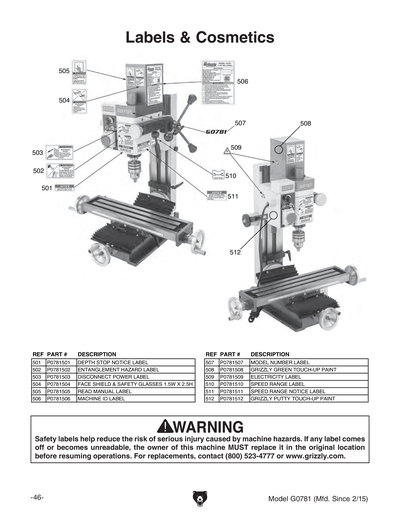

Part Diagram for G0781

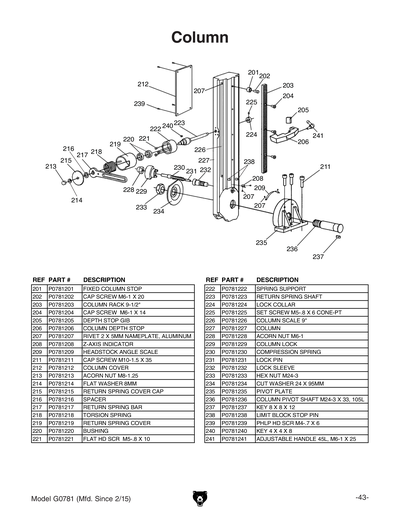

Part Diagram for G0781
Part Diagram for G0781
Part Diagram for G0781
Part Diagram for G0781
Part Diagram for G0781
Part Diagram for G0781
Part Diagram for G0781

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR COVER
Price
$51.25
2
DRO COVER
Price
$11.90
3
DRO JD011
Price
$73.35
5
MOTOR 600W 110V DC
Price
$303.10
5-1
MOTOR BRUSH CAP
Price
$6.90
5-2
MOTOR CARBON BRUSH 2-PC SET
Price
$13.70
6
KEY 3 X 3 X 16
Price
N/A
7
DRAWBAR CAP
Price
$11.65
9
GASKET 15MM
Price
$3.65
10
PINION 18T
Price
$14.75
11
FLAT WASHER 5MM
Price
$2.60
12
FLAT HD SCR M5-.8 X 10
Price
N/A
14
ELECTRICAL BOX
Price
$22.75
16
FLAT WASHER 4MM
Price
N/A
18
TAP SCREW M4 X 12
Price
N/A
19
CIRCUIT BOARD JD-111 W/MOUNTING PLATE
Price
N/A
21
POWER CORD 16G 3W 72" 5-15P
Price
$15.15
22
STRAIN RELIEF PG13 TYPE-9
Price
$11.20
23
*DISCD*TAP SCREW M4-.7 X 12
Item is no longer available
Price
N/A
24
ELECTRICAL BOX COVER
Price
$8.65
26
E-STOP KEDU KJD12 120V
Price
$40.60
27
POWER LIGHT 110VAC GREEN 10MM
Price
$5.85
28
HEX NUT M10-1.5 THIN
Price
N/A
29
TOGGLE SWITCH E-TEN1322, REVERSING
Price
$11.90
30
POTENTIOMETER B4K7 4.7KOHM
Price
N/A
31
FLAT WASHER 11MM
Price
N/A
32
HEX NUT M12-1.75 THIN
Price
N/A
33
FLAT WASHER 12MM
Price
N/A
36
CAP SCREW M3-.5 X 6
Price
N/A
101
CAP SCREW M6-1 X 40
Price
N/A
102
CAP SCREW M6-1 X 45
Price
N/A
103
HEADSTOCK COVER
Price
$58.25
104
CAP SCREW M5-.8 X 14
Price
N/A
105
GEAR 38T
Price
$21.50
106
GASKET 10MM
Price
$8.10
107
BALL BEARING 6001Z
Price
N/A
108
COMBO GEAR 20T/12T V1
Price
$23.20
108V2
COMBO GEAR 16T/26T V2.01.23
Price
$46.85
109
KEY 4 X 4 X 45
Price
N/A
110
MOTOR GEAR SHAFT
Price
$9.00
111
EXT RETAINING RING 12MM
Price
N/A
112
KEY 4 X 4 X 8
Price
N/A
113
CAP SCREW M5-.8 X 10
Price
N/A
114
UPPER GEAR CASE RETAINER
Price
$2.25
116
HEADSTOCK CASTING
Price
$99.20
117
SPINDLE NUT W/ MAGNETS
Price
$12.50
118
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
119
UPPER SPACER 28MM ID
Price
$2.60
120
BALL BEARING 6206-2RS
Price
N/A
121
LOWER SPACER 28MM ID
Price
$2.90
122
COMBO GEAR 21T/29T
Price
$29.15
122V2
COMBO GEAR 27T/37T V2.01.23
Price
$57.95
123
LOWER GEAR CASE RETAINER
Price
$2.60
125
KEY 5 X 5 X 20
Price
N/A
126
KEY 5 X 5 X 40
Price
N/A
127
SPINDLE
Price
$87.00
127-1
SPINDLE PIN
Price
$6.50
128
BEARING SPACER
Price
$17.90
129
FINE FEED HANDWHEEL 52MM, 8MM BORE
Price
$19.00
130
SET SCREW M4-.7 X 12
Price
N/A
131
FLAT SPRING
Price
$2.20
132
FINE DOWNFEED GRADUATED DIAL
Price
$9.75
133
CAP SCREW M5-.8 X 25
Price
N/A
134
FINE DOWNFEED SHAFT BRACKET
Price
$4.35
135
FINE DOWNFEED SHAFT COVER
Price
$4.35
137
WORM SHAFT MOUNTING PLATE
Price
$4.35
138
CAP SCREW M4-.7 X 8
Price
N/A
141
WORM SHAFT
Price
$21.60
142
SHIFTER FORK
Price
$6.70
143
SET SCREW M5-.8 X 8 CONE-PT
Price
N/A
144
GEAR SHIFT LINKAGE
Price
$5.45
146
LEVER HUB
Price
$6.50
148
LEVER M8-1.25 X 10, 72L
Price
$6.50
149
STEEL BALL 4.5MM
Price
N/A
150
COMPRESSION SPRING 4 X 9MM
Price
$2.60
151
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
153
SHOULDER STUD-UDE M8-1.25 X 115, 18, 6
Price
$7.15
154
DOWNFEED HANDLE HUB
Price
$15.15
155
BEVEL GEAR 31T
Price
$17.90
156
KEY 4 X 4 X 20
Price
N/A
157
PINION SHAFT
Price
$21.60
158
ROLL PIN 4 X 20
Price
N/A
159
GEAR HOUSING
Price
$31.35
160
ADJUSTABLE HANDLE 45L, M6-1 X 25
Price
$9.00
161
GASKET
Price
$3.65
162
COLUMN GIB
Price
$17.25
163
SET SCREW M6-1 X 25
Price
N/A
164
HEX NUT M6-1
Price
N/A
165
CAP SCREW M8-1.25 X 45
Price
N/A
166
HEADSTOCK MOUNT
Price
$90.60
167
TAPER PIN W/INT THREADS M5-.5 X 25MM
Price
$2.25
168
SCALE INDICATOR
Price
$1.90
169
STANDOFF-ROUND M8-1.25 X 10MM, M8-1.25
Price
$4.35
170
SHOULDER T-BOLT M8-1.25 X 12, 10 X 10
Price
$2.20
171
CAP SCREW M5-.8 X 25
Price
N/A
172
CIRCUIT BOARD JD-111 W/MOUNTING PLATE
Price
$200.60
173
DOWNFEED LEVER KNOB M8-1.25 BLACK
Price
$6.15
174
RPM SENSOR
Price
$21.60
176
RPM MOUNT PLATE
Price
$3.65
177
PHLP HD SCR M4-.7 X 6
Price
N/A
178
HEX NUT M3-.5
Price
N/A
179
TAP SCREW M4 X 10
Price
N/A
180
FLAT WASHER 3MM
Price
N/A
181
FUSE F8 250V FAST-ACTING, GLASS
Price
$2.60
182
FUSE HOLDER 10A 250V AC
Price
$3.65
183
FLAT WASHER 14MM
Price
N/A
184
FLAT WASHER 14MM
Price
N/A
185
HEX NUT M14-2
Price
N/A
186
FUSE HOLDER 10A 250V AC
Price
N/A
187
POTENTIOMETER B4K7 4.7KOHM
Price
N/A
201
FIXED COLUMN STOP
Price
$2.20
202
CAP SCREW M6-1 X 20
Price
N/A
203
COLUMN RACK 9-1/2"
Price
$25.90
204
CAP SCREW M6-1 X 14
Price
N/A
205
DEPTH STOP GIB
Price
$4.50
206
COLUMN DEPTH STOP
Price
$20.90
207
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
208
Z-AXIS INDICATOR
Price
$1.90
209
HEADSTOCK ANGLE SCALE
Price
$2.90
211
CAP SCREW M10-1.5 X 35
Price
N/A
212
COLUMN COVER
Price
$4.35
213
ACORN NUT M8-1.25
Price
N/A
214
FLAT WASHER 8MM
Price
N/A
215
RETURN SPRING COVER CAP
Price
$5.75
216
SPACER
Price
$2.20
217
RETURN SPRING BAR
Price
$17.25
218
TORSION SPRING
Price
$8.65
219
RETURN SPRING COVER
Price
$17.25
220
BUSHING
Price
$2.20
221
FLAT HD SCR M5-.8 X 10
Price
N/A
222
SPRING SUPPORT
Price
$10.85
223
RETURN SPRING SHAFT
Price
$15.15
224
LOCK COLLAR
Price
$2.90
225
SET SCREW M5-.8 X 6 CONE-PT
Price
N/A
226
COLUMN SCALE 9"
Price
$5.45
227
COLUMN
Price
$211.35
228
ACORN NUT M6-1
Price
N/A
229
COLUMN LOCK
Price
$4.35
230
COMPRESSION SPRING
Price
$1.90
231
LOCK PIN
Price
$2.20
232
LOCK SLEEVE
Price
$6.50
233
HEX NUT M24-3
Price
N/A
234
CLIPPED WASHER 24MM
Price
$15.15
235
PIVOT PLATE
Price
$107.85
236
COLUMN PIVOT SHAFT M24-3 X 33, 105L
Price
$12.95
237
KEY 8 X 8 X 12
Price
N/A
238
LIMIT BLOCK STOP PIN
Price
$1.90
239
PHLP HD SCR M4-.7 X 6
Price
N/A
240
KEY 4 X 4 X 8
Price
N/A
241
ADJUSTABLE HANDLE 45L, M6-1 X 25
Price
N/A
301
TABLE BASE
Price
$185.45
302
X-AXIS LEADSCREW
Price
$20.15
303
LEADSCREW BRACKET
Price
$32.40
304
CAP SCREW M6-1 X 12
Price
N/A
305
GRADUATED DIAL FOR HANDWHEELS
Price
$6.50
306
HANDWHEEL 90D X 8B X M8-1.25, DISHED
Price
$27.00
307
HEX NUT M8-1.25
Price
N/A
308
HANDWHEEL HANDLE 36L M8-1.25 X 10 REV
Price
$9.00
309
HANDWHEEL HANDLE 36L M8-1.25 X 10 REV
Price
N/A
310
FRONT WAY COVER
Price
$11.90
311
FRONT WAY BAR
Price
$3.65
312
REAR WAY BAR
Price
$3.65
313
PHLP HD SCR M6-1 X 8
Price
N/A
314
REAR WAY COVER
Price
$13.70
315
REAR WAY COLUMN BAR
Price
$2.20
316
Y-AXIS BEARING HOUSING
Price
$25.90
317
DIAL INDICATOR
Price
$1.90
318
THRUST BEARING 51200
Price
N/A
319
COOLANT HOSE CONNECTOR M10-1.5 X 10
Price
$6.15
320
TABLE
Price
$267.40
321
Y-AXIS LEADSCREW
Price
$30.95
322
Y-AXIS SCALE
Price
$8.35
323
CAP SCREW M5-.8 X 20
Price
N/A
324
Y-AXIS LEADSCREW NUT
Price
$29.00
325
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
326
Y-AXIS GIB
Price
$6.50
327
SADDLE
Price
$173.95
329
CAP SCREW M6-1 X 12
Price
N/A
330
X-AXIS GIB
Price
$5.45
331
X-AXIS LEADSCREW NUT
Price
$29.00
332
FLAT SPRING
Price
N/A
333
FLAT WASHER 8MM
Price
N/A
334
KEY 3 X 3 X 16
Price
N/A
335
ADJUSTABLE HANDLE 45L, M6-1 X 25
Price
N/A
336
HEX NUT M6-1
Price
N/A
337
SET SCREW M6-1 X 25
Price
N/A
338
SCALE INDICATOR
Price
N/A
401
DRILL CHUCK KEY 1/4" STD 11T SD-5/8"
Price
$13.70
402
SPINDLE PIN 8 X 100MM
Price
$4.35
403
DRAWBAR 7/16-20 X 5-1/2
Price
$18.00
404
DRILL CHUCK ARBOR R8 X JT3
Price
$46.40
405
TOOLBOX
Price
$31.35
406
WRENCH 36MM OPEN-END
Price
$21.60
407
FUSE 8A 250V 0.25" FAST-ACTING GLASS
Price
$2.25
408
SPANNER WRENCH 38-42MM
Price
$9.00
409
WRENCH 13 X 16MM OPEN-ENDS
Price
N/A
410
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
411
BOTTLE FOR OIL
Price
$9.00
412
HEX WRENCH SET 2,2.5,3,4,5,6,8MM
Price
$18.00
413
HANDWHEEL HANDLE 36L M8-1.25 X 10 REV
Price
N/A
414
HEX NUT M8-1.25
Price
N/A
415
T-SLOT NUT 1/2" X M8-1.25
Price
$11.90
416
STUD-UDE M8-1.25 X 45, 11, 25
Price
$9.00
417
DRILL CHUCK JT3 3-16MM
Price
$34.90
501
DEPTH STOP NOTICE LABEL
Price
$3.75
502
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
503
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
504
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
505
READ MANUAL 1.5W X 2.5H
Price
N/A
506
MACHINE ID LABEL
Price
$16.40
507
MODEL NUMBER LABEL
Price
$10.35
508
N/S GRIZZLY GREEN G1023S
Price
N/A
509
***USE PLABEL-14A***
Item is no longer available
Price
N/A
510
SPEED RANGE LABEL
Price
$2.50
511
SPEED RANGE NOTICE LABEL
Price
$3.15
512
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0781 MFD-02.15 V1.08.15
Price
$15.00
