Parts for G0971 - 51" Powered Slip Roll

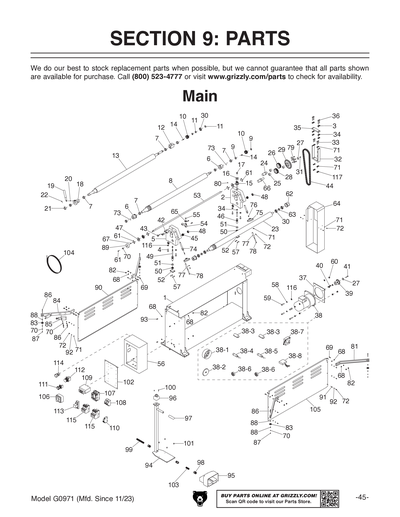

Part Diagram for G0971
Part Diagram for G0971
Part Diagram for G0971
Part Diagram for G0971
Part Diagram for G0971
Part Diagram for G0971

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

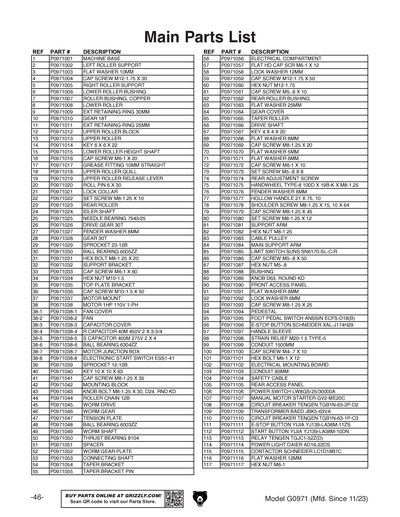

Ref #
Part #
Description
1
MACHINE BASE
Price
$1,225.50
2
LEFT ROLLER SUPPORT
Price
$824.45
3
FLAT WASHER 10MM
Price
N/A
4
CAP SCREW M12-1.75 X 30
Price
N/A
5
RIGHT ROLLER SUPPORT
Price
$824.45
6
LOWER ROLLER BUSHING
Price
$57.95
7
ROLLER BUSHING, COPPER
Price
$20.10
8
LOWER ROLLER
Price
$1,002.70
9
EXT RETAINING RING 30MM
Price
N/A
10
GEAR 18T
Price
$57.95
11
EXT RETAINING RING 25MM
Price
N/A
12
UPPER ROLLER BLOCK
Price
$57.95
13
UPPER ROLLER
Price
$1,158.65
14
KEY 6 X 6 X 22
Price
N/A
15
LOWER ROLLER HEIGHT SHAFT
Price
$23.20
16
CAP SCREW M6-1 X 20
Price
N/A
17
GREASE FITTING 10MM STRAIGHT
Price
$5.85
18
UPPER ROLLER QUILL
Price
$133.70
19
UPPER ROLLER RELEASE LEVER
Price
$35.70
20
ROLL PIN 6 X 30
Price
N/A
21
LOCK COLLAR
Price
$11.65
22
SET SCREW M8-1.25 X 10
Price
N/A
23
REAR ROLLER
Price
$1,024.95
24
IDLER SHAFT
Price
$23.20
25
NEEDLE BEARING 7943/25
Price
N/A
26
DRIVE GEAR 30T
Price
$81.15
27
FENDER WASHER 8MM
Price
N/A
28
GEAR 30T
Price
$81.15
29
SPROCKET 23-12B
Price
$169.40
30
BALL BEARING 6005ZZ
Price
N/A
31
HEX BOLT M8-1.25 X 20
Price
N/A
32
SUPPORT BRACKET
Price
$86.95
33
CAP SCREW M6-1 X 60
Price
N/A
34
HEX NUT M10-1.5
Price
N/A
35
TOP PLATE BRACKET
Price
$29.00
36
CAP SCREW M10-1.5 X 50
Price
N/A
37
MOTOR MOUNT
Price
$49.10
38
MOTOR 1HP 110V 1-PH
Price
$1,270.10
38-1
FAN COVER
Price
$35.70
38-2
FAN
Price
$31.25
38-3
CAPACITOR COVER
Price
$26.75
38-4
R CAPACITOR 40M 450V 2 X 3-3/4
Price
$44.60
38-5
S CAPACITOR 400M 275V 2 X 4
Price
$44.60
38-6
BALL BEARING 6304ZZ
Price
N/A
38-7
MOTOR JUNCTION BOX
Price
$31.25
38-8
ELECTRONIC START SWITCH ESS1-41
Price
$53.50
39
SPROCKET 12-12B
Price
$89.15
40
KEY 10 X 10 X 63
Price
$3.65
41
CAP SCREW M8-1.25 X 35
Price
N/A
42
MOUNTING BLOCK
Price
$29.00
43
KNOB BOLT M8-1.25 X 30, D24, RND KD
Price
$8.95
44
ROLLER CHAIN 12B
Price
$62.45
45
WORM DRIVE
Price
$62.45
46
WORM GEAR
Price
$66.90
47
TENSION PLATE
Price
$6.70
48
Bearing - 35mm x 17mm
Price
N/A
49
WORM SHAFT
Price
$22.35
50
THRUST BEARING 8104
Price
N/A
51
SPACER
Price
$6.70
52
WORM GEAR PLATE
Price
$11.65
53
CONNECTING SHAFT
Price
$72.70
54
TAPER BRACKET
Price
$72.70
55
TAPER BRACKET PIN
Price
$11.65
56
ELECTRICAL COMPARTMENT
Price
$249.60
57
FLAT HD CAP SCR M6-1 X 12
Price
N/A
58
LOCK WASHER 12MM
Price
N/A
59
CAP SCREW M12-1.75 X 50
Price
N/A
60
HEX NUT M12-1.75
Price
N/A
61
CAP SCREW M5-.8 X 10
Price
N/A
62
REAR ROLLER BUSHING
Price
$44.60
63
FLAT WASHER 25MM
Price
N/A
64
GEAR COVER
Price
$115.90
65
TAPER ROLLER
Price
$14.75
66
DRIVE SHAFT
Price
$29.00
67
KEY 4 X 4 X 20
Price
N/A
68
FLAT WASHER 8MM
Price
N/A
69
CAP SCREW M8-1.25 X 20
Price
N/A
70
FLAT WASHER 5MM
Price
N/A
71
FLAT WASHER 6MM
Price
N/A
72
CAP SCREW M6-1 X 10
Price
N/A
73
SET SCREW M5-.8 X 8
Price
N/A
74
REAR ADJUSTMENT SCREW
Price
$29.00
75
HANDWHEEL TYPE-8 100D X 19B-K X M8-1.25
Price
$35.70
76
FENDER WASHER 6MM
Price
N/A
77
HOLLOW HANDLE 21 X 75, 10
Price
$13.40
78
SHOULDER SCREW M8-1.25 X 15, 10 X 64
Price
$13.40
79
CAP SCREW M8-1.25 X 45
Price
N/A
80
SET SCREW M8-1.25 X 12
Price
N/A
81
SUPPORT ARM
Price
$53.50
82
HEX NUT M8-1.25
Price
N/A
83
CABLE PULLEY
Price
$17.90
84
MAIN SUPPORT ARM
Price
$66.90
85
LIMIT SWITCH SUNS SN6170-SL-C-R
Price
$289.70
86
CAP SCREW M5-.8 X 50
Price
N/A
87
HEX NUT M5-.8
Price
N/A
88
BUSHING
Price
$4.50
89
KNOB D63, ROUND KD
Price
$26.75
90
FRONT ACCESS PANEL
Price
$178.25
91
FLAT WASHER 6MM
Price
N/A
92
LOCK WASHER 6MM
Price
N/A
93
CAP SCREW M8-1.25 X 25
Price
N/A
94
PEDESTAL
Price
$262.95
95
FOOT PEDAL SWITCH ANSSIN ECFS-D18(B)
Price
$245.15
96
E-STOP BUTTON SCHNEIDER XAL-J174H29
Price
$57.95
97
HANDLE SLEEVE
Price
$13.40
98
STRAIN RELIEF M20-1.5 TYPE-5
Price
$8.95
99
CONDUIT 1500MM
Price
$31.25
100
CAP SCREW M4-.7 X 10
Price
N/A
101
HEX BOLT M6-1 X 12
Price
N/A
102
ELECTRICAL MOUNTING BOARD
Price
$37.95
103
CONDUIT 85MM
Price
$8.95
104
SAFETY CABLE
Price
$44.60
105
REAR ACCESS PANEL
Price
$178.25
106
POWER SWITCH LW8GS-25/30000A
Price
$75.85
107
MANUAL MOTOR STARTER GV2-ME20C
Price
$160.45
108
CIRCUIT BREAKER TENGEN TGB1N-63-2P-D2
Price
$49.10
109
TRANSFORMER BAED JBK5-63VA
Price
$124.85
110
CIRCUIT BREAKER TENGEN TGB1N-63-1P-C3
Price
$40.15
111
E-STOP BUTTON YIJIA YJ139-LA38M-11ZS
Price
$40.15
112
START BUTTON YIJIA YJ139-LA38M-10DN
Price
$40.15
113
RELAY TENGEN TGJC1-52Z(D)
Price
$44.60
114
POWER LIGHT DAIER AD16-22DS
Price
$40.15
115
CONTACTOR SCHNEIDER LC1D18B7C
Price
$120.40
116
FLAT WASHER 12MM
Price
N/A
117
HEX NUT M6-1
Price
N/A

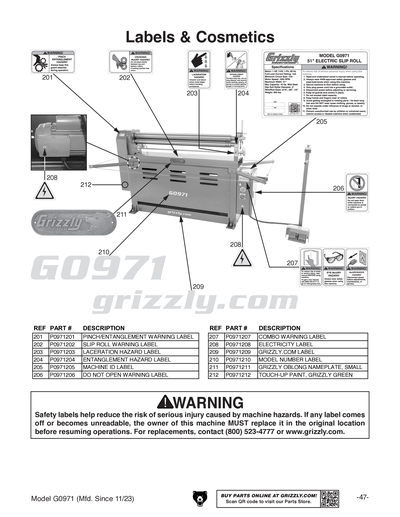

201
PINCH/ENTANGLEMENT WARNING LABEL
Price
$4.40
202
SLIP ROLL WARNING 2.8W X 1.5H
Price
N/A
203
LACERATION HAZARD LABEL
Price
$4.40
204
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
205
MACHINE ID LABEL
Price
$16.95
206
DO NOT OPEN WARNING LABEL
Price
$4.40
207
COMBO WARNING LABEL
Price
$4.40
208
ELECTRICITY 1.4W X 1.2H
Price
N/A
209
GRIZZLY.COM LABEL
Price
$17.85
210
MODEL NUMBER LABEL
Price
$17.85
211
Oblong Nameplate-Small
Price
N/A
212
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0971 MFD-09.23+ V1.11.23
Price
$22.65
