Item# G0481 Model# G0481

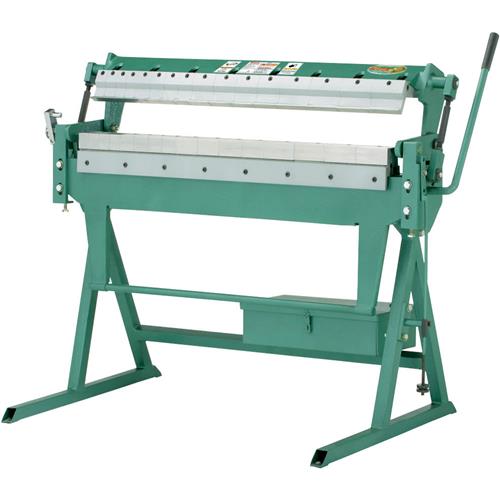

Grizzly G0481 - 42" Swivel Bending Brake

$1,450.00
+$175.00  Freight
+$0.00  Oversize
This 42" Swivel Bending Brake opens wide for complex bends and deeper pans and boxes. Eleven different finger widths can be arranged for a variety of pan and box widths. Includes on-board toolbox, angle gauge, swing-away stop gauge, and full-width hand bar. Box fingers are precision-ground steel with hardened edges for long, dependable service.

Specifications:

  • Maximum working width: 42"
  • Maximum full width sheet metal thickness: 16 Ga. mild steel
  • Maximum clamping beam lift: 4-3/4"
  • Maximum height of pan/box sides: 1-1/2"
  • Maximum bending angle: 0-140°
  • Box bending fingers: 1", 1-3/16", 1-3/8", 1-9/16", 1-3/4", 2", 2-15/16", 3-15/16", 5-15/16", 9-7/8"
  • Overall dimensions: 52" W x 42-1/2" H x 30-3/4" D
  • Approximate shipping weight: 525 lbs.
View More Details
Add to Cart
Available to Ship

Recommended For You

Overview
This 42" Swivel Bending Brake opens wide for complex bends and deeper pans and boxes. Eleven different finger widths can be arranged for a variety of pan and box widths. Includes on-board toolbox, angle gauge, swing-away stop gauge, and full-width hand bar. Box fingers are precision-ground steel with hardened edges for long, dependable service.

Specifications:

  • Maximum working width: 42"
  • Maximum full width sheet metal thickness: 16 Ga. mild steel
  • Maximum clamping beam lift: 4-3/4"
  • Maximum height of pan/box sides: 1-1/2"
  • Maximum bending angle: 0-140°
  • Box bending fingers: 1", 1-3/16", 1-3/8", 1-9/16", 1-3/4", 2", 2-15/16", 3-15/16", 5-15/16", 9-7/8"
  • Overall dimensions: 52" W x 42-1/2" H x 30-3/4" D
  • Approximate shipping weight: 525 lbs.
